Powersafe PP01534 Reduction Sleeve Kit R25 25-95mm2 with Rubber Bushings

Description

One kit for the 25–95mm² span.

The Powersafe PP01534 is a reduction sleeve kit with rubber bushings, listed by the supplier for 25mm² to 95mm² cable. It is used with Powerlock-compatible Powersafe set screw connectors, which are built for 120mm², so that smaller cable can be terminated in the same connector.

Key Features

• Reduction sleeve kit for the 25mm² to 95mm² range

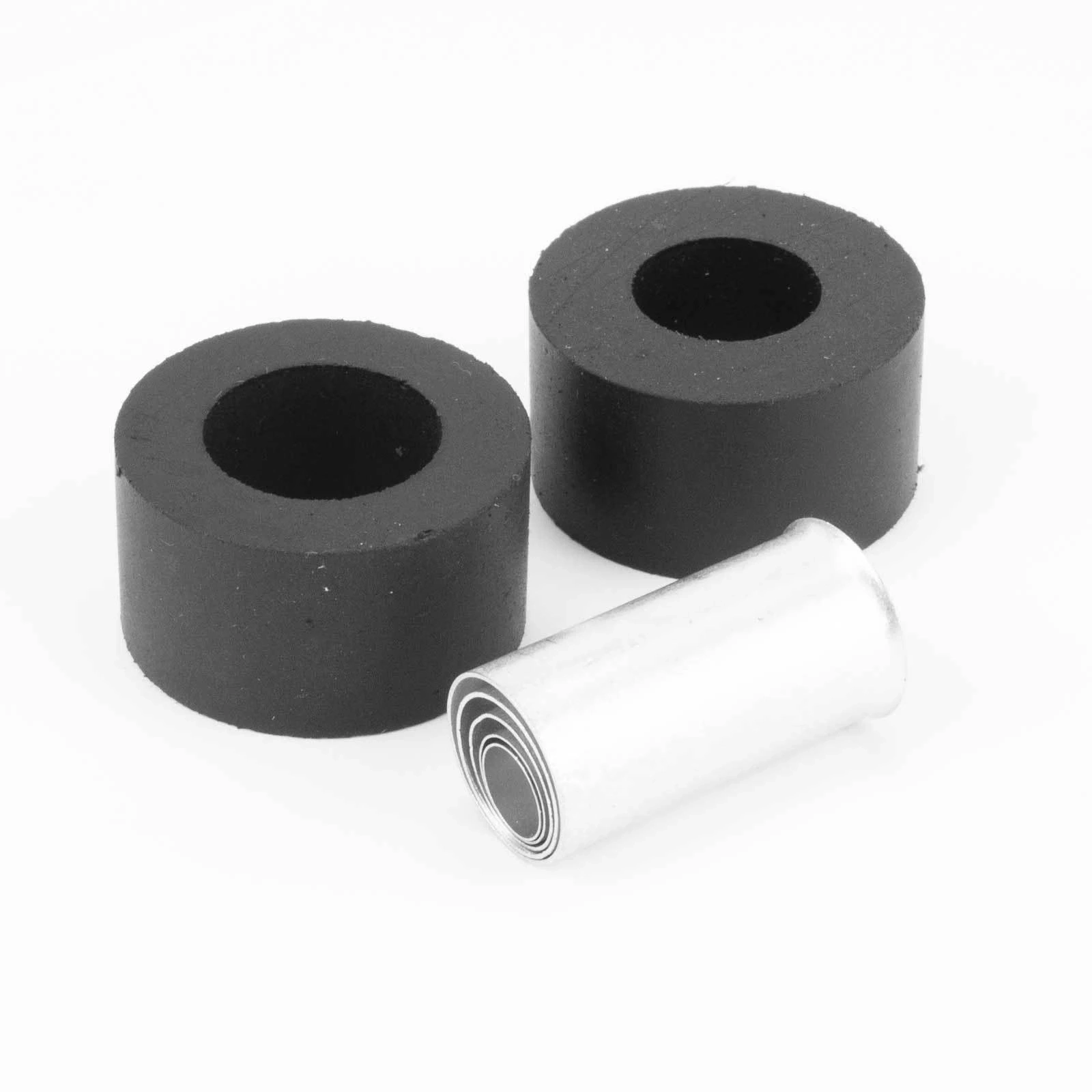

• Comes with rubber bushings
• Made for Powersafe S120 set screw connectors

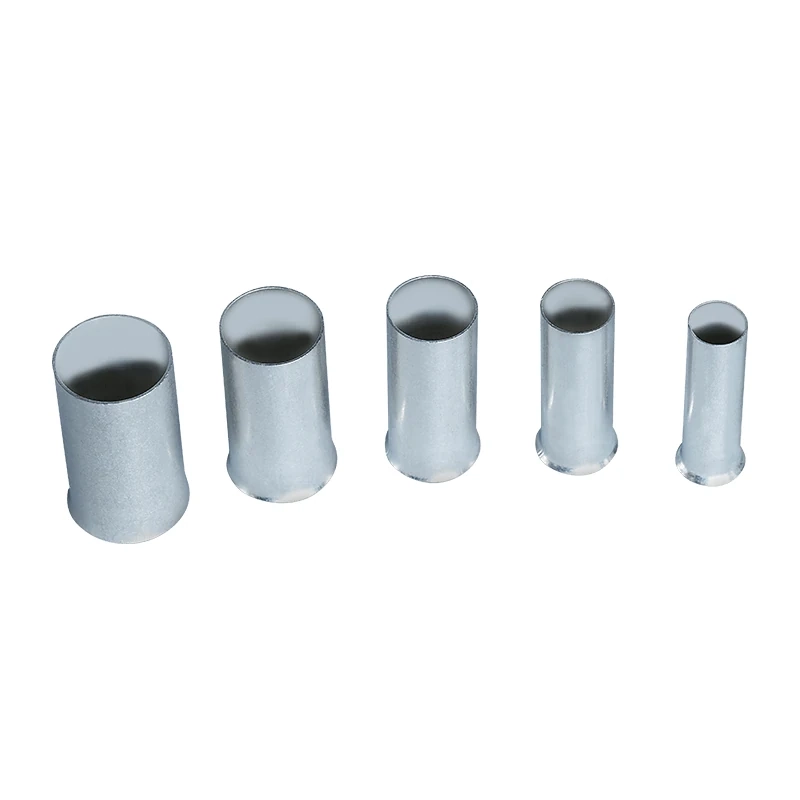

• Guide sleeve sizes R95, R70, R50, R35 and R25
• One strip length, 33mm, across the whole range
• Set screws tightened to 10.5 Nm minimum

Order now and we'll send it anywhere in Australia.

Five Cable Sizes, One Connector

Matching sleeve to cable
In Phase 3's assembly guide every reduced cable size has its own sleeve: R95 for 95mm², R70 for 70mm², R50 for 50mm², R35 for 35mm² and R25 for 25mm². The sleeves shrink the S120 set screw contact's rear cable bucket, letting the set screws grip a conductor smaller than 120mm².

Building up the sleeves

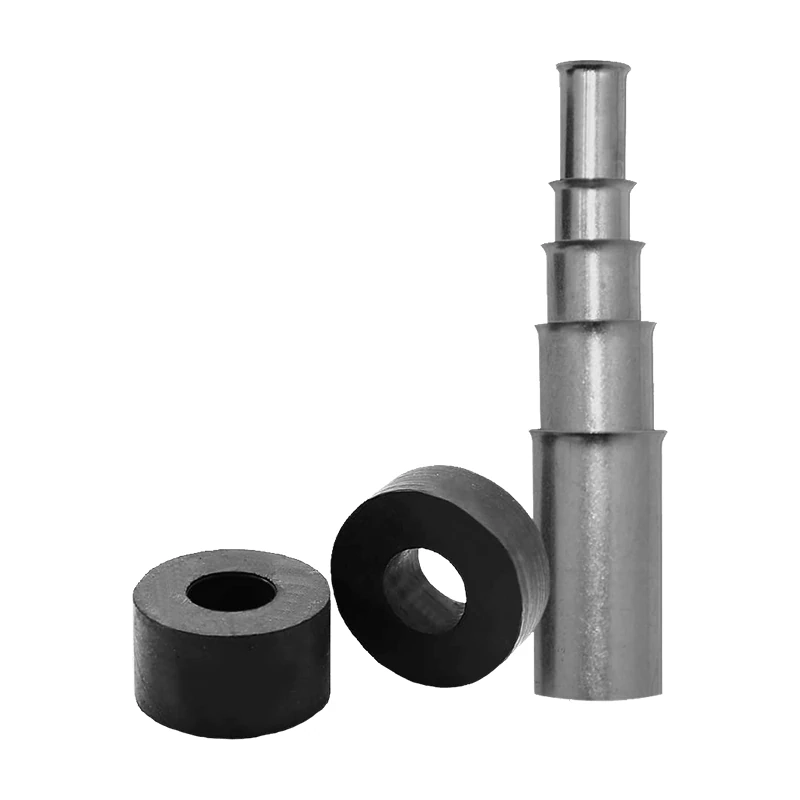

In the guide's table, every reduced cable size starts from R120. The guide requires all sleeves down to the recommended size to be fitted, so a 95mm² cable takes R120 and R95, and a 25mm² cable takes R120 and all five smaller sleeves. Nested together they produce a gradual reduction span, flared ends against the insulation. Check that an R120 sleeve is available, since it starts every sequence in the guide.

Same procedure for every size

• Jacket stripped to 33mm whatever the cable size
• Sleeves slid on in sequence over the stranding
• Cable and sleeves pushed fully into the contact
• Set screws done up using a 5mm Allen bit to 10.5 Nm or above

Termination quality
The recommended assembly procedure, Phase 3 says, is essential if the set screw termination is to be satisfactory. Copper conductors only should be used with its line connectors. Phase 3 also reserves connector installation, inspection and upkeep for qualified electricians, working within local and national electrical codes. For a single cable size, the supplier also lists separate R70, R50, R35 and R25 kits.

Q: What cable sizes does the Powersafe PP01534 cover?
A: 25mm² to 95mm², in Powersafe set screw connectors.

Q: Which sleeve goes with each cable size?
A: R95 for 95mm², R70 for 70mm², R50 for 50mm², R35 for 35mm² and R25 for 25mm², each fitted after R120 and any larger sleeves.

Q: Does the strip length change with cable size?
A: No. Phase 3's guide gives 33mm for every size from 25mm² to 95mm².
