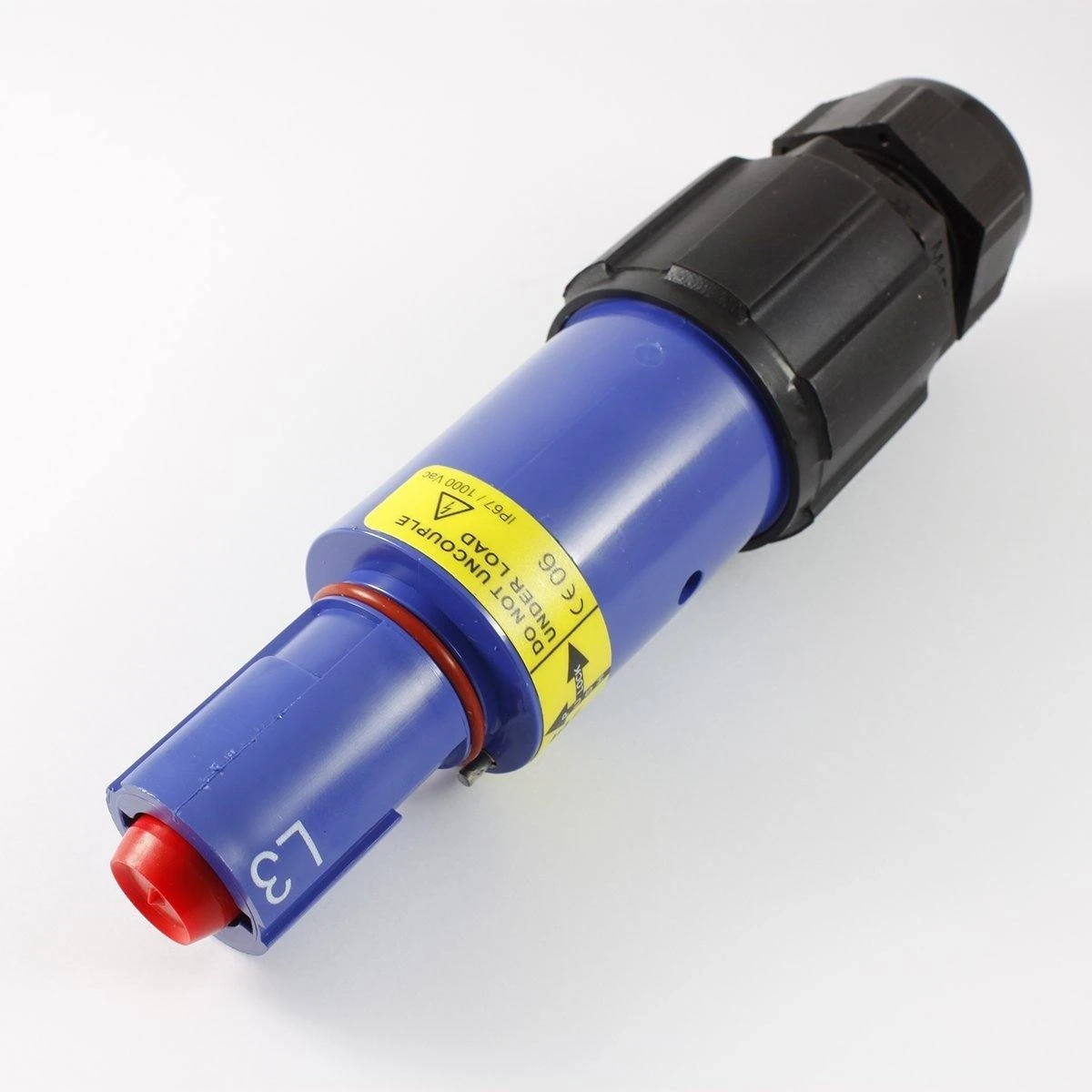

Powersafe SLD0010 Line Drain 500A 120mm2 Set Screw 19-28mm Blue Line 3 IP67

Description

The blue Line 3 drain for Powerlock-style power.

The Powersafe SLD0010 completes the third phase of a Powerlock-compatible single pole run. Its set screw contact accepts 120mm² or 150mm² copper cable, so heavy phase leads can be terminated or re-terminated on site using a hex key rather than hydraulic crimpers.

Key Features

• Line 3 (L3) key position with blue colour coding
• Powerlock-compatible drain: female contact, male insulator
• Rated at 500A
• Set screw contact suits 120mm² and 150mm² copper cable
• M40A cable gland, 19–28mm clamping range
• Operating voltage 1000V AC
• Short circuit rating up to 35.5kA; surge current 75kA
• IP67 protected; uncoupled contact finger-proof to IP2X
• Flame retardant UL94-V0 thermoplastic housing
• Silver plated contact, rated beyond 500 mating cycles

Get yours now with quick dispatch Australia-wide.

Getting Phase 3 Right on Every Hook-Up

Mechanical keying, not guesswork
Powersafe gives every line its own key and colour. The SLD0010 accepts only a Powersafe Line 3 source connector, line or panel format, which rules out crossing L3 with another phase, the neutral or earth during set-up. After it couples, a secondary lock holds it and only a release key will free it, guarding against disconnection while current is flowing.

The receiving end of the circuit
As a drain, this connector typically takes power from the source side and is not normally live once unplugged. The exposed contact is IP2X finger-proof and the body carries an IP67 rating for dust and water, a good match for generator, temporary distribution and cable assembly work in tough conditions.

Set screw termination at a glance

• Strip 33mm from the cable end
• Set screws: 5mm Allen bit, 10.5 Nm or more
• Cable gland body and dome nut: 11 Nm
• Reduction sleeves (sold separately) adapt it to 25–95mm² cable

Suitable for copper conductors only. A licensed electrician should install, inspect and maintain the connector in line with Australian wiring rules.

Q: Is the blue Powersafe SLD0010 a neutral connector?
A: No. It is keyed to the Line 3 (L3) position, so it physically cannot mate with a Powersafe neutral or earth connector, only with an L3 source.

Q: Does the SLD0010 mate with Powerlock gear from other manufacturers?
A: Yes, as long as the key positions match. The manufacturer states Powersafe connectors work with Litton VEAM and ITT Cannon products, 400A and 660A Powerlock, and other Powerlock-style makes.

Q: Can the SLD0010 be used on 95mm² cable?
A: Yes, by fitting Powersafe reduction sleeves, which are sold separately and cover cable from 25mm² up to 95mm². The cable's overall diameter must still suit the M40A gland.
