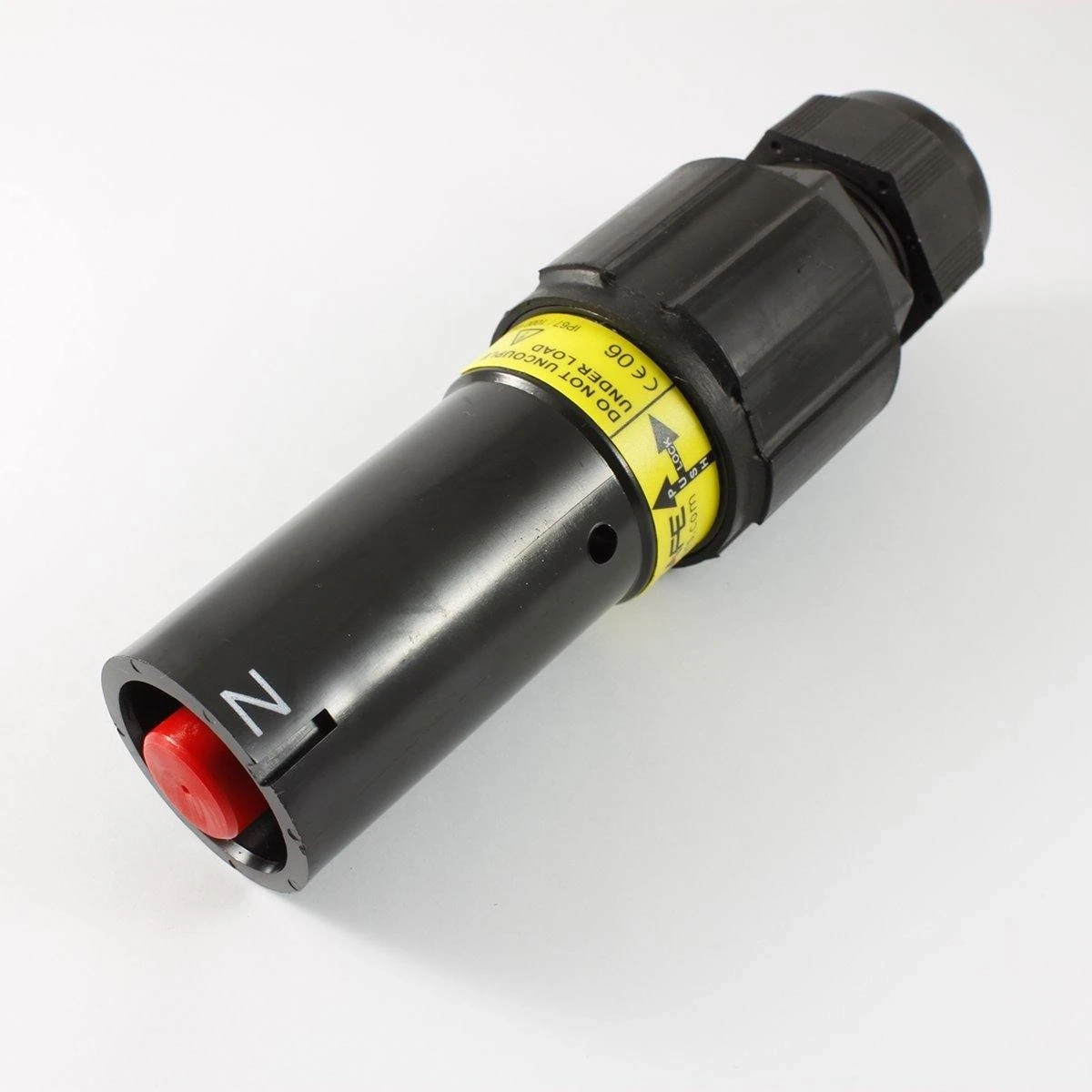

Powersafe SLS0006 Line Source 500A 120mm2 Set Screw 19-28mm Black Neutral IP67

Description

Neutral source connector you can fit on site.

The Powersafe SLS0006 is the black Neutral source in a Powerlock-compatible single pole set. It is the feeding half of the neutral connection, with a male contact shielded by a female insulator and a set screw termination for 120mm² or 150mm² copper cable.

Key Features

• Source gender: male contact in a female insulator
• Black, Neutral (N) key position
• Powerlock-compatible, 500A connector rating
• Set screw termination for 120mm² and 150mm² copper cable
• Gland size M40A, for 19–28mm cable diameter
• 1000V AC operating voltage
• Short circuit rating to 35.5kA, plus 75kA surge current
• IP67 rated, with IP2X finger-proofing when uncoupled
• UL94-V0 flame retardant shell
• Silver plated contact, 500+ mating cycles

Shop now for fast dispatch to sites across Australia.

The Feeding Side of the Neutral

Source gender in practice
In the Powersafe system a source connector is usually the live end, and a drain usually receives the connection. That is why the source's male contact is recessed in a female insulator and finger-proof to IP2X when nothing is plugged in. Matched with its drain, the connection is IP67 rated.

Keyed to neutral
Black appears on more than one line in different Powersafe colour schemes, so rely on the key. The SLS0006 is keyed Neutral: it couples with a Powersafe Neutral drain, cable or panel mounted, and nothing else. On coupling, a secondary lock engages and stays engaged until the release key is used.

No crimp tool needed

• Take 33mm of insulation off the cable
• Use a 5mm Allen bit on the set screws: 10.5 Nm minimum
• Finish with 11 Nm on the gland's body and dome nut
• Add reduction sleeves (sold separately) for cable from 25mm² to 95mm²

Use copper conductors only. Phase 3 specifies installation, inspection and maintenance by qualified electricians only, in accordance with local electrical codes.

Q: Is the Powersafe SLS0006 a source or a drain?
A: A source. Its contact is male, housed in a female insulator, and it is usually the live end of the neutral connection, with the drain as the receiving end.

Q: What does the SLS0006 mate with?
A: Only a Powersafe Neutral drain connector, in line or panel mount format, because of its Neutral key.

Q: Can smaller cable be fitted to the SLS0006?
A: Yes. With Powersafe reduction sleeves, sold separately, the set screw contact takes 25mm² to 95mm² cable. Cable of 15–18mm diameter also needs the PP00131 reduction bush in the gland.
