Powersafe SLD0006 Line Drain 500A 120mm2 Set Screw 19-28mm Black Neutral IP67

Description

500A Powerlock-compatible neutral, keyed and locked.

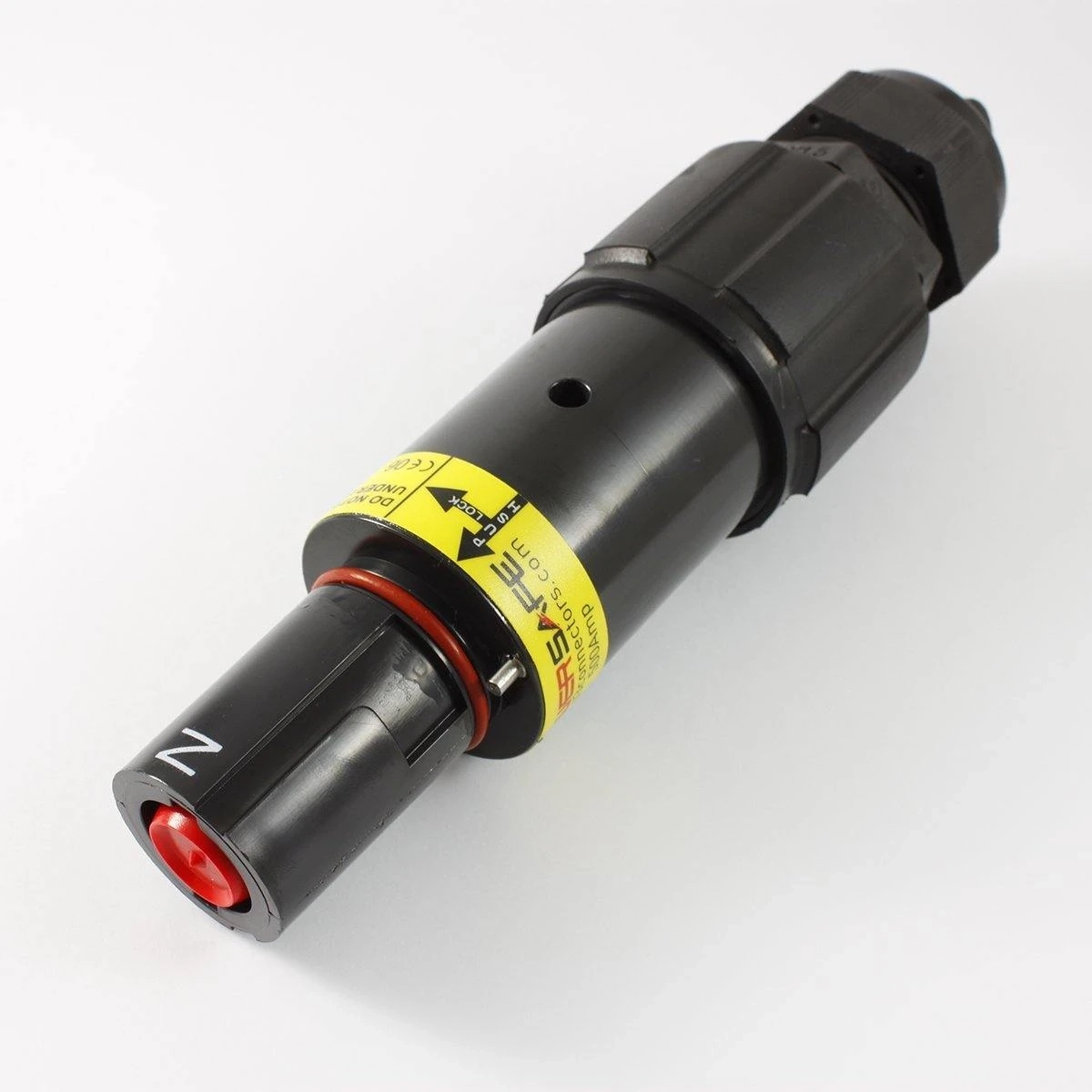

The Powersafe SLD-N-S120-M40A is a black neutral line drain connector for single pole, high-current power circuits. It terminates 120mm² cable on a set screw contact and locks to its matching source so it can't be pulled apart under load.

Key Features

• Line drain (cable-mount) format: female contact, male insulator
• Neutral key position, black colour coding
• 500A current rating, 1000V AC operating voltage
• Set screw termination for 120mm² cable
• M40A gland with 19 - 28mm cable clamping range
• IP67 when mated, IP2X finger-proof when unmated
• Silver-plated contact in a high temperature thermoplastic shell
• Flame retardant materials rated UL94-V0
• Bayonet coupling with key-release secondary locking

Order online now for fast dispatch Australia-wide.

Built for Safe High-Current Connections

Keyed so it can't be mismated
Every Powersafe connector is colour coded and mechanically keyed to its line position. This neutral drain only couples with a neutral-keyed source, so phases and neutral can't be crossed when a temporary system goes together in a hurry. Once coupled, a secondary locking system needs a release key to separate the pair, which stops accidental disconnection under load.

Drain or source: which end is this?
Powersafe connectors come in source and drain formats. The source has a male contact and is usually the live end of the connection. This drain has a female contact and a male insulator, and is usually the end that receives the connection. Finger-proof contacts (IP2X) reduce the risk of touching a live part when the pair is uncoupled.

Straightforward termination
The set screw contact terminates 120mm² copper cable with no special tools required for assembly. The metric M40A gland clamps cable from 19 to 28mm outside diameter and provides integral strain relief. For smaller cable, a Powersafe reducer kit (sold separately) adapts the set screw contact to 95, 70, 50, 35 or 25mm².

Phase 3 manufactures and assembles Powersafe connectors in the UK to ISO 9001:2015 quality standards. They are used across the power distribution, events, military and cable assembly industries worldwide.

Q: Is the Powersafe SLD-N-S120-M40A compatible with Powerlock connectors?
A: Yes. It uses the Powerlock mating system and is cross-referenced to ITT VEAM Powerlock part NLDFT-N-BK-L-S120-M40A. Being neutral-keyed, it only mates with a neutral source connector.

Q: What cable size does this neutral line drain connector take?
A: The set screw contact is sized for 120mm² cable with an outside diameter of 19 to 28mm. Most flexible 150mm² cable also fits if its insulation OD is under the 28mm gland maximum, and reducer kits cover 25 to 95mm².

Q: Is the connector sealed when it's disconnected?
A: It is rated IP67 only when mated. Unmated it is finger-proof to IP2X but not sealed, so fit an optional Powersafe protective cap to keep out moisture and dirt.
