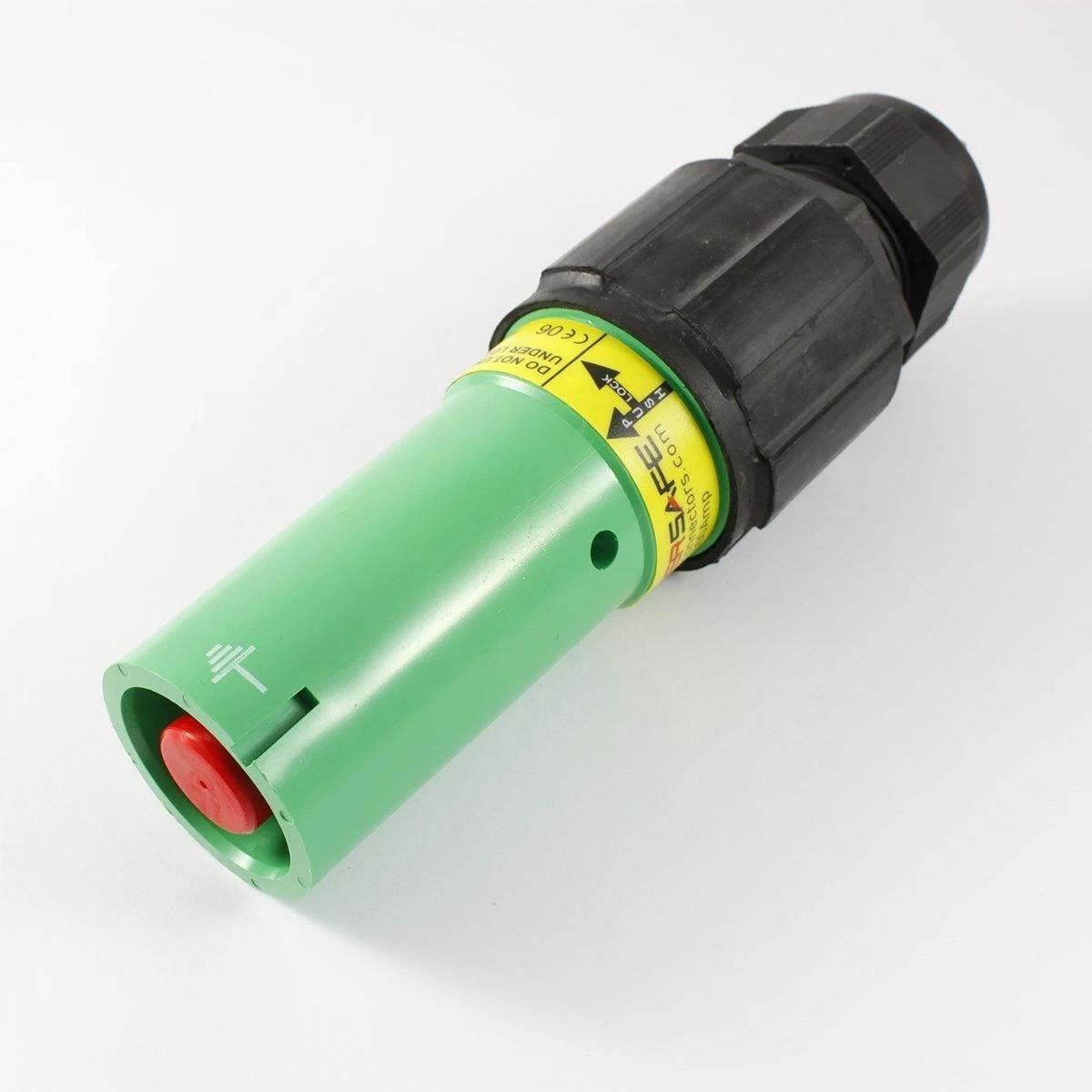

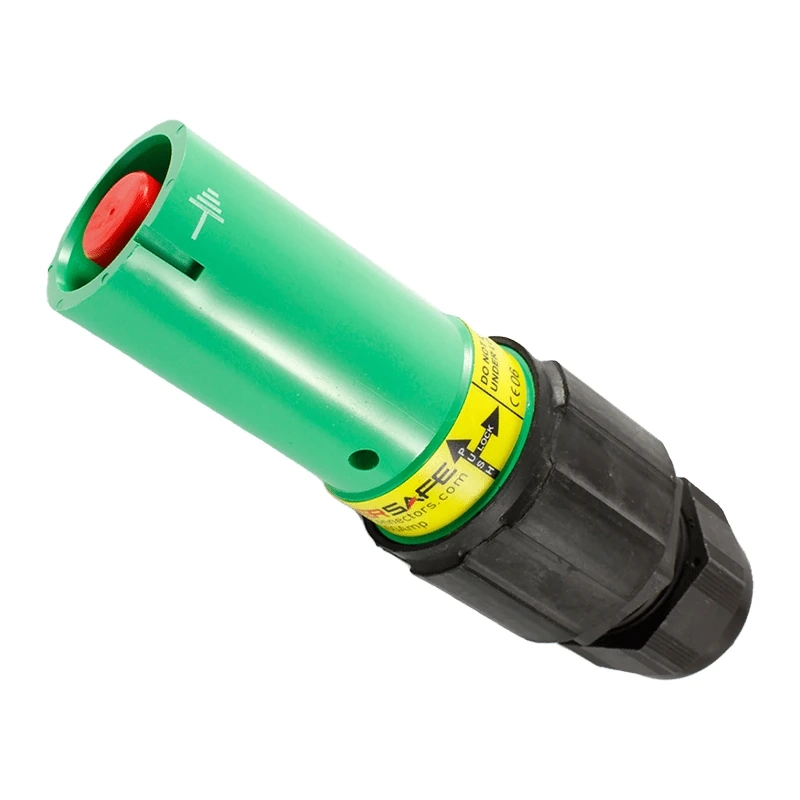

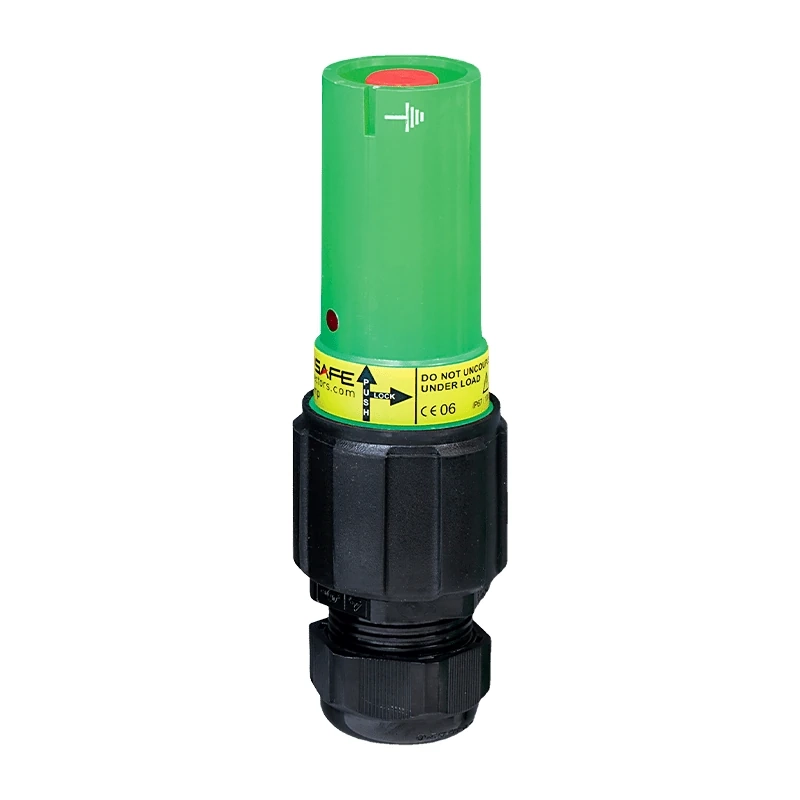

Powersafe SLS0005 Line Source 500A 120mm2 Set Screw 19-28mm Green Earth IP67

Description

The supply-side earth, field terminated.

The Powersafe SLS0005 is the Earth source connector in a Powerlock-compatible single pole system: the half that normally feeds the connection. Its male contact sits inside a finger-proof female insulator, and a set screw termination takes 120mm² or 150mm² copper cable.

Key Features

• Line source: male contact, female insulator
• Earth (E) keyed and colour coded green
• 500A Powerlock-compatible connector
• Set screw contact accepting 120mm² and 150mm² copper cable
• M40A gland for cable 19–28mm in diameter
• 1000V AC operating voltage
• 35.5kA short circuit rating (maximum) and 75kA surge current
• IP2X finger-proof uncoupled, IP67 rated
• High temperature thermoplastic shell, UL94-V0
• Silver plated contact; over 500 mating cycles

Order now and have it on its way anywhere in Australia.

Why the Source End Is Built This Way

Source and drain, explained
Powersafe connectors come in two genders. Source connectors are usually the live end of the connection and have a male contact within a female insulator. Drain connectors are the opposite and usually receive the connection. Because the source end may be energised while unplugged, its IP2X finger-proof protection against electric shock matters most here.

What it mates with
The SLS0005 is keyed to Earth. It couples only with a Powersafe Earth drain, either a line drain on a cable or a panel drain, after which the secondary lock keeps them together until freed with the release key. Mated, the connection is rated IP67.

Set screw assembly

• Cable insulation stripped back 33mm
• Set screws tightened with a 5mm Allen bit, 10.5 Nm minimum
• 11 Nm applied to the cable gland body and dome nut
• Reduction sleeves, sold separately, for 25mm² to 95mm² cable

Copper conductors only. The manufacturer requires installation, inspection and maintenance by qualified electricians; in Australia, follow the wiring rules.

Q: What is the difference between a Powersafe source and drain?
A: A source has a male contact in a female insulator and is usually the live end. A drain has a female contact in a male insulator and usually receives the connection. The SLS0005 is a source.

Q: Which connector does the SLS0005 plug into?
A: A Powersafe Earth drain connector, line or panel mount. The Earth key prevents it mating with a phase or neutral.

Q: Does the SLS0005 accept 150mm² cable?
A: Yes, the set screw contact covers 120mm² and 150mm² copper cable, as long as the cable's outside diameter is within the M40A gland's 19–28mm range.
