Powersafe SPD0016 Panel Drain 800A Black Neutral

Description

Black Neutral drain at 800A.

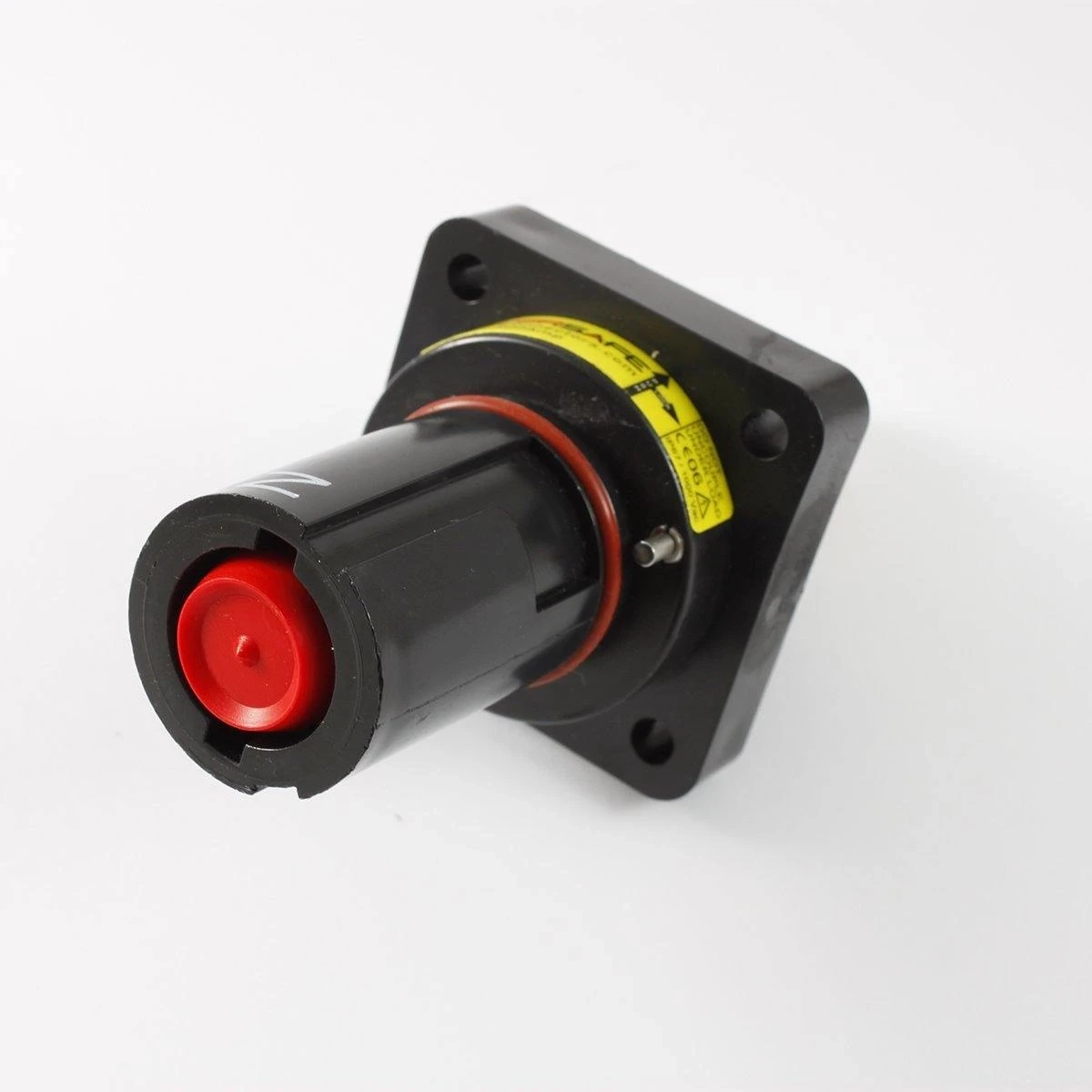

The Powersafe SPD0016 puts the Neutral on the panel at the T8 rating of 800A. It is a Powerlock-compatible drain in black, built around a silver plated copper contact, and a standard cable lug bolts to its M12 threaded post.

Key Features

• Black panel drain with the Neutral (N) key
• Powerlock-compatible T8 version, rated 800A
• Silver plated copper contact
• Termination by M12 threaded post and cable lug
• Flange mounted on four fixing holes
• Gasket seals the flange to the panel
• Assembled on delivery, with M12 nut and spring washer
• 1000V AC operating; surge current of 75kA
• 35.5kA is the top short circuit rating
• IP67 mated, finger-proof IP2X, UL94-V0 insulator

Order today for prompt delivery Australia-wide.

Neutral at the Higher Rating

One key, one colour
On the SPD0016 the Neutral key decides what goes in: a Powersafe Neutral source fits, and Earth or line connectors do not. Black identifies the Neutral at a glance. Mating is by bayonet lock, and the secondary lock that follows stays engaged until the release key frees it.

The 800A socket construction
According to Phase 3, its 800A sockets are manufactured using copper with silver plating, where the lower-rated T5 sockets use brass. The insulator is a high impact, flame retardant type with no glass in it, rated UL94-V0.

On the panel and behind it

• Fix through the four holes in the flange
• Or fit M6 threaded inserts for front or rear fixing
• Lug the cable to the M12 post; 12–14 Nm is the limit

Because the connector ships assembled, with its gasket, post, nut and spring washer in place, Phase 3 treats it as ready for direct mounting to equipment, with no special tools for field installation. The guide's upkeep items for a drain are the front O-ring, which should be inspected and given a film of silicone grease from time to time, and the secondary locking pin, which must spring back freely. Use a qualified electrician and follow local and national electrical codes.

Q: Which conductor is the Powersafe SPD0016 for?
A: The Neutral. It is the black Neutral panel drain, and only a Powersafe Neutral line source mates with it.

Q: Does the SPD0016 need a special lug?
A: No. Phase 3 specifies a standard cable lug, which fits over the M12 thread.

Q: What does T8 mean on the SPD0016?
A: T8 marks the 800A panel version, which has a copper contact with silver plating.
