Powersafe SPS0001 Panel Source 500A Green Earth

Description

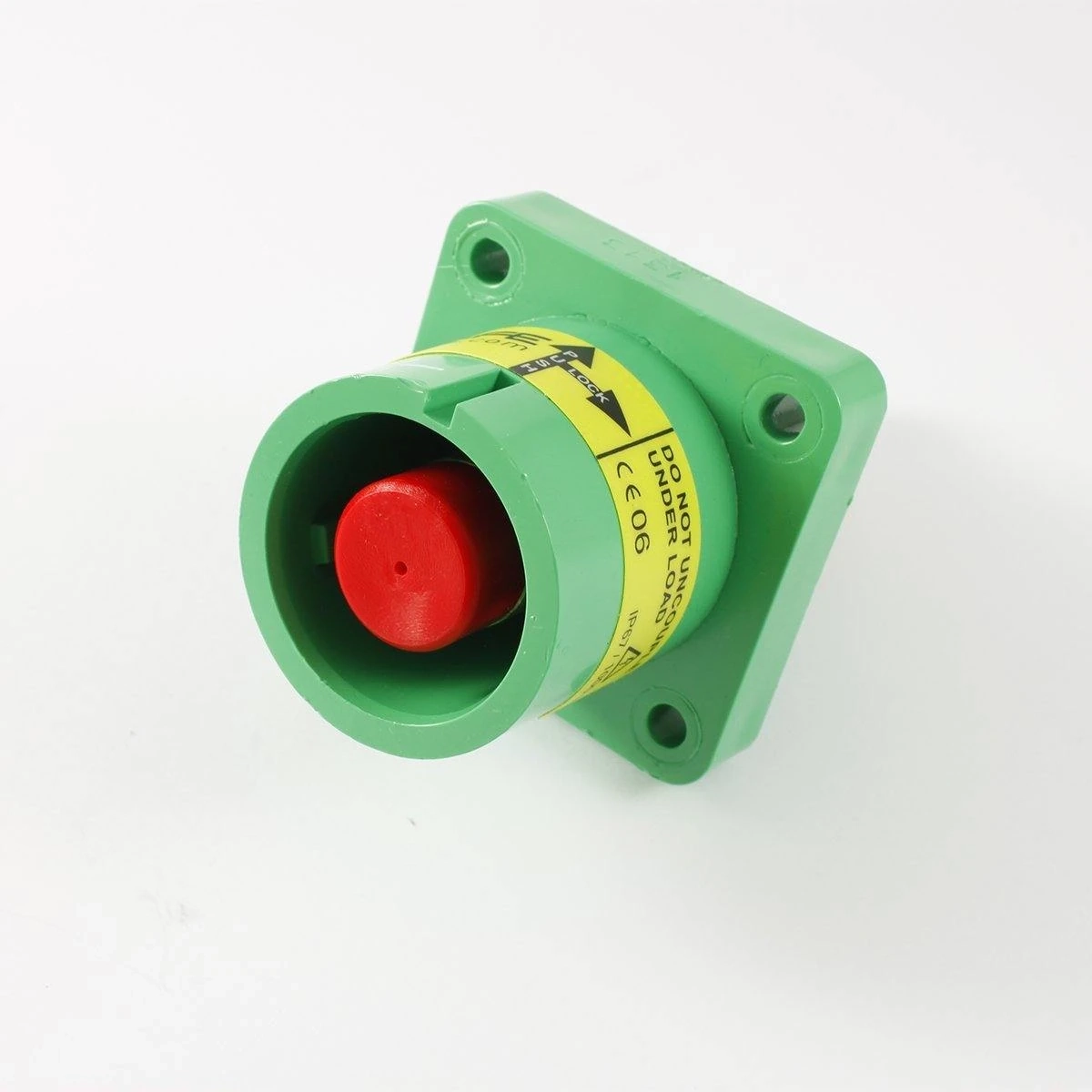

The panel-side Earth outlet.

The Powersafe SPS0001 is a green Earth panel source: a Powerlock-compatible connector with a male contact inside a female insulator, fixed to equipment by its flange. It is the T5 version, rated 500A, and is wired on an M12 threaded post.

Key Features

• Panel source connector with Earth (E) key, green
• Male contact housed in a female insulator
• 500A T5 rating, Powerlock-compatible
• Brass contact, silver plated

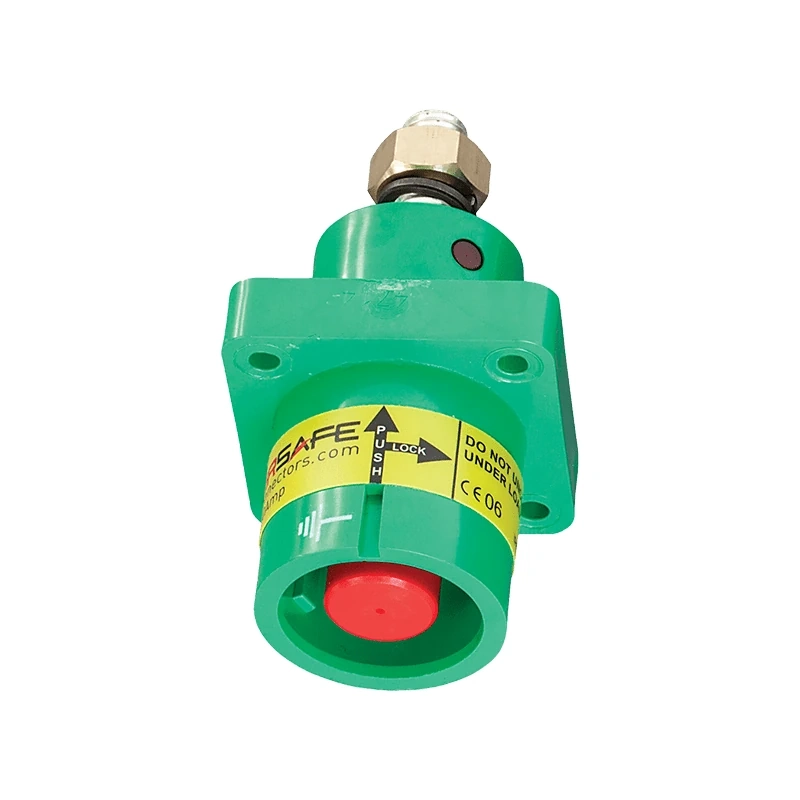

• Standard cable lug terminates on an M12 threaded post
• Flange with 4 fixing holes and a panel gasket
• Fully assembled; spring washer and M12 nut on the post
• 1000V AC operating voltage; 35.5kA short circuit maximum
• IP67 when mated and IP2X finger-proof unmated
• UL94-V0 flame retardant, high impact insulator

Order now for fast delivery Australia-wide.

Source Versus Drain on a Panel

Which gender this is
Powersafe connectors are made as sources and drains. In Phase 3's terms a source pairs a male contact with a female insulator and usually forms the live end; a drain is the reverse and usually receives the connection. The SPS0001 is the source form for panel mounting, so the part that plugs into it is a Powersafe Earth line drain.

Protected while unmated
Because a source is usually the live end, its IP2X rating counts: the connector is finger-proof when unmated. Mated, the pair is IP67. The Earth key stops line and neutral drains from entering, and the secondary lock holds a mated drain until the release key is used.

Panel details from Phase 3

• 500A sockets: brass with silver plating
• Mounted through four fixing holes on the flange
• M6 threaded inserts possible, for front or rear fixing
• Gasket supplied for watertight securing

Termination follows the Phase 3 assembly guide for panel connectors. Remove the nut and washer from the threaded post, fit the cable lug over the thread, then refit both and tighten to no more than 12–14 Nm. Phase 3 says no special tools are needed for field installation. Leave the work to a qualified electrician, who will work to the local and national electrical codes.

Q: What connects to the Powersafe SPS0001?
A: A Powersafe Earth line drain. The Earth key will not admit a drain keyed for neutral or a phase.

Q: What gender is the SPS0001?
A: Source. It has a male contact in a female insulator, the form Phase 3 uses for what is usually the live end.

Q: Is the SPS0001 safe to touch when unmated?
A: Unmated, it is rated IP2X, which is finger-proof protection against electric shock. Installation and maintenance remain work for qualified electricians.
