Powersafe SPD0007 Panel Drain 500A Red Line 1

Description

Line 1 inlet for panels and switchgear.

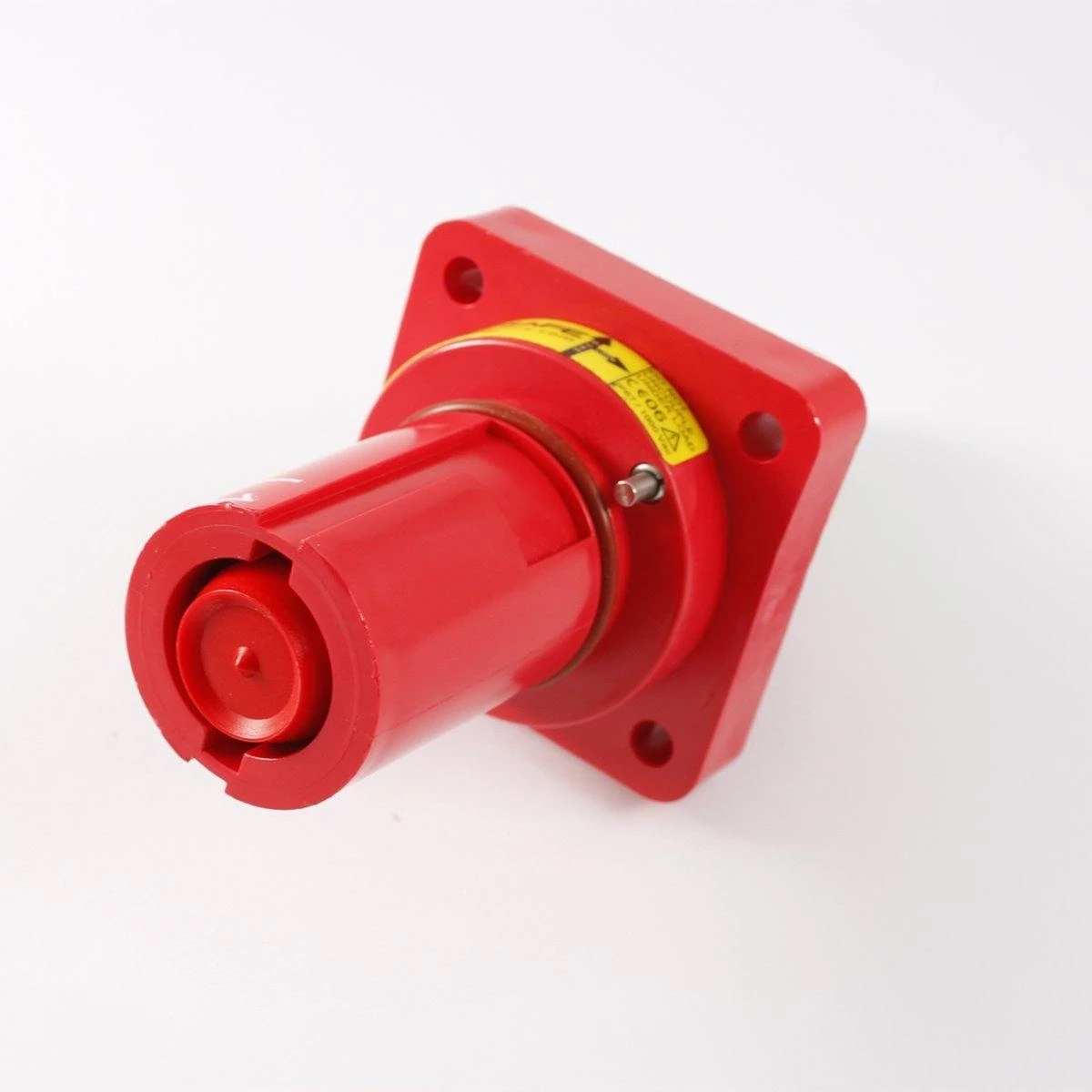

The Powersafe SPD0007 is the red Line 1 panel drain. It gives equipment a fixed, Powerlock-compatible 500A (T5) socket for the first phase: flange mounted, gasket sealed and terminated at the rear on an M12 threaded post.

Key Features

• Red panel drain keyed to Line 1 (L1)
• Powerlock-compatible; 500A (T5) rating
• Flange with 4 fixing holes
• Rear M12 threaded post for a standard cable lug
• Gasket gives a watertight fit to the panel
• Supplied assembled, with M12 nut and spring washer
• Electrical rating: 1000V AC operating voltage, 75kA surge current
• Short circuit rated, up to 35.5kA
• Protected to IP67, with IP2X finger-proofing
• UL94-V0 flame retardant, high impact insulator

Buy online for fast shipping anywhere in Australia.

Phase Connections That Cannot Be Crossed

One key per line
On a panel carrying five Powersafe sockets, each one is colour coded and mechanically keyed. The SPD0007 is the Line 1 position. Only a Powersafe L1 line source will enter it, so an incoming set of leads cannot be landed out of sequence. The mated pair is held by a secondary lock and separated with a release key.

Fitting it to the panel
Phase 3 supplies the connector fully assembled and ready for direct mounting. Four holes in the flange take the fixings and a gasket seals the joint to the panel; M6 threaded inserts are an alternative when front or rear fixing is wanted. Field installation needs no special tools, according to Phase 3.

Connecting at the rear

• Undo the M12 nut and remove the spring washer
• Slide your cable lug or terminal onto the threaded post
• Replace washer and nut; 12–14 Nm is the maximum torque

Drain connectors have a front O-ring and a spring-loaded locking pin, both of which Phase 3 says to check periodically. Installation and maintenance should be carried out by qualified electricians, with local and national electrical codes observed throughout.

Q: What is the Powersafe SPD0007 used for?
A: It is a panel mount socket for Line 1. Phase 3 names switchgear, power distribution boxes, generators, batteries and busbars as the equipment its panel mounts are fitted to.

Q: Which lead connector fits the SPD0007?
A: A Powersafe Line 1 line source. The L1 key rejects every other line.

Q: What torque is used on the SPD0007 terminal post?
A: A maximum of 12–14 Nm on the M12 nut, per Phase 3's assembly guide.
