Powersafe SPD0006 Panel Drain 500A Black Neutral

Description

The neutral socket for your panel.

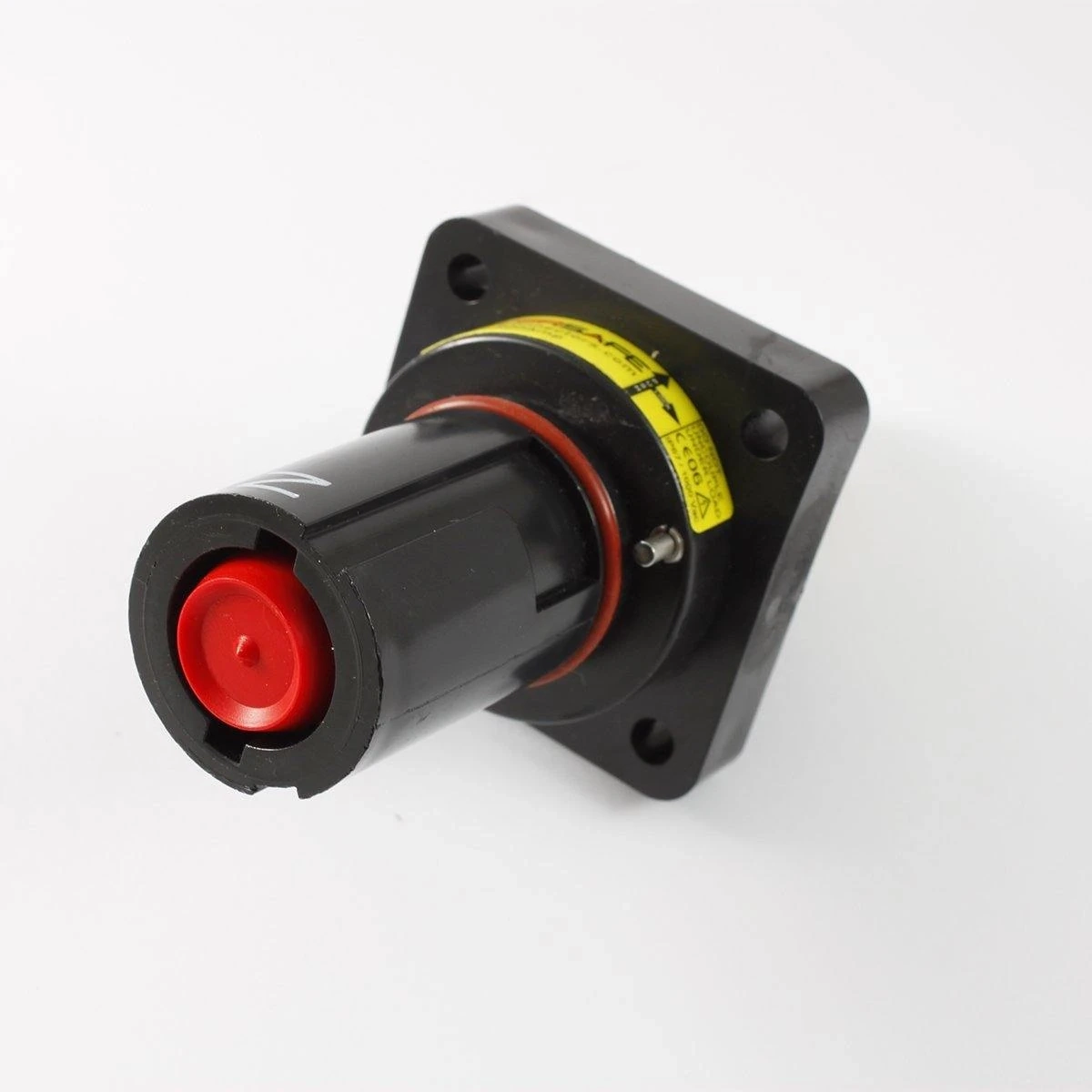

The Powersafe SPD0006 is a black Neutral panel drain, a Powerlock-compatible socket that fixes to equipment and accepts a Neutral line source. This 500A (T5) connector mounts through four flange holes and is wired on an M12 threaded post with a standard cable lug.

Key Features

• Neutral (N) keyed panel drain, black
• 500A (T5), Powerlock-compatible single pole
• Mounted through 4 fixing holes on the flange
• M12 threaded post termination for a standard cable lug
• Comes assembled with gasket, M12 nut and spring washer
• Operating voltage: 1000V AC
• 75kA surge current, and a short circuit rating to 35.5kA
• Waterproof and dustproof to IP67, finger-proof to IP2X
• Flame retardant, high impact insulator to UL94-V0
• Over 500 mating cycles

Shop now for quick delivery across Australia.

A Fixed Neutral Point You Can Rely On

Where a panel drain is used
Phase 3 lists the equipment its panel mounts are made for: generators, batteries and busbars, plus switchgear and power distribution boxes. As a drain, the SPD0006 is the half that a Neutral line source connector plugs into. Its Neutral key refuses an earth or phase connector, and since Powersafe's other colour schemes put black on a phase, the key is the thing to check.

Mounting and sealing
The standard connector is mounted to a panel through four fixing holes on its flange, with the supplied gasket giving a watertight seal against the panel. Where bolts through the panel do not suit, M6 threaded inserts can be fitted to the flange holes, allowing fixing from the front or the rear.

Termination behind the panel

• Take off the M12 nut and spring washer
• Place a standard cable lug, or other accessory, on the threaded post
• Refit and tighten to no more than 12–14 Nm

Once a source is mated, a secondary lock engages and the release key is needed to uncouple it. Phase 3 recommends periodic checks of the drain's front O-ring and locking pin. Fitting and maintenance are jobs for qualified electricians, done under local and national electrical codes.

Q: How does the Powersafe SPD0006 fix to a panel?
A: Through four fixing holes on its flange, sealed by a gasket. Those holes also accept M6 threaded inserts if you need to fix from the front or rear.

Q: What comes with the SPD0006?
A: It is supplied fully assembled with its gasket, M12 threaded post, M12 nut and spring washer.

Q: Which connector mates with the SPD0006?
A: A Powersafe Neutral line source connector. Phase 3 also states compatibility with Litton VEAM and ITT Cannon Powerlock-type connectors.
