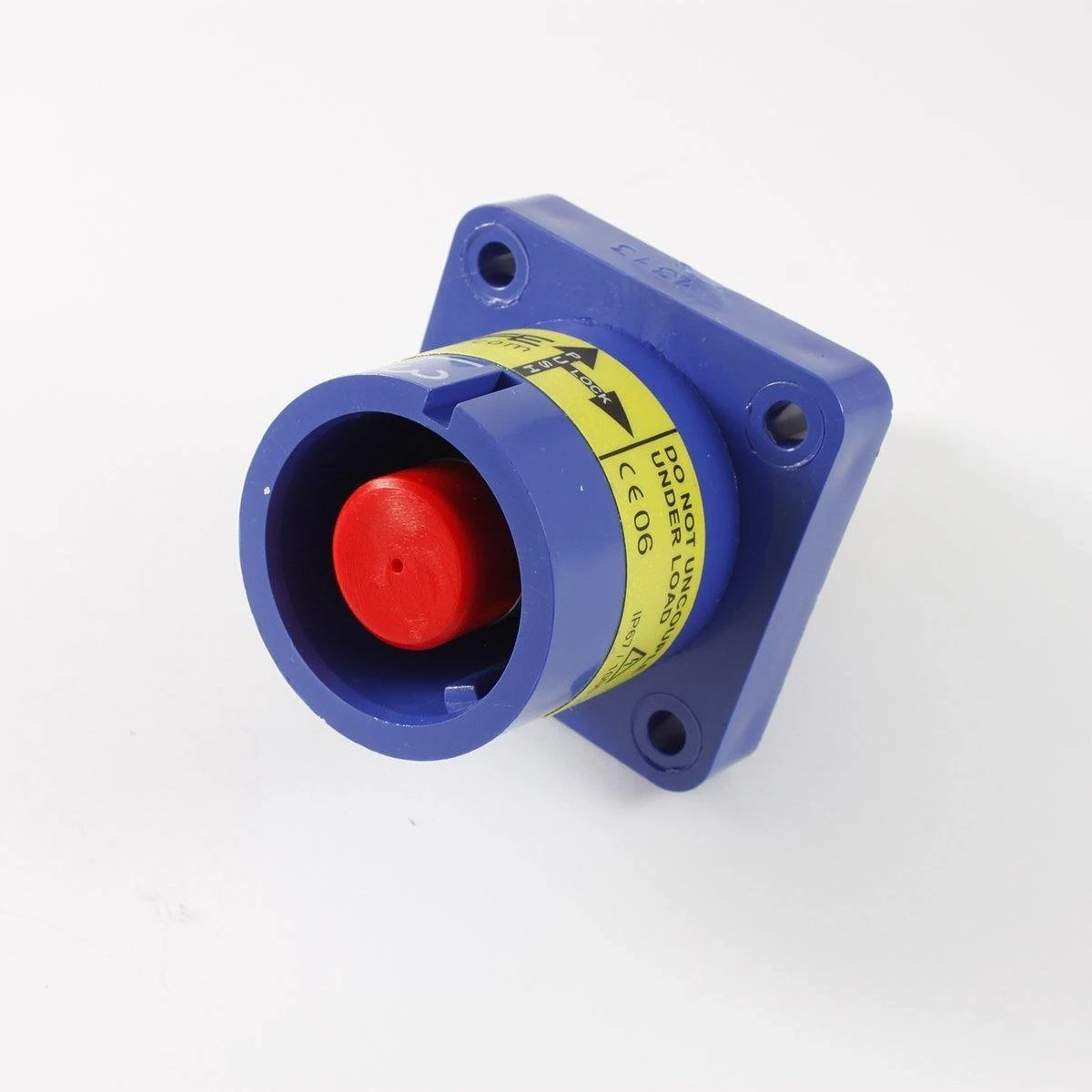

Powersafe SPS0009 Panel Source 500A Blue Line 3

Description

Blue Line 3 source, built into the panel.

The Powersafe SPS0009 completes the 500A panel sources as the blue Line 3 connector. It is a Powerlock-compatible T5 source with its male contact in a female insulator, mounted by a gasketed flange and cabled through an M12 threaded post.

Key Features

• Line 3 (L3) key, blue panel source
• Male contact, female insulator: source gender
• 500A, T5 version, Powerlock-compatible
• Silver plated contact in brass
• M12 threaded post to suit a standard cable lug
• Four-hole flange; gasket seals it watertight
• Assembled at the factory with nut and spring washer
• Designed to operate at 1000V AC
• Surge 75kA; short circuit rated to a maximum of 35.5kA
• IP67 mated, IP2X unmated, UL94-V0 insulator

Order today and we'll ship it anywhere in Australia.

Third Phase From a Fixed Source

Keyed to Line 3 drains
Its L3 key means the SPS0009 accepts a Powersafe Line 3 line drain and blocks drains for every other position. Blue identifies Line 3 on the panel. After the bayonet turn, the secondary lock keeps the drain in place; it comes free only with the release key.

The source end
Phase 3 describes sources as usually the live end, and drains as usually receiving. Unmated, the SPS0009 offers IP2X finger-proof protection against electric shock, and once a drain is locked in, the pair is rated IP67 under EN 60529.

Steps to fit

• Use the four flange holes, gasket against the panel
• Fit M6 threaded inserts if fixing from front or rear
• Put the cable lug over the M12 thread
• Washer and nut back on, tightened to 12–14 Nm maximum

The contact is silver plated brass, which Phase 3 specifies for its 500A sockets, and the high impact insulator is flame retardant with no glass content. Because the connector is supplied fully assembled, it is ready for direct mounting to equipment, and Phase 3 notes field installation needs no special tools. Installing and looking after it is a job for a qualified electrician, observing local and national electrical codes.

Q: Which line does the Powersafe SPS0009 carry?
A: Line 3. It is blue, keyed L3, and mates with a Powersafe Line 3 line drain.

Q: What rating is the SPS0009?
A: 500A, in the T5 panel version, with a 1000V AC operating voltage.

Q: Does the SPS0009 need special tools to fit?
A: No. Phase 3 says field installation needs no special tools, and the post nut is tightened to 12–14 Nm maximum.
