Powersafe SPS0010 Panel Source 500A White Line 2

Description

White source for the second phase.

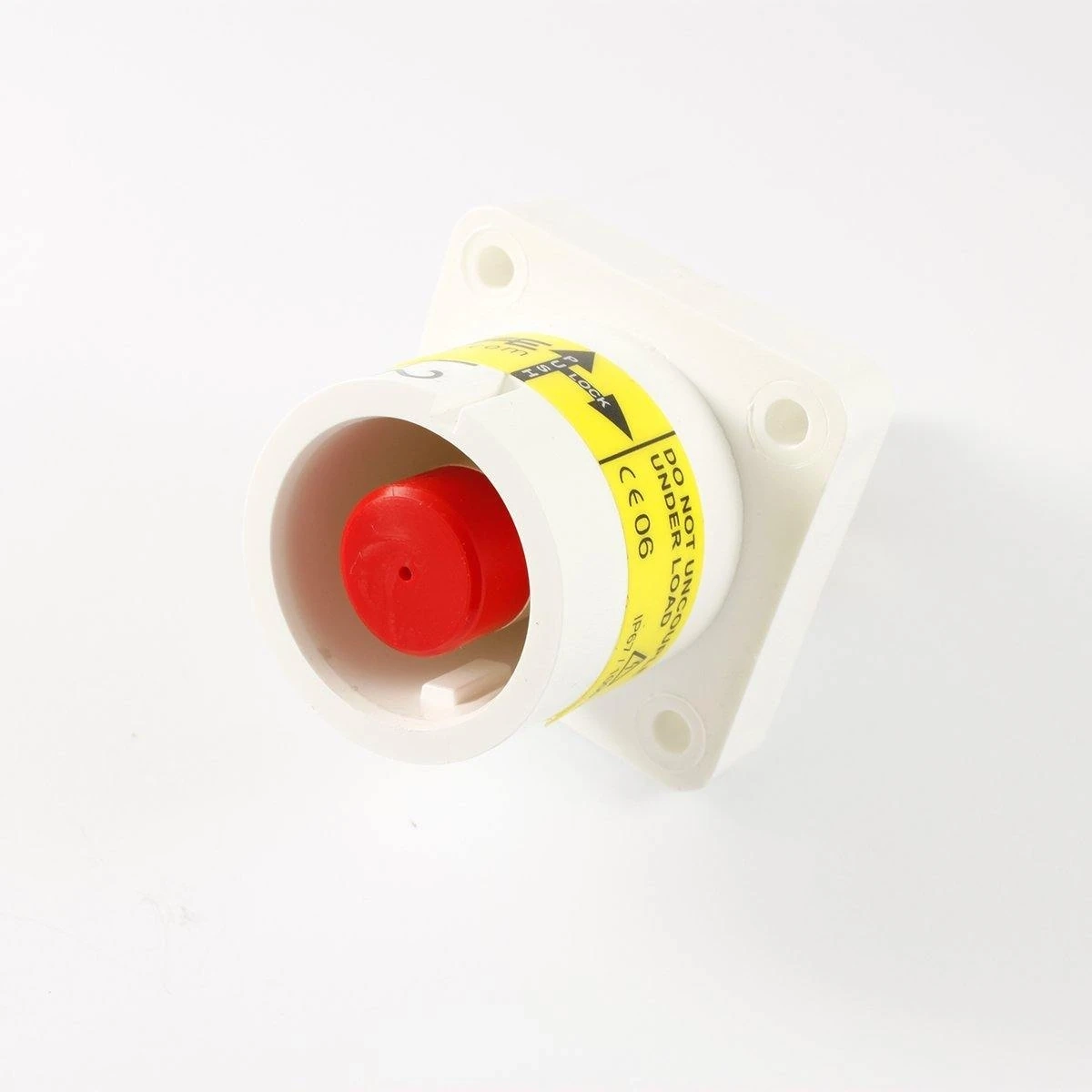

The Powersafe SPS0010 is the Line 2 source made for panel mounting. White and L2 keyed, this Powerlock-compatible T5 connector carries a 500A rating, holds its male contact inside a female insulator, and is cabled by lug to an M12 threaded post.

Key Features

• White panel source, keyed for Line 2 (L2)
• Source gender, with the male contact inside
• Powerlock-compatible T5, 500A rating
• Contact of brass, plated with silver
• Lug termination at the M12 threaded post
• Panel fixing via four holes in the flange
• Flange gasket for a watertight seal
• Ready assembled, with the M12 nut and spring washer
• 75kA surge current; 1000V AC operating voltage
• Finger-proof IP2X open, IP67 once mated

Grab yours today, delivered to your door in Australia.

Second Phase, Source Side

A dedicated L2 outlet
Only a Powersafe Line 2 line drain will mate with the SPS0010; the L2 key turns away drains for Earth, Neutral and the other phases. White picks out Line 2 on the panel. A bayonet action joins the two, and secondary locking stops the drain coming away until the release key is used.

Why the gender matters
Sources in the Powersafe range normally form the live end of a connection, with drains on the receiving side. The SPS0010 has IP2X finger-proof protection against electric shock when unmated and reaches IP67 when mated. Short circuit rating for the range is up to 35.5kA.

Mounting it

• Four holes through the flange take the panel fixings
• Optional M6 threaded inserts give front or rear fixing
• The gasket goes between flange and panel
• Lug on the M12 post, nut tightened to 12–14 Nm maximum

Phase 3 makes its 500A sockets from brass with silver plating and its insulators from a high impact, flame retardant material rated UL94-V0, with no glass. The connector arrives fully assembled for direct mounting, and no special tools are needed to install it in the field, says Phase 3. Have a qualified electrician carry out installation and maintenance, complying with local and national electrical codes.

Q: What is the Powersafe SPS0010?
A: The white Line 2 panel source, 500A (T5). It mates with a Powersafe Line 2 line drain.

Q: How is the SPS0010 mounted?
A: By its flange, which has four fixing holes, with a gasket against the panel. M6 threaded inserts are an option for front or rear fixing.

Q: Is the SPS0010 finger-proof?
A: Yes. It is rated IP2X when unmated, and IP67 when mated.
