Powersafe SLD0052 Line Drain 500A 185mm2 Crimp 22-32mm White Line 2 IP67

Description

Line 2 drain, crimped for heavy 185mm² cable.

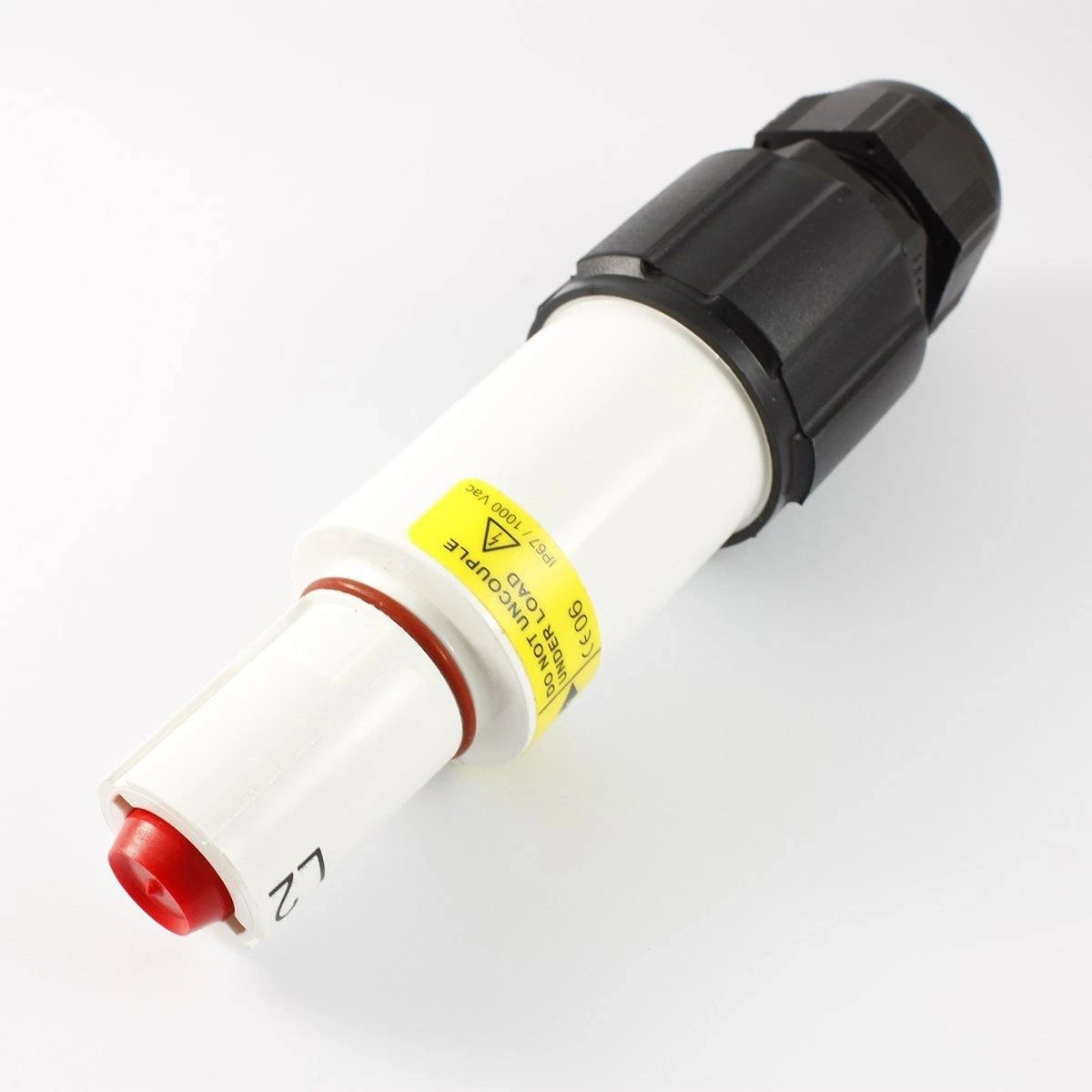

The Powersafe SLD0052 is the white Line 2 drain in a Powerlock-compatible single pole set, sized for 185mm² copper cable. Hydraulic crimping gives a permanent contact termination for heavy-gauge phase conductors in temporary three phase power runs.

Key Features

• White colour coding, Line 2 (L2) key position
• Drain format: female contact inside a male insulator, Powerlock-compatible
• Rated 500A
• 185mm² copper cable, crimp termination
• 22–32mm cable clamping with the M40B gland
• 1000V AC operating voltage rating
• Up to 35.5kA short circuit, 75kA surge
• Sealed to IP67, contact finger-proof to IP2X when unmated
• High temperature UL94-V0 thermoplastic insulator
• Silver plated contact good for more than 500 mating cycles

Add to cart now for prompt dispatch nationwide.

Keeping the Middle Phase Where It Belongs

Keyed for L2 only
Every Powersafe line has a dedicated mechanical key. The SLD0052 couples only with a Powersafe Line 2 source connector, in line or panel version, so L2 cannot be confused with L1, L3, neutral or earth when a set goes together. Once engaged, a secondary lock keeps it mated until a release key is used, so it cannot be separated accidentally under load.

Crimp termination for 185mm²
Phase 3 calls for a hexagonal die set in a hydraulic tool on its crimp contacts, with three evenly spaced crimps on the 185mm² barrel to achieve the maximum crimped surface area. As the drain, this end normally receives power and is not live when disconnected; the uncoupled contact is IP2X finger-proof and the body is rated IP67.

Termination steps

• Expose 43mm of conductor
• Crimp with the ME 37 die in an HT 131-C or B 131-C hydraulic tool
• Apply three crimps at equal spacing along the contact barrel
• Do up the gland's dome nut and body to 11 Nm

For copper conductors only. Have a licensed electrician fit, inspect and maintain the connector under Australian wiring rules, and tensile test the crimp to confirm the termination.

Q: What does the white colour mean on the Powersafe SLD0052?
A: The SLD0052 is keyed to Line 2 (L2) and colour coded white. Mating is controlled by the key, so it will only connect to a Powersafe L2 source connector.

Q: Which crimp tooling suits the SLD0052?
A: For 185mm² cable the manufacturer lists the ME 37 hexagonal die, used in the HT 131-C manual hydraulic tool or the 14.4V B 131-C cordless model, applying three crimps per contact.

Q: Does the SLD0052 work with non-Powersafe Powerlock connectors?
A: Yes, when the key positions line up. The manufacturer names ITT Cannon, Litton VEAM, 400A and 660A Powerlock and other Powerlock-style brands as compatible.
