Powersafe SLD0054 Line Drain 500A 185mm2 Crimp 22-32mm Black Neutral IP67

Description

A crimped neutral drain for 185mm² cable runs.

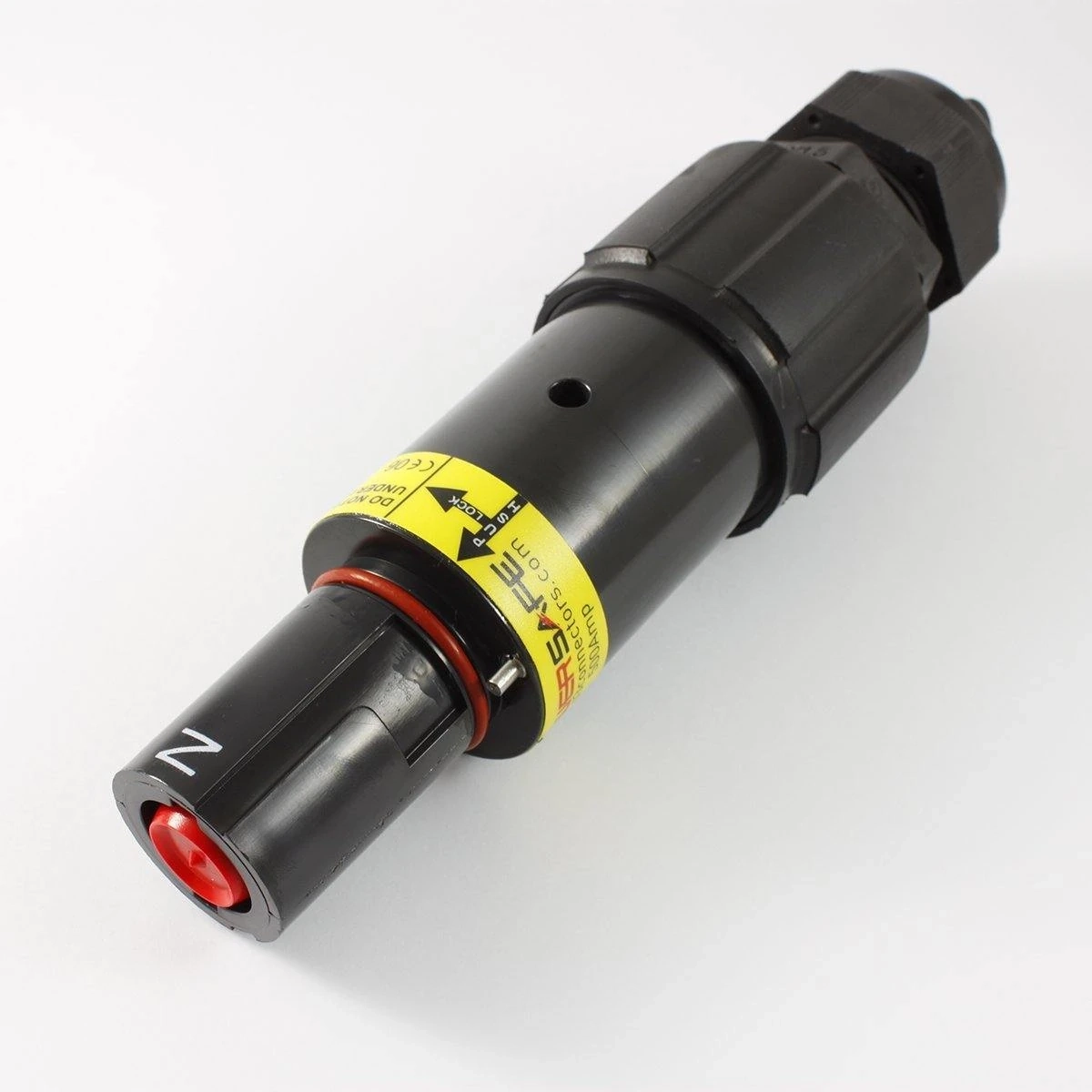

The Powersafe SLD0054 is the black Neutral drain in a Powerlock-compatible single pole system, made for 185mm² copper cable. Its crimp contact provides a permanent termination for heavy neutral conductors on temporary power leads.

Key Features

• Neutral (N) key position, black colour coding
• Powerlock-compatible drain with female contact and male insulator
• 500A connector rating
• Crimp contact for 185mm² copper cable
• M40B cable gland, 22–32mm clamping range
• Operating voltage: 1000V AC
• Surge current 75kA; short circuit rating up to 35.5kA
• IP67 rated with IP2X finger-proof contact when uncoupled
• UL94-V0 flame retardant thermoplastic insulator
• Silver plated contact, over 500 mating cycles

Grab yours today with fast delivery anywhere in Australia.

Built to Carry the Neutral Safely

Keyed to neutral, locked under load
Colour alone does not decide where a Powersafe connector can go: the mechanical key does. The SLD0054 is keyed to the Neutral position and will only couple with a Powersafe Neutral source connector, in line or panel mount form. When mated, a secondary lock engages that can only be opened with a release key, so the neutral cannot be pulled out while the circuit is loaded.

Why a crimp termination on 185mm²
For crimp versions, Phase 3 specifies a hexagonal die set in a hydraulic crimping tool. The 185mm² contact takes three equidistant crimps along its barrel, maximising the crimped surface area of the termination. The drain end usually receives power and is not normally live when uncoupled, with IP2X finger-proofing and IP67 sealing for dust and water.

Crimping checklist

• Strip the cable to leave 43mm of conductor exposed
• Use the ME 37 die set in an HT 131-C manual or B 131-C cordless hydraulic tool
• Make three crimps evenly spaced along the contact
• Secure the gland body and dome nut at 11 Nm

Copper conductors only. Fitting, inspection and maintenance should be done by a licensed electrician to Australian wiring rules, with a tensile check recommended to confirm the crimp.

Q: What crimp die does the Powersafe SLD0054 need?
A: The manufacturer specifies the ME 37 hexagonal die set for 185mm² cable, used in an HT 131-C hand hydraulic tool or a B 131-C 14.4V cordless crimper, with three crimps per contact.

Q: Can a black Powersafe connector be plugged into any black socket?
A: No. Mating is set by the mechanical key, not the colour. This SLD0054 is keyed to Neutral and only mates with a Powersafe Neutral source connector, so always check the key position when ordering.

Q: Is the SLD0054 compatible with other Powerlock brands?
A: Yes, provided the keying matches. According to the manufacturer, Powersafe is compatible with ITT Cannon and Litton VEAM equipment, 400A and 660A Powerlock, and other makers' Powerlock-style connectors.
