Powersafe SLD0009 Line Drain 500A 120mm2 Set Screw 19-28mm White Line 2 IP67

Description

Line 2 power, locked in at 500A.

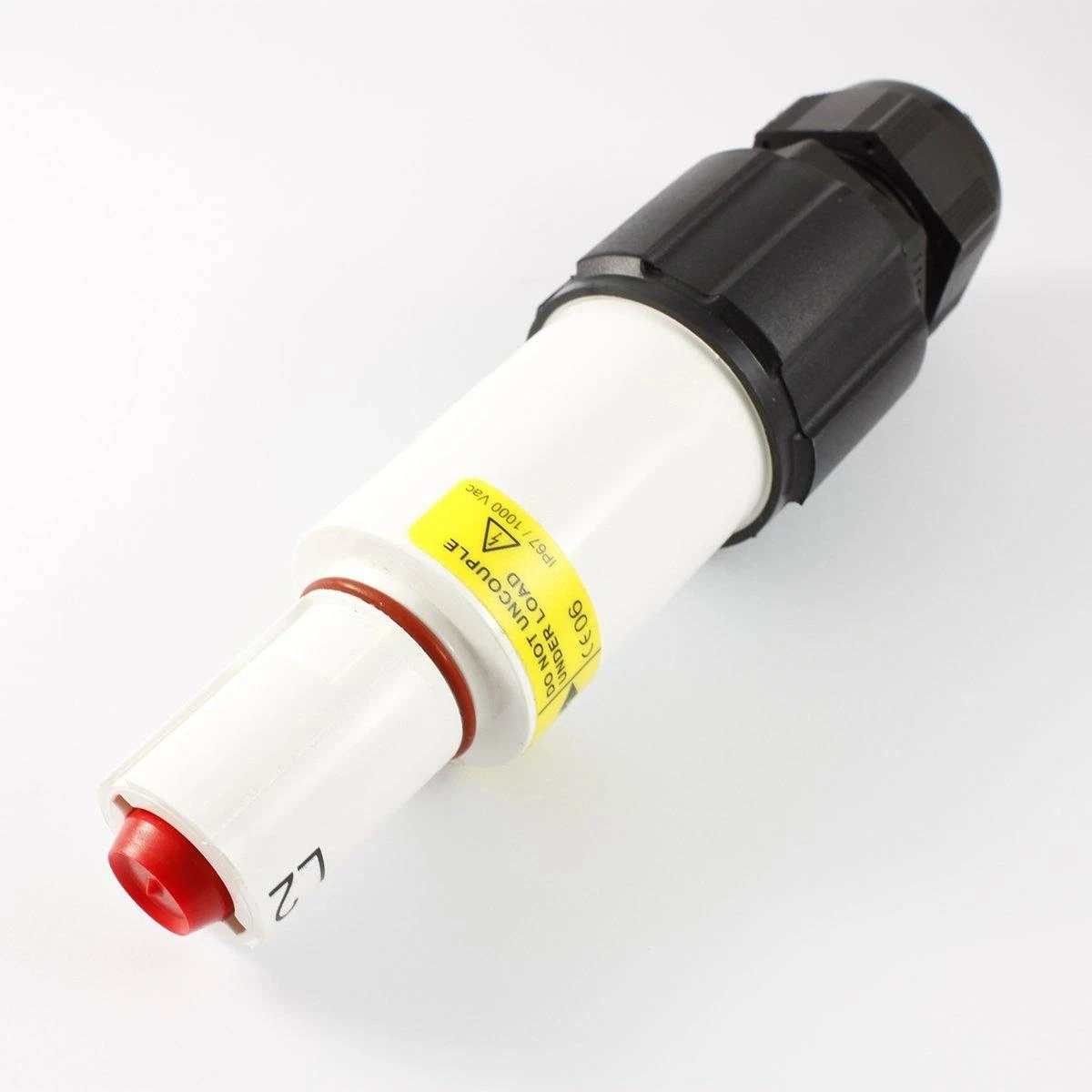

The Powersafe SLD-L2-S120-M40A is a white Line 2 line drain connector for single pole, high-current circuits. A set screw contact takes 120mm² cable, and the Powerlock-compatible coupling locks shut so the phase stays connected under load.

Key Features

• Line drain (cable-mount) format: female contact, male insulator
• Line 2 key position, white colour coding
• 500A current rating, 1000V AC operating voltage
• Set screw termination for 120mm² cable
• M40A gland with 19 - 28mm cable clamping range
• IP67 when mated, IP2X finger-proof when unmated
• Silver-plated contact in a high temperature thermoplastic shell
• Flame retardant materials rated UL94-V0
• Bayonet coupling with key-release secondary locking

Get yours with fast dispatch Australia-wide.

Why Keyed Single Pole Connectors Matter

One position, one partner
Powersafe connectors are colour coded and mechanically keyed by line. This white L2 drain will only accept an L2-keyed source, which keeps Line 2 from being plugged into L1, L3, neutral or earth during a fast temporary setup. After coupling, the pair can only be separated with a release key, guarding against the connection being broken while current is flowing.

Understanding the drain end
Every Powersafe pairing has a source and a drain. The source carries a male contact and is usually the live side. A drain like this one has a female contact inside a male insulator and usually receives the connection. When uncoupled, its finger-proof (IP2X) design helps keep fingers away from the contact.

Simple to terminate
Copper cable of 120mm² is clamped by the set screw contact, and assembly needs no special tools. The M40A metric gland grips cable between 19 and 28mm outside diameter while giving built-in strain relief. Running a smaller cable? An optional Powersafe reducer kit lets the set screw contact accept 95, 70, 50, 35 or 25mm².

Powersafe connectors are made and assembled by Phase 3 in the United Kingdom under ISO 9001:2015 quality standards, and are relied on by power distribution, events, military and cable assembly users around the world.

Q: Will the Powersafe SLD-L2-S120-M40A work with Powerlock equipment?
A: Yes. It shares the Powerlock mating system and is cross-referenced to ITT VEAM Powerlock part NLDFT-2-W-L-S120-M40A. As an L2-keyed drain, it only mates with a Line 2 source connector.

Q: Which cable suits this Line 2 drain connector?
A: It is designed for 120mm² cable from 19 to 28mm outside diameter. Most flexible 150mm² cable will also fit as long as the insulation OD stays below the 28mm gland limit, while reducer kits handle 25 to 95mm².

Q: Does it stay waterproof when unplugged?
A: No. The IP67 rating applies only when it is mated. Uncoupled it remains finger-proof to IP2X, and an optional Powersafe protective cap is the way to keep moisture and dirt out.
