Powersafe SLD0007 Line Drain 500A 120mm2 Set Screw 19-28mm Red Line 1 IP67

Description

Line 1 power, locked in and keyed right.

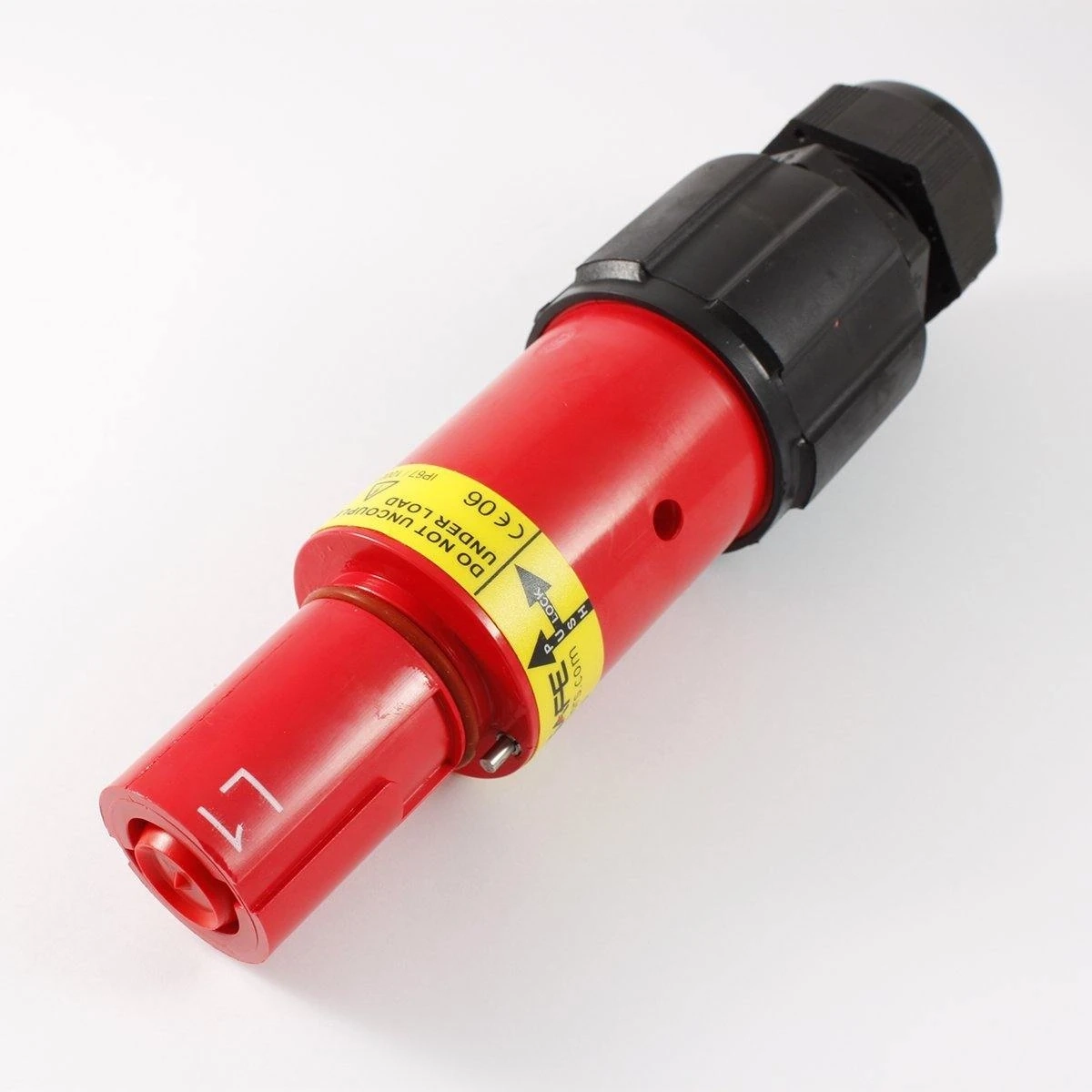

The Powersafe SLD0007 is the red Line 1 drain in a Powerlock-compatible single pole system. A set screw contact takes 120mm² or 150mm² copper cable, letting you make up or repair heavy-duty phase leads on site with a hex key instead of a crimp tool.

Key Features

• Powerlock-compatible line drain, female contact in a male insulator
• Line 1 (L1) key position, red colour coding
• 500A connector rating
• Set screw termination, 120mm² and 150mm² copper cable
• M40A gland clamping 19–28mm cable OD
• 1000V AC operating voltage
• 75kA surge current, short circuit rating up to 35.5kA
• IP67 ingress protection, IP2X finger-proof when uncoupled
• UL94-V0 high temperature thermoplastic body
• Silver plated contact rated for over 500 mating cycles

Secure yours today with fast shipping across Australia.

Why Phase Identification Matters

One key position per line
Each Powersafe line is mechanically keyed and colour coded. This L1 drain will only couple with a Powersafe Line 1 source connector, whether line or panel mounted, so phases cannot be crossed when a three phase set is plugged up in a hurry. A secondary lock engages on coupling and is only released with a release key, which prevents the connector being pulled apart under load.

Where the drain sits in the circuit
The drain end normally receives power from the source side and is usually not live when unplugged. Its contact is finger-proof to IP2X, and the connector is IP67 rated against dust and water, suiting the demanding sites seen in power generation, cable assembly and event power distribution.

Terminating the set screw contact

• Remove 33mm of cable insulation
• Torque the set screws to 10.5 Nm minimum using a 5mm Allen bit
• Tighten the gland's body and dome nut to 11 Nm
• Smaller 25–95mm² cable needs Powersafe reduction sleeves, sold separately

Copper conductors only. This connector should be fitted, inspected and maintained by a licensed electrician to Australian wiring rules.

Q: Which line does the red Powersafe SLD0007 connect?
A: It is keyed to the Line 1 (L1) position and will only mate with a Powersafe L1 source connector, so the red connector always stays on the same phase.

Q: Will the SLD0007 work with Powerlock connectors from other brands?
A: Yes. The manufacturer lists Powersafe as compatible with ITT Cannon, Litton VEAM and both 400A and 660A Powerlock connectors, along with other makers' Powerlock-style products, provided the line key positions match.

Q: What cable diameter suits the M40A gland?
A: The gland clamps cable with an overall diameter of 19–28mm. For 15–18mm cable, the manufacturer specifies a PP00131 reduction bush in the gland.
