Powersafe SLS0007 Line Source 500A 120mm2 Set Screw 19-28mm Red Line 1 IP67

Description

Line 1 from the supply side.

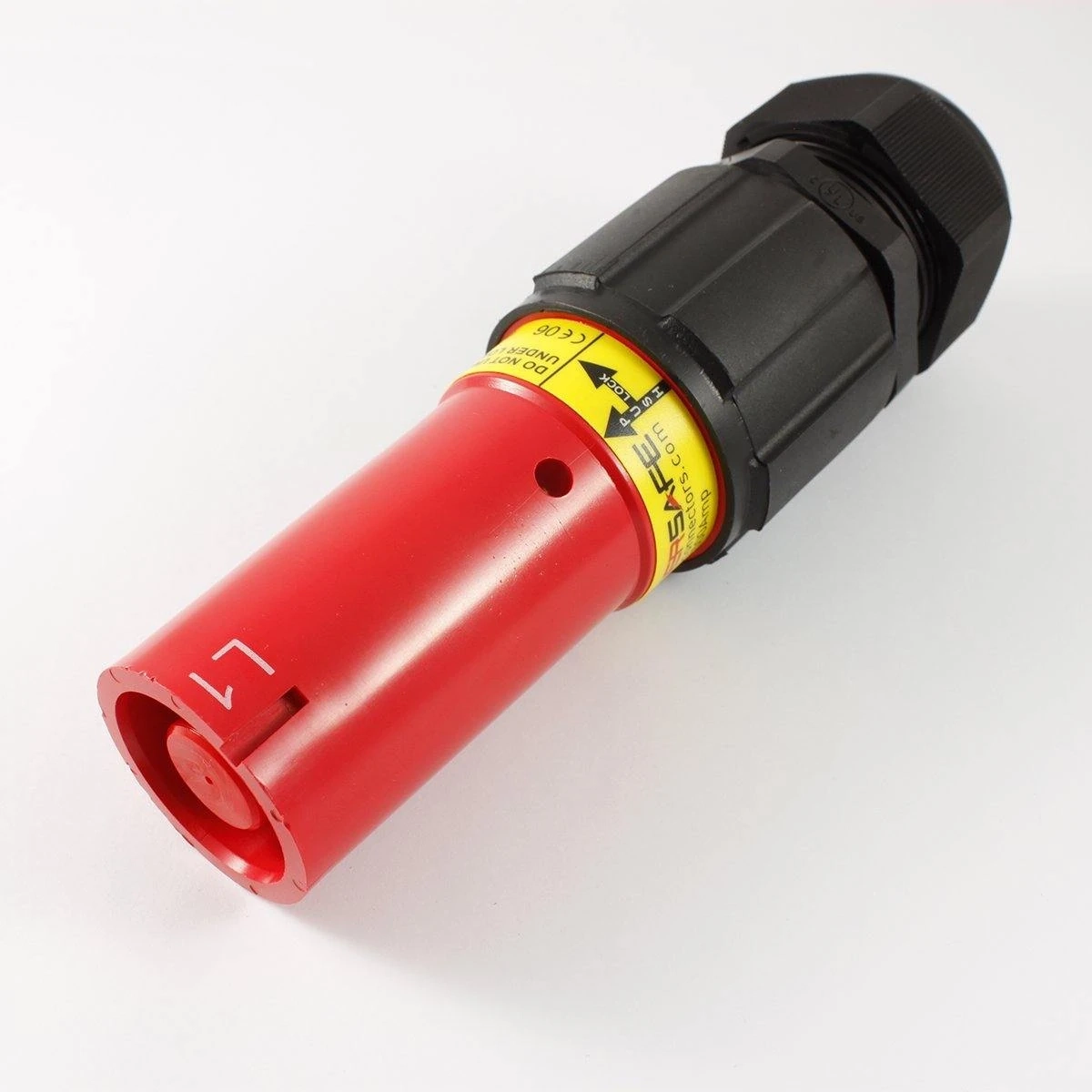

The Powersafe SLS0007 is the red Line 1 source connector for Powerlock-compatible single pole power. As the source, it is typically the live end of the phase, so its male contact is enclosed by a finger-proof female insulator. Set screws take 120mm² or 150mm² cable.

Key Features

• Red Line 1 (L1) source connector
• Male contact enclosed by a female insulator
• Powerlock-compatible and rated 500A
• Set screw contact, 120mm² or 150mm² copper cable
• M40A gland suiting 19–28mm cable OD
• Operating voltage of 1000V AC
• Up to 35.5kA short circuit rating; surge current 75kA
• IP2X finger-proof contact, IP67 when mated
• Thermoplastic housing, UL94-V0 flame retardant
• Silver plated contact, rated above 500 mating cycles

Buy online today, with fast shipping Australia-wide.

Safe Handling of a Live Phase End

Finger-proof where it counts
Phase 3 describes source connectors as usually the live end of the connection. On the SLS0007 the contact cannot be touched with a finger when the connector is uncoupled (IP2X), and once it is joined to its drain the connection is sealed to IP67 against water and dust.

L1 only
Each line in a Powersafe set has its own mechanical key. This source will enter a Powersafe Line 1 drain, on a lead or a panel, and no other connector, which keeps the phase sequence intact across every hook-up. A release key is needed to open the secondary lock that engages on mating.

Fitting the cable

• 33mm insulation strip length
• 5mm Allen bit; set screws to a minimum of 10.5 Nm
• Gland body and dome nut tightened to 11 Nm
• Below 120mm²: reduction sleeves for 25, 35, 50, 70 and 95mm² cable, sold separately

Copper conductors only. The manufacturer directs that qualified electricians install, inspect and maintain this product in accordance with local and national electrical codes.

Q: Why does the Powersafe SLS0007 have a male contact?
A: It is a source connector. Sources carry a male contact inside a female insulator and are usually the live end; the matching drain has the female contact.

Q: What connects to the SLS0007?
A: A Powersafe Line 1 drain connector, line or panel type. Its L1 key blocks every other line.

Q: Is the SLS0007 compatible with Powerlock equipment?
A: Yes. Per Phase 3, both Powersafe genders work with ITT Cannon and Litton VEAM connectors and with 400A and 660A Powerlock, among other makes. The line keys on both halves need to match.
