Powersafe SLS0009 Line Source 500A 120mm2 Set Screw 19-28mm White Line 2 IP67

Description

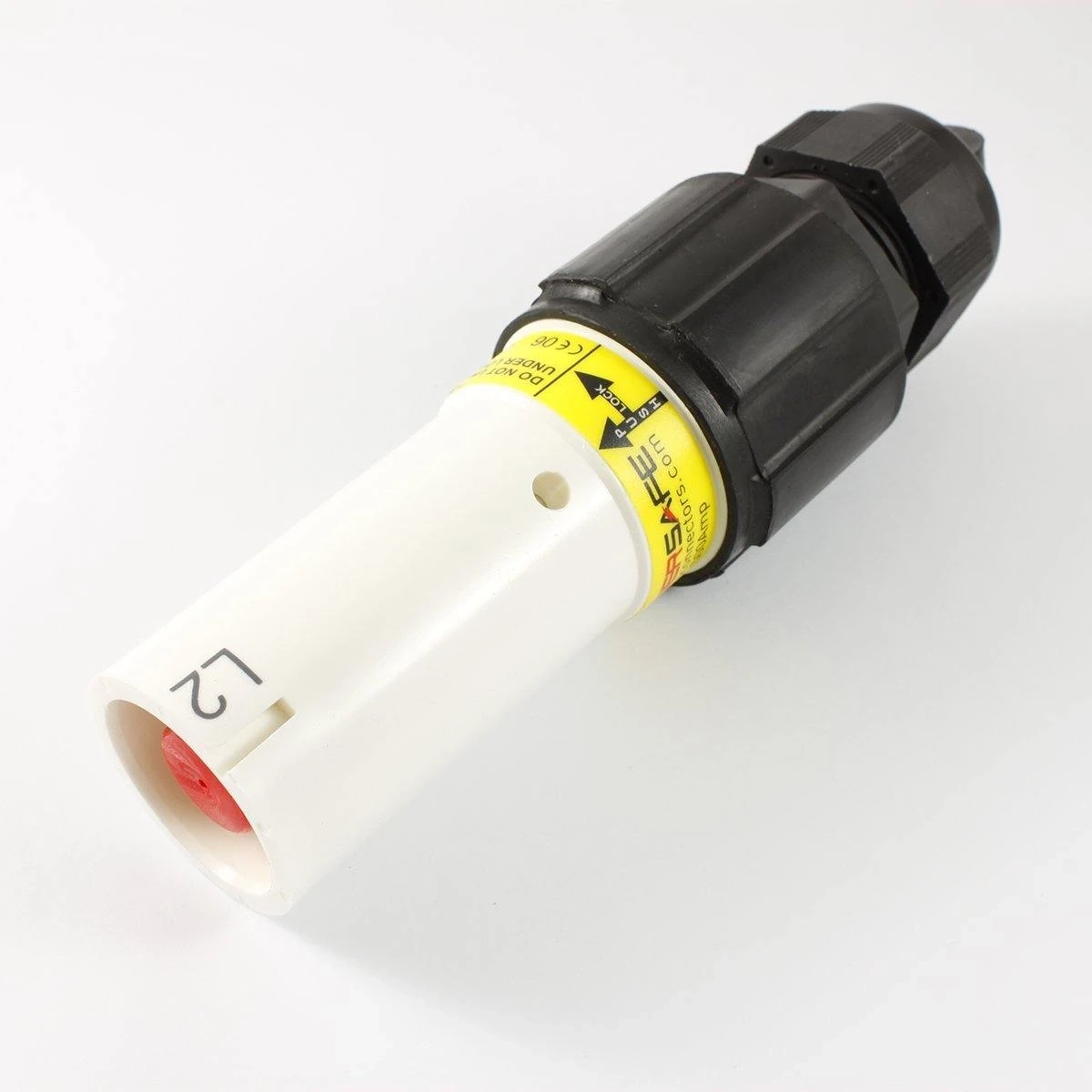

White Line 2 source, ready to terminate.

The Powersafe SLS0009 supplies the second phase in a Powerlock-compatible single pole set. This white source connector has a recessed male contact, Line 2 keying and set screws that clamp 120mm² or 150mm² copper cable, so it can be fitted on site with ordinary hand tools.

Key Features

• Line 2 (L2) source, white colour code
• Female insulator surrounding a male contact
• 500A rating, Powerlock-compatible mating
• Set screws for 120mm² and 150mm² copper cable
• 19–28mm cable OD via the M40A gland
• 1000V AC operating voltage rating
• 75kA surge current, 35.5kA maximum short circuit rating
• IP67 mated; IP2X finger-proof unmated
• UL94-V0 thermoplastic, high temperature rated
• Silver plated contact for 500+ mating cycles

Add to cart and get fast delivery anywhere in Australia.

Line 2, Kept in Its Lane

Mates with one connector type
The SLS0009 carries the L2 mechanical key. It will only accept a Powersafe Line 2 drain, whether that drain is fitted to a cable or mounted on an equipment panel. Coupling engages a secondary lock, and separating the pair takes a release key, so the phase cannot be unplugged by accident under load.

The source role
Source connectors are, in Phase 3's words, usually the live end of the connection, with drains receiving it. The source therefore keeps its male contact inside a female insulator, finger-proof to IP2X while uncoupled. Once it is mated with its drain, the connection is rated IP67.

Hand-tool termination

• Strip 33mm of cable insulation
• Insert the conductor and torque the set screws to at least 10.5 Nm (5mm Allen bit)
• Refit the gland, then tighten its body and dome nut (11 Nm)
• For 25–95mm² cable, order Powersafe reduction sleeves separately

Copper conductors only. Phase 3 states the product is to be installed, inspected and maintained by qualified electricians only, following local and national electrical codes.

Q: What colour is Line 2 on Powersafe connectors like the SLS0009?
A: The SLS0009 is the white Line 2 version. Its L2 key, not just its colour, controls what it will mate with.

Q: What tools are needed to fit the SLS0009?
A: A 5mm Allen bit and a torque tool for the set screws (10.5 Nm minimum) and gland (11 Nm). No crimp tool is required.

Q: Will the SLS0009 take 150mm² cable?
A: Yes. The supplier notes it accepts most makes of flexible 150mm² cable, provided the cable's outside diameter is under the M40A gland's 28mm maximum.
