Powersafe SPD0020 Panel Drain 800A Blue Line 3

Description

Blue L3 drain for 800A panels.

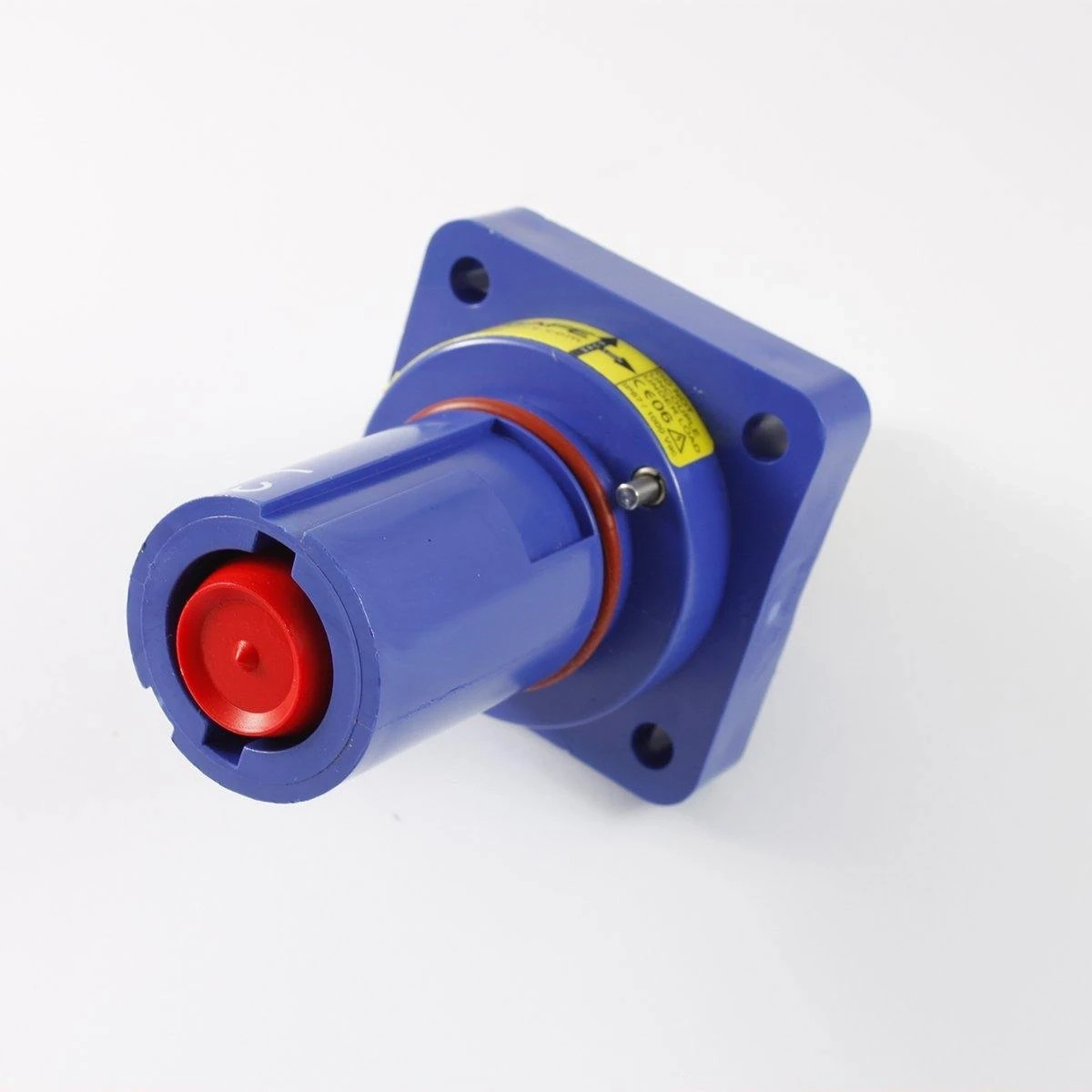

The Powersafe SPD0020 is the Line 3 panel drain in the T8 size. Blue and L3 keyed, this Powerlock-compatible socket is rated 800A, has a copper contact under silver plating, and is terminated with a cable lug on the M12 threaded post behind its flange.

Key Features

• Line 3 (L3) key on a blue panel drain
• Powerlock-compatible; T8 means 800A
• Silver plating over a copper contact
• Lugged cable bolts to the M12 threaded post
• Four fixing holes around the flange
• Watertight against the panel, thanks to a gasket
• Ready assembled: gasket, post, nut, spring washer
• Operating voltage is 1000V AC
• Surge rated 75kA; short circuit rated up to 35.5kA
• IP67, finger-proof IP2X and UL94-V0 rated

Get yours delivered fast, wherever you are in Australia.

Completing the 800A Set

The L3 position
Phase 3 gives every Powersafe position a key of its own, and Line 3 is the one cut into the SPD0020. It mates with a Powersafe Line 3 source; the keys on other sources will not pass. Blue is the Line 3 colour. Coupling is a bayonet movement, backed by a secondary lock that only the release key opens.

Rated by its contact
The 800A figure goes with the socket material. In Phase 3's range the 800A sockets are copper with silver plating and the T5 ones are brass with silver plating. Outside the contact, the high impact insulator is glass-free and flame retardant.

From box to panel

• Supplied assembled, so it mounts straight to equipment
• Flange holes suit M6 threaded inserts if preferred
• Tighten the M12 nut to 12–14 Nm at the very most

With inserts fitted, the connector can be fixed from the front or the rear. Phase 3 adds that field installation is done without special tools. As a drain, the SPD0020 has an O-ring at the front that the assembly guide says to check for degradation and coat periodically with a film of silicone grease; the guide also asks that the spring-loaded secondary locking pin be checked for free movement. A qualified electrician should do the installing, with local and national electrical codes observed.

Q: Which line source fits the Powersafe SPD0020?
A: A Powersafe Line 3 source. The blue SPD0020 carries the L3 key.

Q: Is the SPD0020 the 800A version?
A: Yes. T8 is the 800A panel rating, and the contact is silver plated copper.

Q: What comes with the SPD0020?
A: The gasket, the M12 threaded post, an M12 nut and a spring washer, all fitted.
