Powersafe SPD0015 Panel Drain 800A Green Earth

Description

800A Earth socket with copper contact.

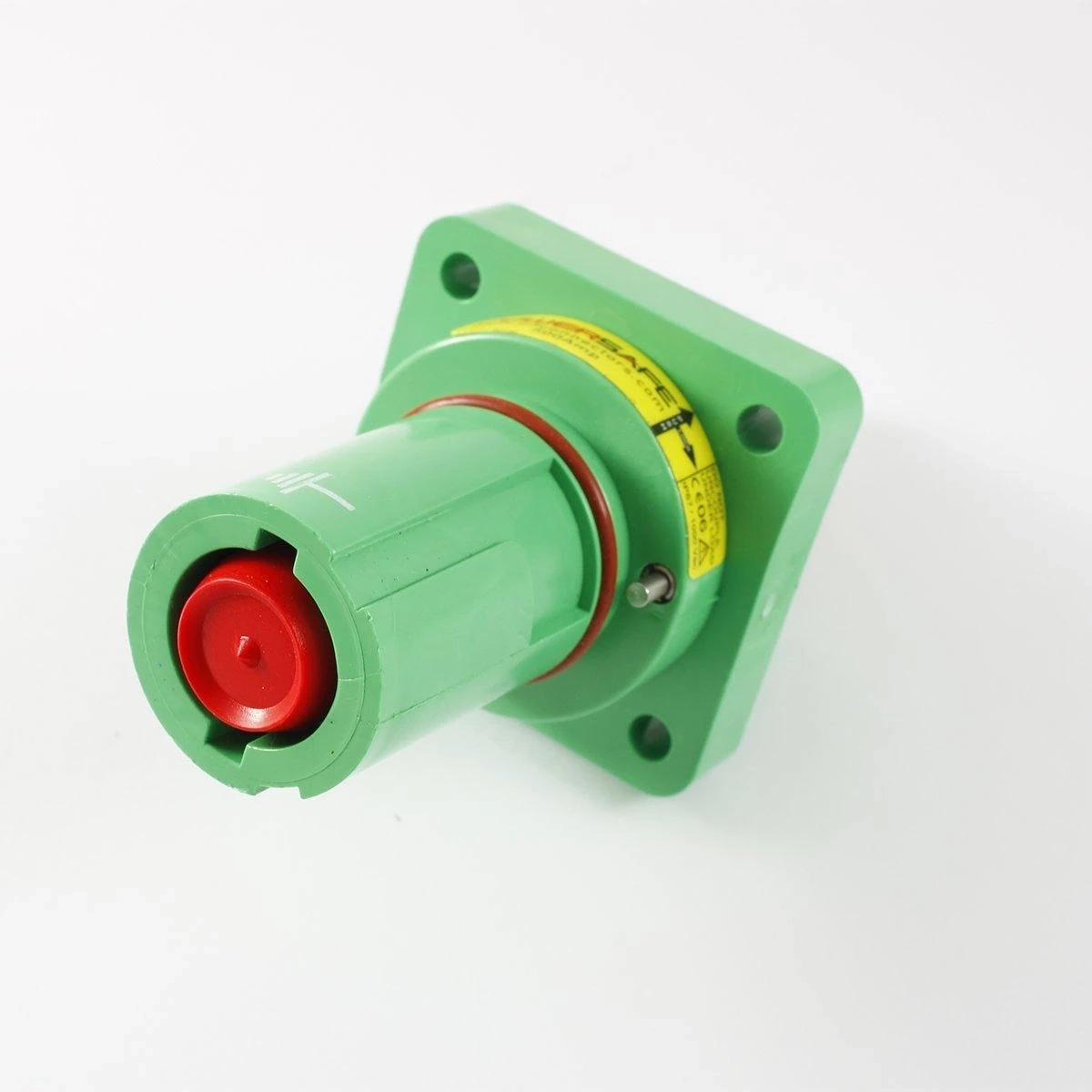

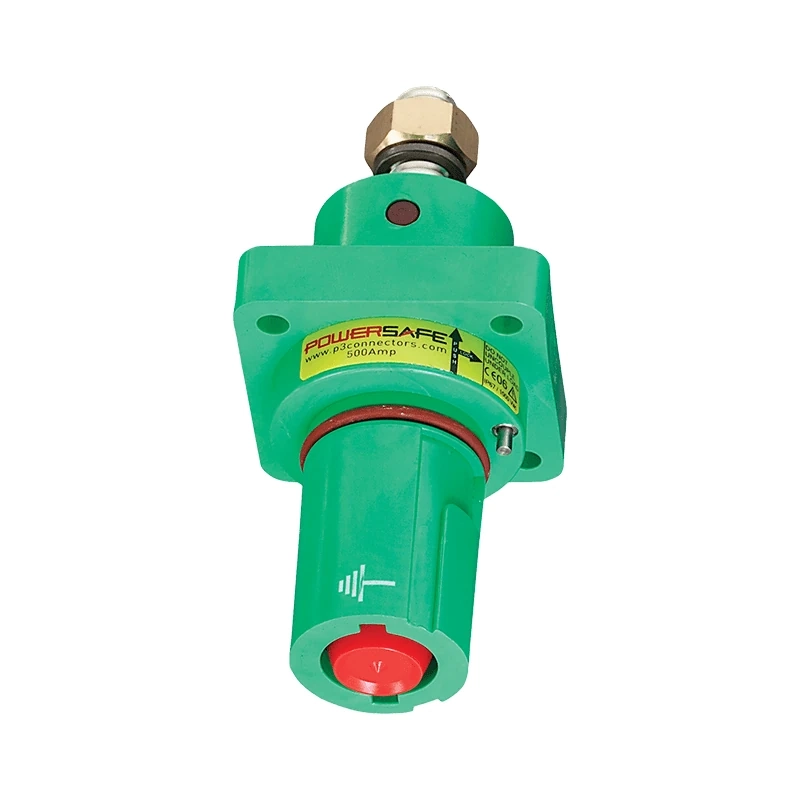

The Powersafe SPD0015 is the T8 Earth panel drain, the 800A member of the Powerlock-compatible panel range. Green and Earth keyed, it has a silver plated copper contact and an M12 threaded post behind the flange for a lugged cable.

Key Features

• Earth (E) keyed panel drain in green
• T8 rating: 800A, Powerlock-compatible
• Copper contact with silver plating
• M12 threaded post takes a standard cable lug
• Four-hole flange with a watertight gasket
• Sold fully assembled, nut and spring washer on the post
• Operates at 1000V AC, with a 75kA surge rating
• Up to 35.5kA on short circuit rating
• IP67 when mated, IP2X finger-proof unmated
• Flame retardant UL94-V0 insulator, no glass used

Grab yours now and have it sent anywhere in Australia.

Where T8 Differs From T5

Copper for the higher rating
Phase 3 builds its panel sockets in two ratings. The T5 sockets are brass with silver plating; the 800A T8 sockets, including the SPD0015, are made from copper with silver plating. Everything a fitter handles stays the same: an M12 post, four flange holes and a panel gasket.

Earth keyed, and locked when mated
The Earth key on this drain admits a Powersafe Earth source and nothing else, so a phase or neutral lead cannot be pushed in by mistake. Green marks it as the Earth position on the panel. A bayonet action couples the pair, then secondary locking keeps them joined until the release key is used.

Fitting notes

• Flange holes accept M6 threaded inserts, front or rear
• Lug goes on the post under the washer and nut
• Nut torque is capped at 12–14 Nm

Phase 3 states that panel connectors are ready for direct mounting to equipment and that no special tools are called for in the field. For drains, its guide recommends a periodic look at the front O-ring, a film of silicone grease on that ring, and a check that the spring-loaded secondary locking pin travels freely. A qualified electrician should carry out the work, observing local and national electrical codes.

Q: How many amps is the Powersafe SPD0015 rated for?
A: 800A. It is the T8 version of the Earth panel drain.

Q: What is the SPD0015 contact made from?
A: Copper with silver plating, which Phase 3 uses for its 800A panel sockets.

Q: Which connector mates with the SPD0015?
A: A Powersafe Earth line source. The Earth key rejects every other key position.
