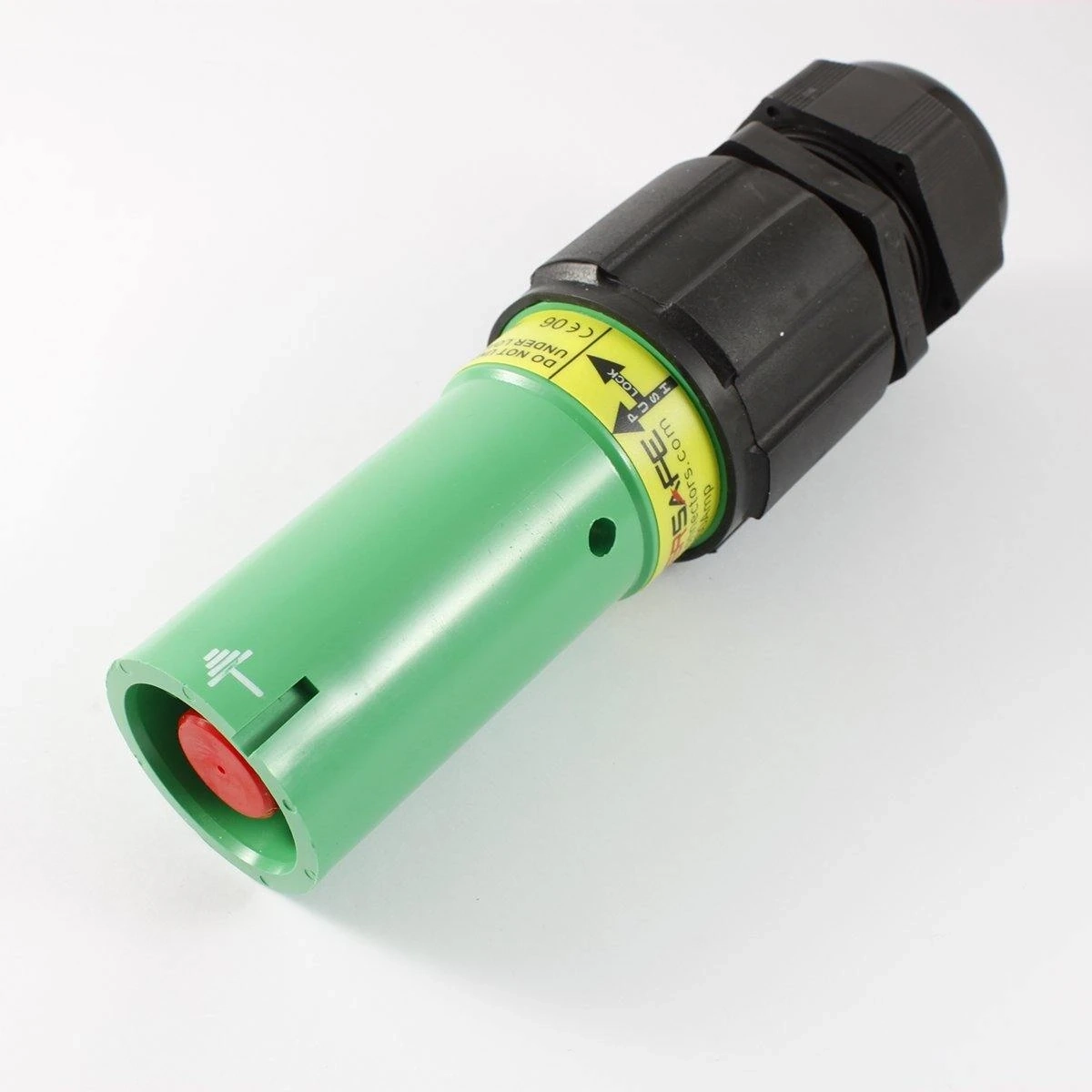

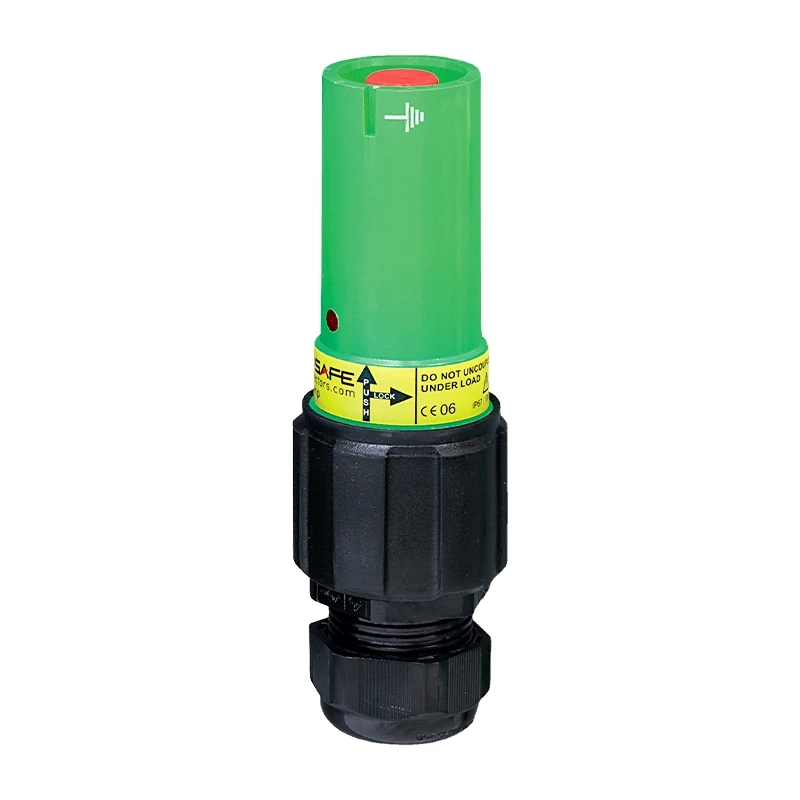

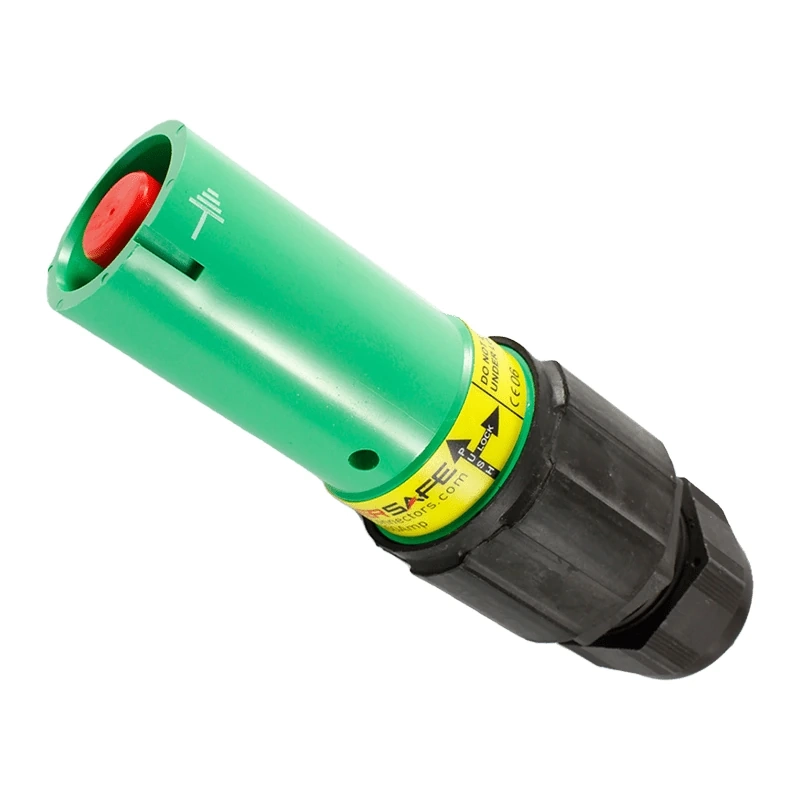

Powersafe SLS0015 Line Source 800A 240mm2 Crimp 22-32mm Green Earth IP67

Description

800A earth source for 240mm² cable.

The Powersafe SLS0015 is the Earth source in Powersafe's 800A Powerlock-compatible series, crimped to 240mm² copper cable. Green and Earth keyed, it provides the supply-side earth connection for high-capacity single pole power sets.

Key Features

• Green Earth (E) source connector
• Male contact; female, finger-proof insulator
• 800A series, Powerlock-compatible
• Crimp contact for 240mm² copper cable
• M40B gland for 22–32mm cable diameter
• Rated for a 1000V AC operating voltage
• 75kA surge current and a short circuit rating that reaches 35.5kA
• IP2X protection uncoupled; IP67 rated mated
• High temperature UL94-V0 thermoplastic shell
• Silver plated contact; more than 500 mating cycles

Shop now and get fast shipping across Australia.

The Earth Path at 800A Scale

A matched pair with the drain
Powersafe connections are made between a source and a drain of the same key. The SLS0015 is Earth keyed, so its counterpart is a Powersafe Earth drain: the SLD0015 line drain for 240mm² cable, another Earth line drain, or an Earth panel drain. It cannot be coupled to a phase or neutral.

What the 800A series means
In the Powersafe range, 240mm² and 300mm² cable sizes get the 800A connector. Its contact is built from 29 transfer bridges of 30A apiece, which comes to 870A per contact. Read 800A as the maximum continuous rating: Phase 3 qualifies it by cable choice and environmental factors.

Source-end safety
Phase 3 treats the source as the half that is usually live. For that reason the male contact is shrouded by a female insulator and is finger-proof to IP2X whenever the connector is apart. Mating engages a secondary lock that is opened only with a release key, and the mated pair is IP67 rated.

Crimp summary

• 43mm exposed conductor
• ME 48 hexagonal die, three crimps
• HT 131-C or B 131-C hydraulic crimping tool
• 11 Nm for the gland body and dome nut

Copper conductors only. Phase 3 specifies qualified electricians for installation, inspection and maintenance under local and national electrical codes, and recommends tensile testing the crimp.

Q: Which drain pairs with the Powersafe SLS0015?
A: Any Powersafe Earth drain, such as the SLD0015 line drain for 240mm² cable or an Earth panel drain.

Q: Is the SLS0015 rated 800A?
A: It is an 800A series connector. That is the maximum continuous rating, subject to the cable and the environment.

Q: What die crimps the SLS0015 contact?
A: The ME 48 hexagonal die, with three crimps, as Phase 3 lists for 240mm² cable.
