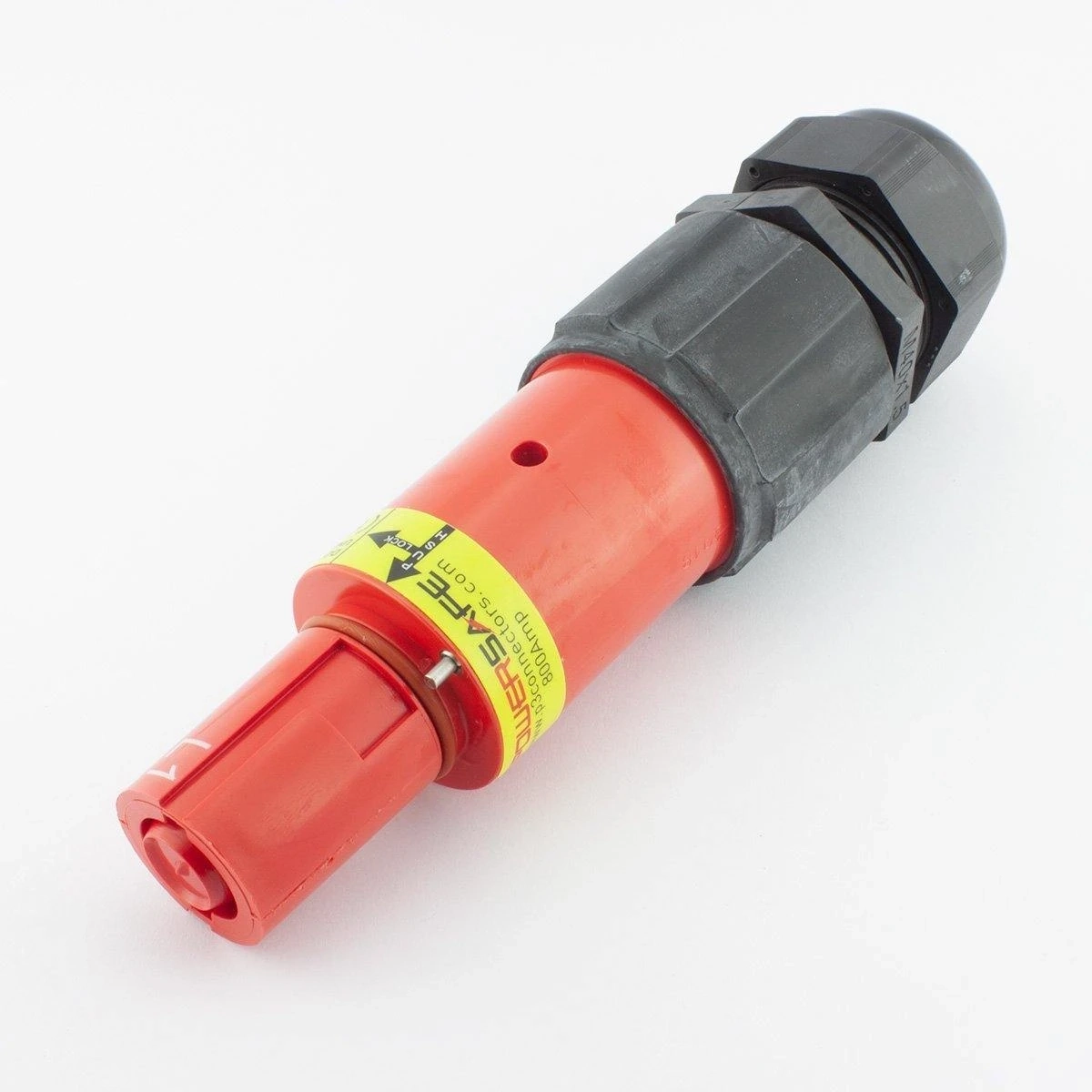

Powersafe SLD0027 Line Drain 800A 300mm2 Crimp 22-32mm Red Line 1 IP67

Description

Line 1 on 300mm² cable, rated 800A.

The Powersafe SLD0027 carries the first phase on 300mm² copper cable, the top cable size for Powersafe line connectors. Red, keyed to Line 1 and crimp terminated, this Powerlock-compatible drain belongs to the 800A series.

Key Features

• Line 1 (L1) key, red housing
• 800A series drain, Powerlock-compatible, for in-line use
• Drain layout: female contact, male insulator
• Crimp contact to suit 300mm² copper cable
• M40B gland; grips 22–32mm overall cable diameter
• 1000V AC operating voltage
• Up to 35.5kA short circuit rating, 75kA surge current
• IP67 protection, IP2X finger-proof contact when separated
• UL94-V0 thermoplastic shell for high temperatures
• Silver plated contact with 500+ mating cycle life

Order now online for quick delivery Australia-wide.

Phase Power at Full Size

Where 300mm² sits in the range
Powersafe cable connectors run from 25mm² through to 300mm², with crimp contacts used on the larger sizes. The 240mm² and 300mm² versions are Phase 3's 800A connectors, built on a contact of 29 transfer bridges at 30A each (870A). Cable choice and environmental factors determine the continuous current achieved in use.

Gland range to verify
An M40B gland is fitted, with a 22–32mm clamping range. Compare that against the overall diameter printed on your 300mm² cable's data sheet before you buy, since the gland must close on the sheath to seal and relieve strain.

Phase keying and locking
The L1 key lets this drain couple with a Powersafe Line 1 source connector alone, on a cable or a panel. It locks on mating through a secondary mechanism that only a release key opens.

Crimp specification

• Strip length: 43mm of conductor
• Die set: ME 60, hexagonal
• Tooling: HT 131-C hand hydraulic or B 131-C 14.4V cordless
• Number of crimps: three, evenly placed; gland torque 11 Nm

Copper conductors only. Installation and periodic checks are work for a licensed electrician under Australian wiring rules, including a tensile test of the crimp.

Q: Which line is the red Powersafe SLD0027 for?
A: Line 1. Its key position is L1, so it mates only with a Powersafe L1 source connector.

Q: What tooling terminates the SLD0027?
A: A hydraulic crimp tool with the ME 60 hexagonal die, making three crimps on the 300mm² contact.

Q: Does the SLD0027 fit every 300mm² cable?
A: It fits 300mm² copper cable whose overall diameter is within the M40B gland's 22–32mm clamping range, so check your cable's diameter first.
