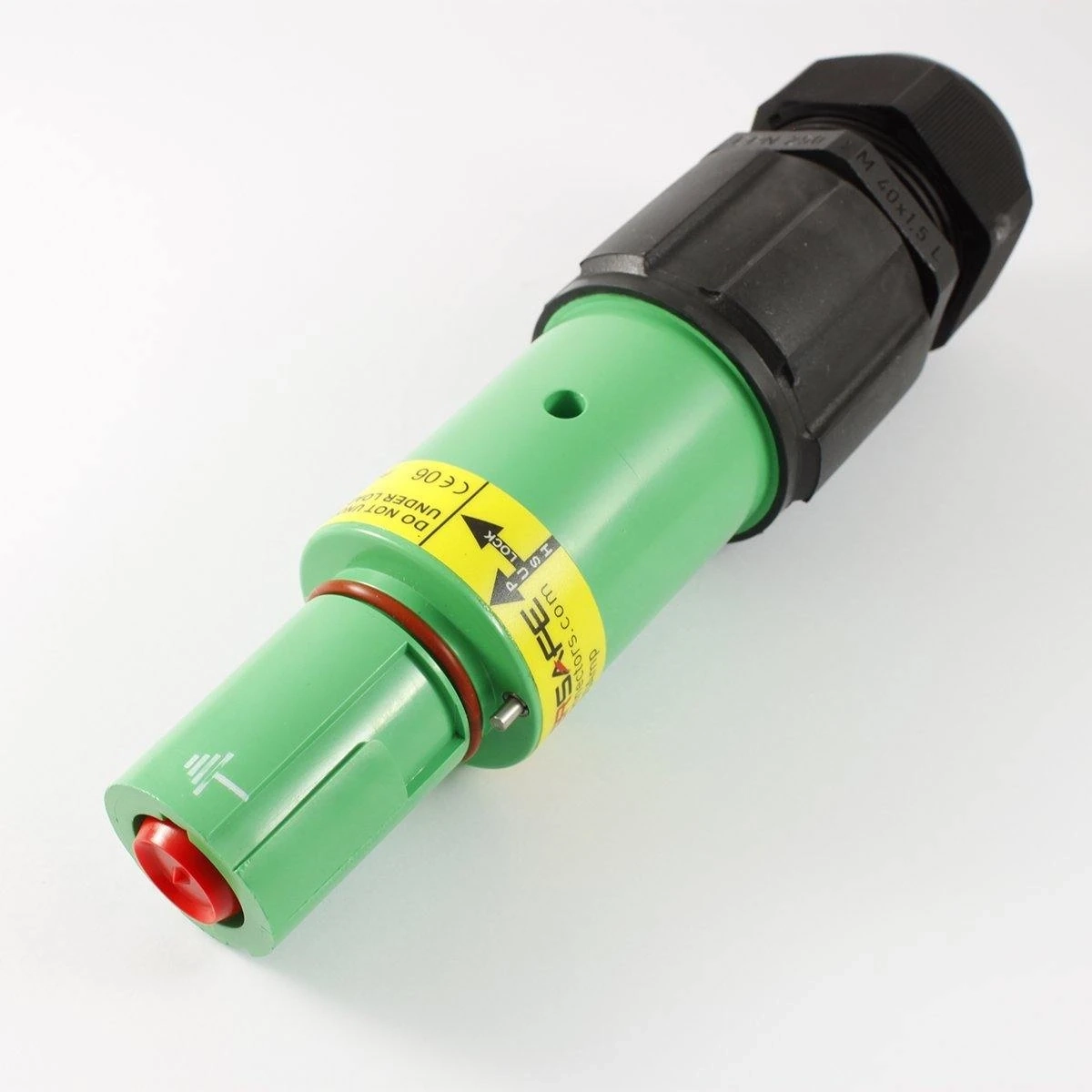

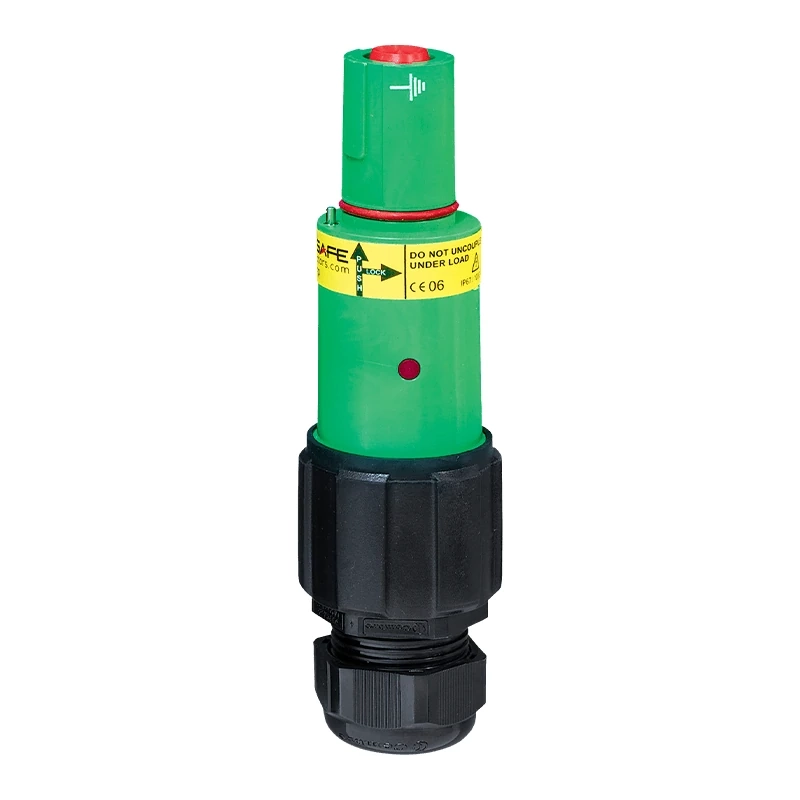

Powersafe SLD0025 Line Drain 800A 300mm2 Crimp 22-32mm Green Earth IP67

Description

Earth connection for the largest Powersafe cable.

The Powersafe SLD0025 is the green Earth drain for 300mm² copper cable, the biggest conductor size in the Powerlock-compatible Powersafe line connector range. Its 800A series crimp contact gives the protective earth a permanent, keyed termination.

Key Features

• Green, with Earth (E) keying
• 800A series Powerlock-compatible drain for cable mounting
• Male insulator carrying a female contact
• Crimp contact for 300mm² copper cable
• M40B gland, clamping 22–32mm cable OD
• 1000V AC operating voltage rating
• Short circuit rating up to 35.5kA and surge current of 75kA
• IP67 rated; contact is IP2X finger-proof when disconnected
• Flame retardant thermoplastic body, UL94-V0, high temperature grade
• Silver plated contact, over 500 mating cycles

View specs below, then order online for fast dispatch across Australia.

Earthing at the Top of the Range

The upper limit of the cable range
Powersafe line connectors cover single core cable from 25mm² to 300mm². Phase 3 supplies 800A connectors for the two largest sizes, 240mm² and 300mm². The contact reaches that level with 29 transfer bridges of 30A each, 870A in total, while the continuous current in service is subject to the cable and the environment.

Check your cable diameter
This version is supplied with the M40B gland, which clamps cable with an overall diameter of 22–32mm. Measure the outside diameter of your 300mm² cable before ordering, as it must fall inside that range for the gland to grip and seal.

Keyed earth with a locked connection
The Earth key means this drain mates with a Powersafe Earth source connector only, cable or panel type. A secondary lock holds the coupling and needs a release key to open.

Crimp details

• Conductor exposed: 43mm
• Die: ME 60 hexagonal, for the HT 131-C or B 131-C hydraulic tool
• Crimps: three, equidistant along the contact
• Gland body and dome nut: 11 Nm

This connector is for copper conductors only. Leave fitting, inspection and maintenance to a licensed electrician working under Australian wiring rules, and confirm the crimp with a tensile test.

Q: What is the largest cable a Powersafe line drain accepts?
A: 300mm². The SLD0025 is the Earth drain for that size, using a crimp contact and the ME 60 die set.

Q: Will my 300mm² cable fit the SLD0025 gland?
A: Only if its overall diameter is between 22mm and 32mm, the clamping range of the M40B gland supplied on this connector.

Q: Is the SLD0025 an 800A connector?
A: Yes. It is part of the 800A series, with the actual continuous current depending on cable choice and environmental factors.
