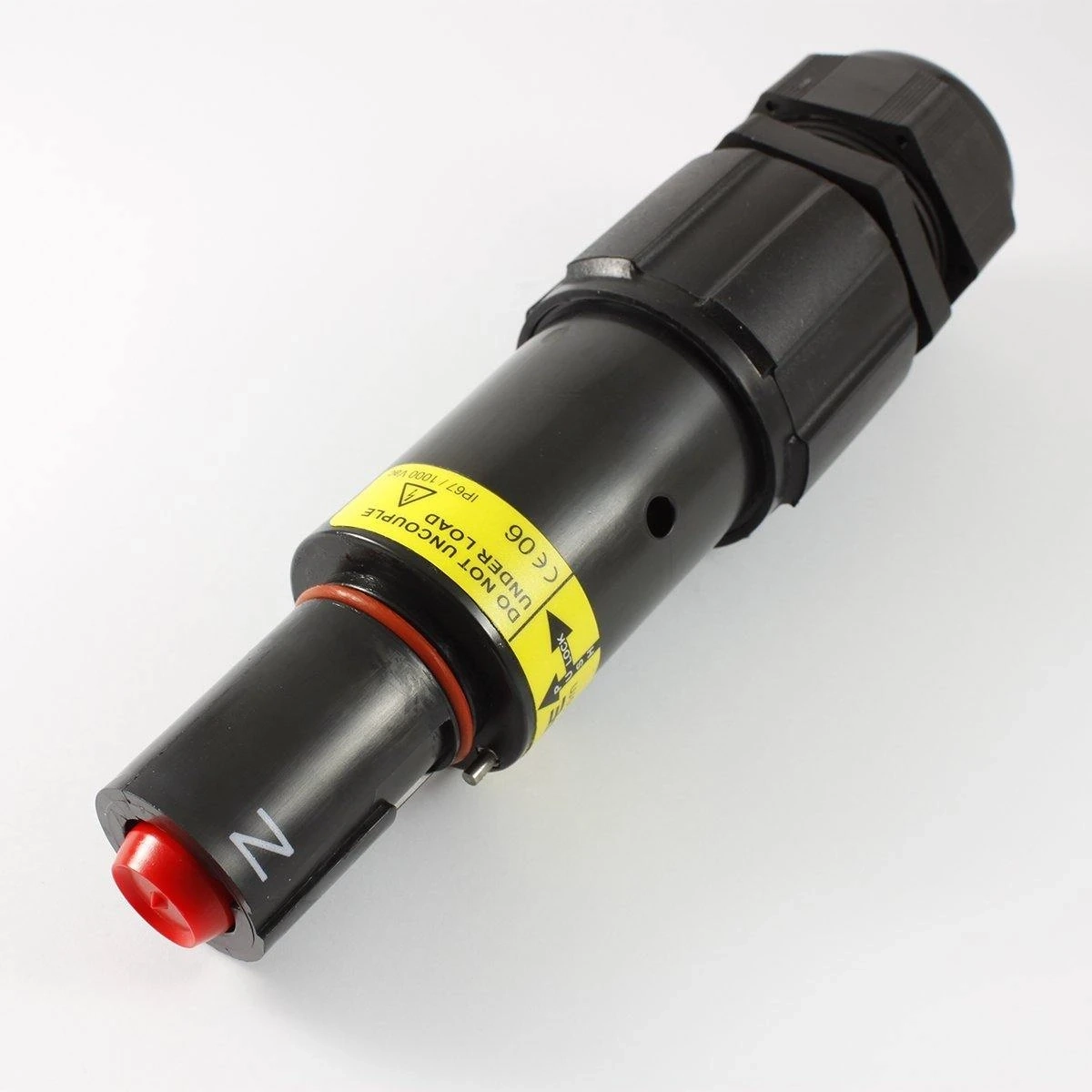

Powersafe SLD0026 Line Drain 800A 300mm2 Crimp 22-32mm Black Neutral IP67

Description

Neutral drain for 300mm² at 800A.

The Powersafe SLD0026 terminates a 300mm² copper neutral in a Powerlock-compatible single pole system. This black 800A series drain is crimped on, keyed to Neutral and locks when mated, for the largest cable the Powersafe line range takes.

Key Features

• Neutral (N) key position, supplied in black
• Powerlock-compatible cable drain, 800A series
• Female contact within a male insulator
• 300mm² copper cable crimp contact
• Cable OD of 22–32mm accepted by the M40B gland
• Operating voltage 1000V AC
• 75kA surge current; 35.5kA maximum short circuit rating
• IP67 sealed and IP2X finger-proof on the open contact
• High temperature thermoplastic, flame retardant to UL94-V0
• Silver plated contact; 500-plus mating cycles

Secure yours online with fast shipping throughout Australia.

A Neutral That Matches the Phases

Same contact, same capacity
The neutral uses the identical 800A contact design as the phase connectors: 29 transfer bridges, each rated 30A, for 870A per contact. Phase 3 pairs this 800A series with 240mm² and 300mm² cable. The maximum continuous rating is always subject to cable choice and environmental factors.

Confirm the cable fits the gland
The SLD0026 ships with an M40B gland whose clamping range is 22–32mm. Check the overall diameter of the 300mm² cable you plan to use, because the gland provides both the strain relief and the seal, and it needs a cable inside that range.

Keyed and locked
Keying, not colour, decides the mate: this drain connects to a Powersafe Neutral source connector and to no other line. A secondary lock engages when coupled, and a release key is needed to separate it.

What the crimp requires

• 43mm of conductor stripped bare
• ME 60 hexagonal die set
• Hydraulic crimping tool: the manual HT 131-C or the cordless B 131-C
• Three evenly spaced crimps, then 11 Nm on gland body and dome nut

Suitable for copper conductors only. Assembly, inspection and maintenance should be handled by a licensed electrician in line with Australian wiring rules, and the crimp tensile tested.

Q: Which die set crimps the Powersafe SLD0026?
A: The ME 60 hexagonal die, which Phase 3 lists for 300mm² cable, applied three times along the contact.

Q: What is the SLD0026 gland clamping range?
A: 22mm to 32mm overall cable diameter, using the M40B gland fitted to this version.

Q: What does the SLD0026 plug into?
A: A Neutral source connector from the Powersafe range, either cable or panel mounted. The manufacturer also states compatibility with other Powerlock-type connectors such as Litton VEAM and ITT Cannon.
