Powersafe SLD0015 Line Drain 800A 240mm2 Crimp 22-32mm Green Earth IP67

Description

An 800A earth drain for 240mm² cable.

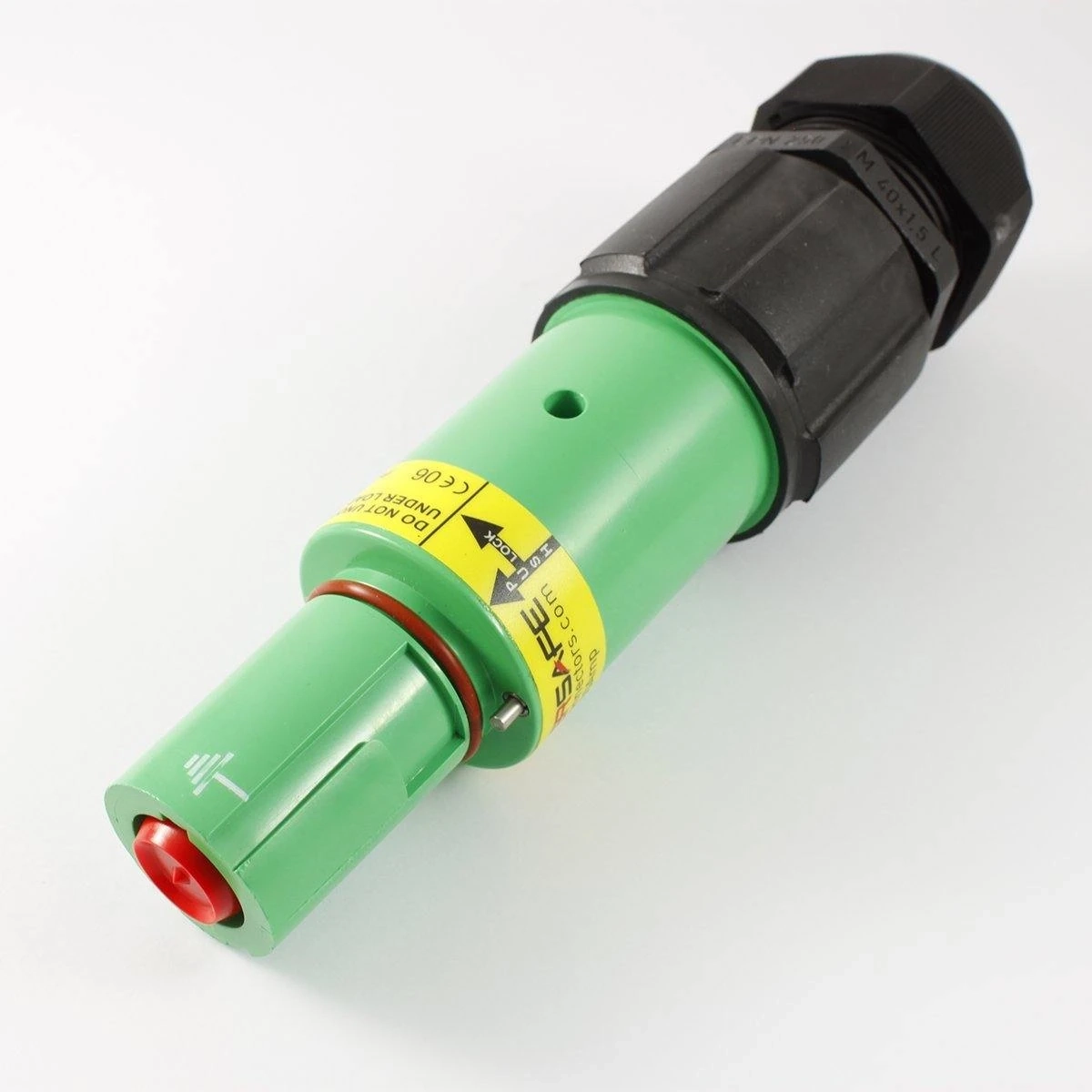

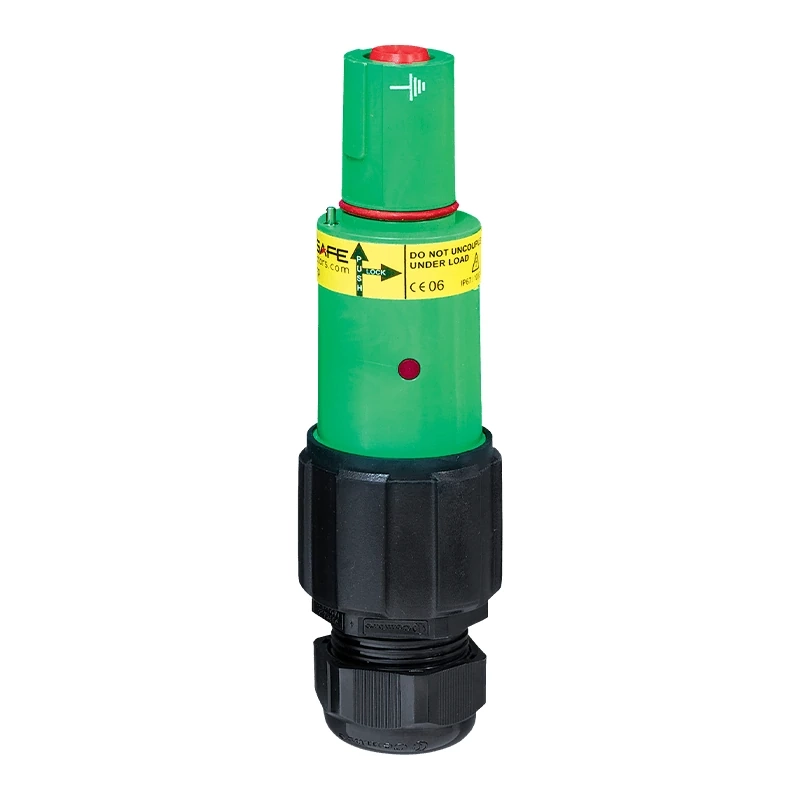

The Powersafe SLD0015 is the green Earth drain in Powersafe's 800A Powerlock-compatible range, built for 240mm² copper cable. A hydraulic crimp contact gives a permanent termination for the large earth conductors used on high-capacity temporary power systems.

Key Features

• Earth (E) key position in green
• 800A rated Powerlock-compatible line drain
• Female contact housed in a male insulator
• Crimp contact sized for 240mm² copper cable
• M40B gland grips cable from 22mm to 32mm OD
• Operates at 1000V AC
• 75kA surge current and up to 35.5kA short circuit rating
• IP67 water and dust rating; IP2X finger-proof uncoupled
• UL94-V0 high temperature thermoplastic shell
• Silver plated contact, 500+ mating cycles

Order today for fast Australia-wide shipping.

Earth Protection at 800A Capacity

How the 800A rating is achieved
Phase 3's contact design uses an arrangement of 29 transfer bridges, each rated at 30A, for a total of 870A per contact. That headroom underpins the connector's 800A maximum continuous rating, which in practice depends on cable choice and environmental factors. The manufacturer pairs 800A connectors with 240mm² and 300mm² cable.

Earth that only goes to earth
The SLD0015 is mechanically keyed to the Earth position, so it mates only with a Powersafe Earth source connector, line or panel mount, never a phase or neutral. A secondary lock activates on coupling and opens only with a release key. As the drain, it normally receives the connection and is not live when unplugged, with an IP2X finger-proof contact and IP67 sealing.

Crimping the 240mm² contact

• Strip back to leave 43mm of bare conductor
• Fit the ME 48 die to an HT 131-C or B 131-C hydraulic crimper
• Place three crimps at even intervals along the barrel
• Finish by torquing the gland (body and dome nut) to 11 Nm

Copper conductors only. A licensed electrician working to Australian wiring rules should install, inspect and maintain this connector, and tensile check each finished crimp.

Q: Is the Powersafe SLD0015 rated for 800 amps?
A: Yes. It is an 800A connector, with a contact made up of 29 transfer bridges rated at 30A each. The usable continuous current still depends on the cable fitted and the installation environment.

Q: Which crimp die is needed for the SLD0015?
A: Phase 3 specifies the ME 48 hexagonal die for 240mm² cable, run in either the HT 131-C manual hydraulic crimper or the 14.4V B 131-C cordless unit, with three crimps along the contact.

Q: Will the SLD0015 connect to 660A Powerlock equipment?
A: The manufacturer states Powersafe connectors are compatible with 400A and 660A Powerlock, ITT Cannon, Litton VEAM and other Powerlock-style makes, provided the key positions match.
