Powersafe SLD0029 Line Drain 800A 300mm2 Crimp 22-32mm White Line 2 IP67

Description

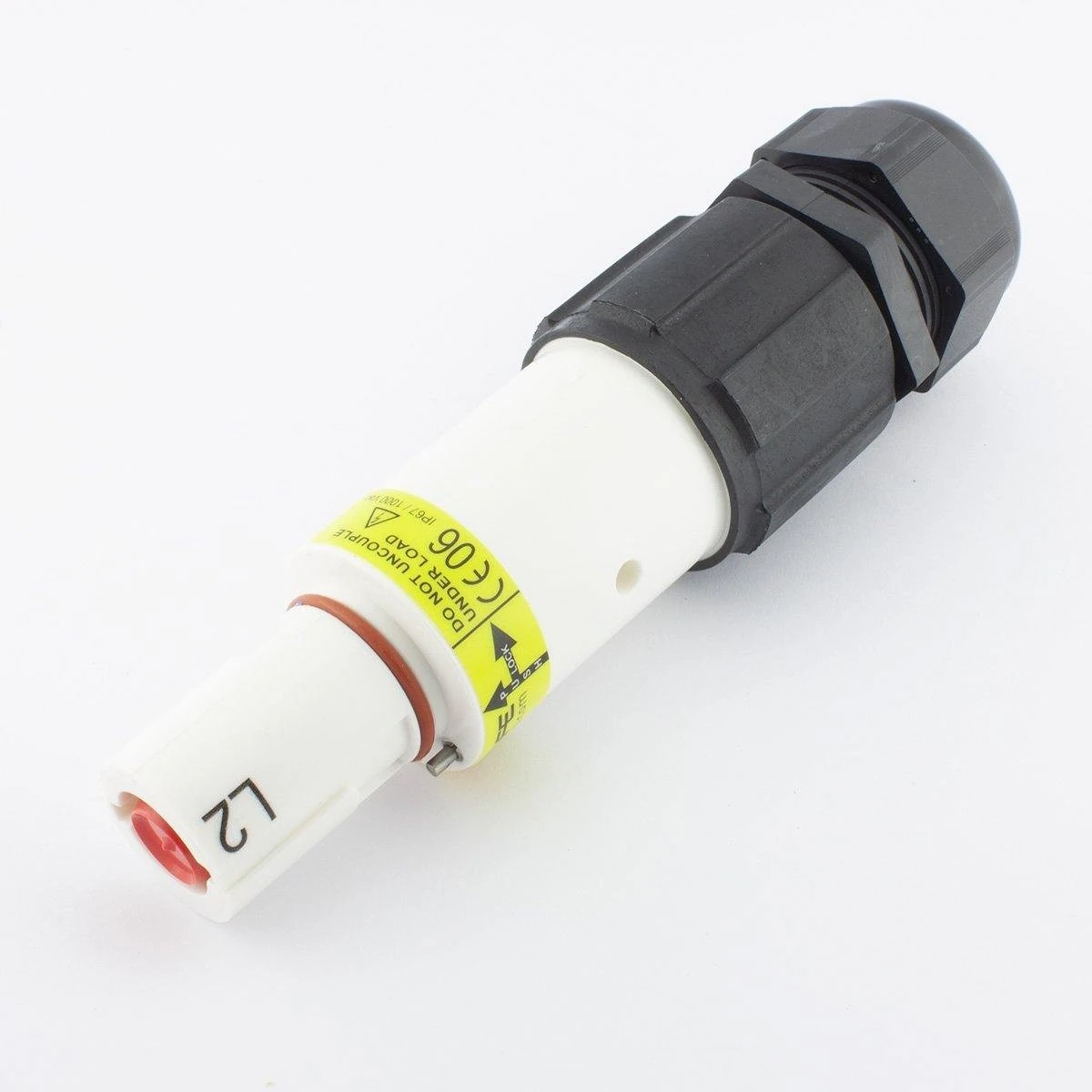

The 300mm² Line 2 drain, keyed white.

The Powersafe SLD0029 is an 800A series drain for the second phase, crimped to 300mm² copper cable. White and keyed to Line 2, it is a Powerlock-compatible single pole connector for the heaviest cable Powersafe line connectors accept.

Key Features

• White housing, Line 2 (L2) key position
• In-line drain from the Powerlock-compatible 800A series
• Female contact, enclosed by a male insulator
• Crimp termination on 300mm² copper cable
• M40B gland with 22–32mm cable clamping
• Operating voltage: 1000V AC
• Surge current 75kA, short circuit rating up to 35.5kA
• IP67, and IP2X finger-proof on the contact when unmated
• Flame retardant UL94-V0 shell in high temperature thermoplastic
• Contact plated in silver, more than 500 mating cycles

Get yours delivered fast, anywhere in Australia.

Heavy Cable, Clear Identification

L2 by design
On a set of five near-identical connectors, the SLD0029 is told apart two ways: its white colour and its Line 2 key. The key is the safeguard. It admits a Powersafe L2 source connector, line or panel mounted, and rejects every other line. After mating, the secondary lock stays engaged until someone uses a release key.

800A contact, 300mm² cable
Phase 3 builds its 800A connectors for 240mm² and 300mm² cable around a contact with 29 transfer bridges, 30A per bridge, 870A in all. Treat 800A as the maximum continuous rating; the manufacturer makes it subject to cable choice and environmental factors.

Mind the gland range
This part comes with the M40B gland, which clamps 22–32mm. Confirm your 300mm² cable's overall diameter is within that window so the gland can seal and hold the cable.

Crimping notes

• Prepare 43mm of bare conductor
• Use an ME 60 hexagonal die in the HT 131-C or B 131-C hydraulic crimper
• Make three crimps at regular intervals on the contact
• Finish the gland at 11 Nm, body and dome nut

Copper conductors only. Fitting and ongoing inspection should be done by a licensed electrician in accordance with Australian wiring rules, and each crimp tensile tested.

Q: How do I identify the Powersafe SLD0029?
A: It is white and keyed to Line 2. A Powersafe L2 source connector is the only thing it mates with.

Q: What size cable does the SLD0029 terminate?
A: 300mm² copper cable, by crimp, with an overall diameter of 22–32mm to suit the M40B gland.

Q: How many amps is the SLD0029 rated for?
A: It is an 800A series connector. The contact totals 870A across its 29 transfer bridges, and the continuous figure depends on the cable and environment.
