Powersafe SLS0025 Line Source 800A 300mm2 Crimp 22-32mm Green Earth IP67

Description

Earth source for 300mm² cable.

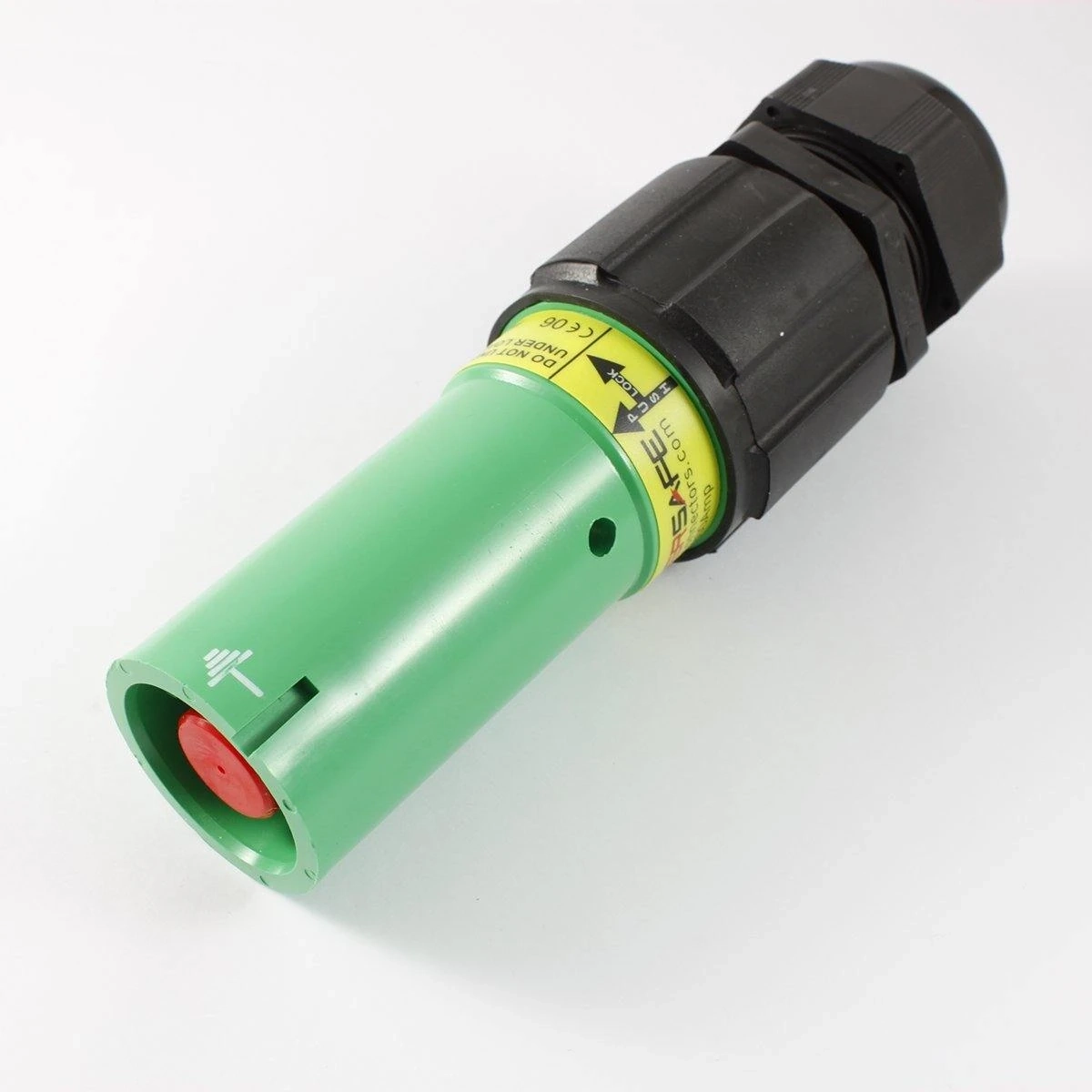

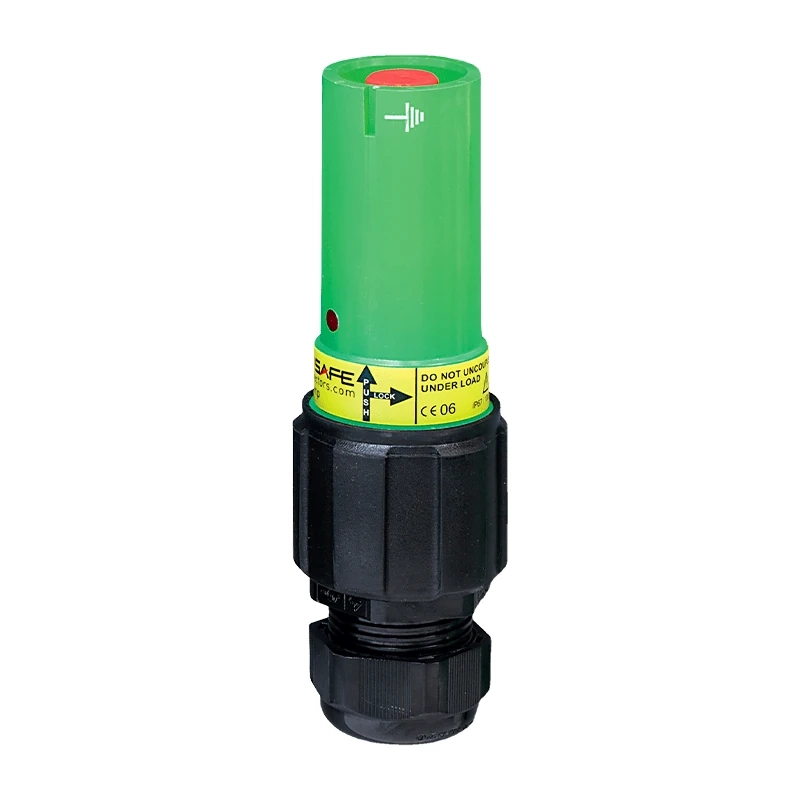

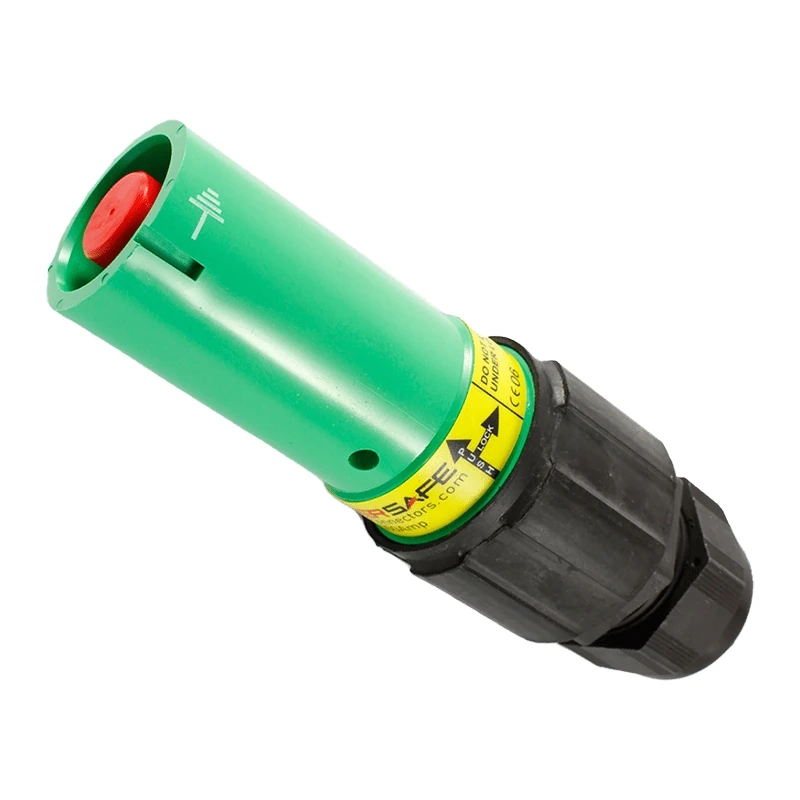

The Powersafe SLS0025 is the green Earth source connector for 300mm² copper cable, the largest size in the Powersafe line range. An 800A series, Powerlock-compatible connector, it puts a crimped male contact and a keyed, locking coupling on the earth's supply end.

Key Features

• Earth (E) source, green
• Male contact set in a female insulator
• 800A series Powerlock-compatible connector
• Takes 300mm² copper cable on a crimp contact
• M40B gland for cable of 22–32mm OD
• Operating voltage, 1000V AC
• Surge current of 75kA; short circuit rating reaching 35.5kA
• Uncoupled: IP2X finger-proof. Mated: IP67
• High temperature thermoplastic shell with UL94-V0 flame retardancy
• Silver plating on the contact; above 500 mating cycles

Grab yours online, dispatched fast to anywhere in Australia.

Earthing the Biggest Leads

Partnered with an Earth drain
The SLS0025 is the source half of an earth connection. Its Earth key matches a Powersafe Earth drain, whether that is the 300mm² line drain SLD0025 on an adjoining lead or an Earth panel drain, and blocks any phase or neutral connector.

Measure the cable first
This connector is supplied with an M40B gland that clamps 22–32mm. 300mm² cables vary in overall diameter, so confirm yours falls inside that range; the gland has to close on the cable to give strain relief and a seal.

Why the source is shrouded
In a Powersafe connection the source normally carries the live side, with the drain receiving. The male contact is therefore recessed and IP2X finger-proof while uncoupled. When mated, the connection is IP67 rated and a secondary lock holds it until released with a key.

Crimp data for 300mm²

• Conductor strip length of 43mm
• ME 60 hexagonal die
• Three crimps spaced equally along the contact
• HT 131-C or B 131-C hydraulic crimp tool
• Gland body and dome nut taken up to 11 Nm

Intended for copper conductors only. Have qualified electricians carry out the installation, inspection and maintenance, as Phase 3 requires, in keeping with local and national electrical codes. Phase 3 also recommends a tensile test of the completed crimp.

Q: What does the Powersafe SLS0025 connect to?
A: A Powersafe Earth drain, such as the SLD0025 line drain or an Earth panel drain.

Q: Will the SLS0025 fit my 300mm² cable?
A: Yes, provided the cable's overall diameter is within the 22–32mm clamping range of the M40B gland.

Q: Which die crimps the SLS0025?
A: An ME 60 hexagonal die, the size Phase 3 gives for 300mm² cable. The contact takes three crimps.
