Powersafe PP01194 Protection Cap Panel Source 500A/800A Rubber IP44

Description

Cap for a panel-mounted source.

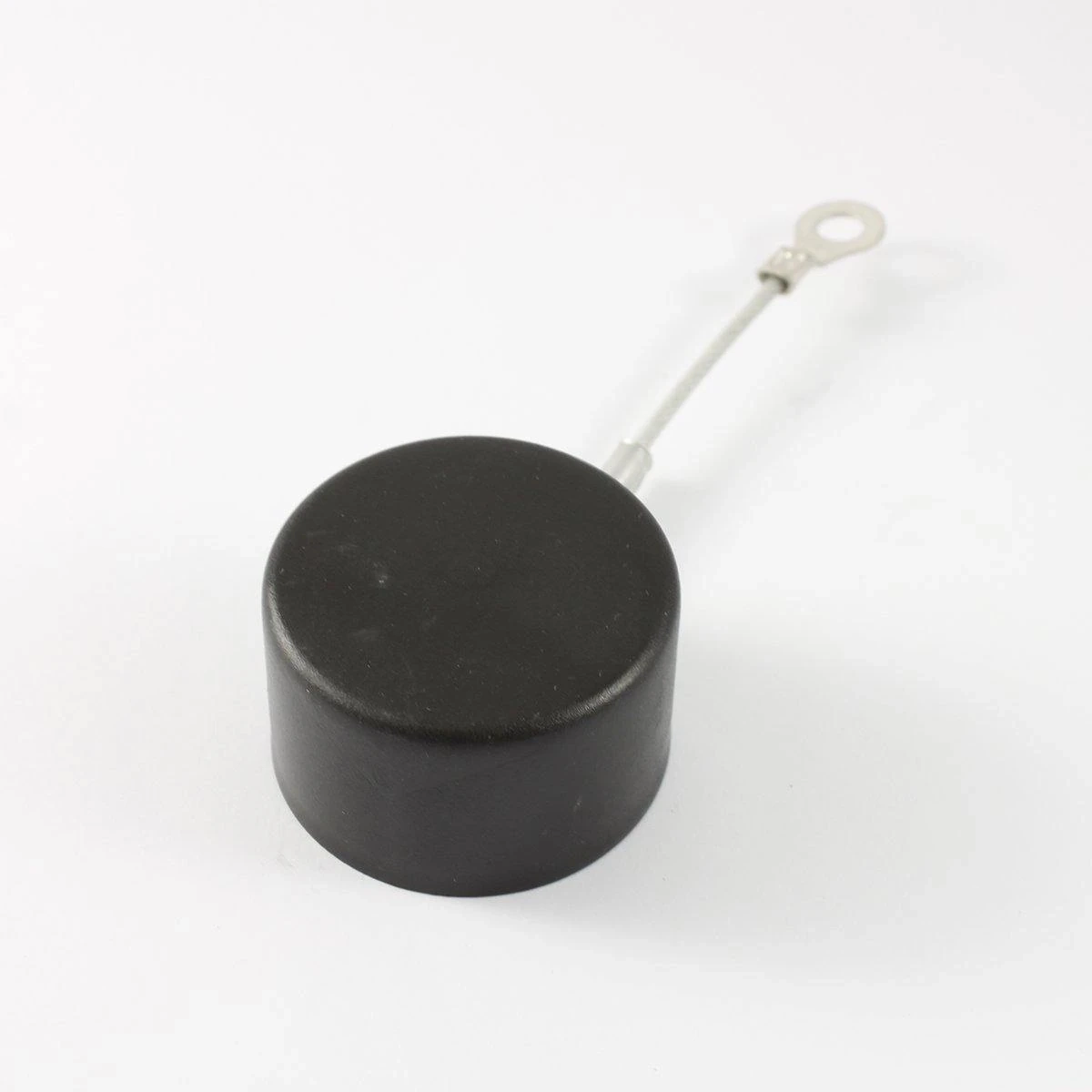

The Powersafe PP01194 protection cap is made for Powerlock-compatible Powersafe panel sources, covering both the 500A T5 and the 800A T8 versions. It is black rubber, rated IP44, and closes off the face of a panel source when no drain is plugged in.

Key Features

• Suits Powersafe panel source connectors
• Listed for 500A (T5) and 800A (T8) panel sources
• Black, made of rubber
• IP44 rating
• Single position cap
• Covers the source face against moisture, dirt and abrasion
• RoHS compliant

Shop now and we'll dispatch it anywhere in Australia.

A Cover for Fixed Equipment

Where panel sources sit
Phase 3 makes its Powersafe panel mounts as industrial sockets, naming generators, switchgear, batteries, busbars and power distribution boxes as the equipment they go on. A panel source is the version with the male contact in a female insulator, and Phase 3 describes sources as usually being the live end. When a lead is unplugged, the source on the panel face is left open.

What the cap is for
The IP67 rating of a Powersafe connection applies to a mated pair. Phase 3's brochure lists protective caps as optional, for shielding uncoupled connectors from moisture, dirt and abrasion, and the PP01194 is the supplier's cap for panel sources. The source has its own IP2X finger-proof rating when unmated, cap or no cap.

• T5 panel sources: 500A, silver plated brass contact
• T8 panel sources: 800A, silver plated copper contact
• Source gender only; it is not a drain cap

Related caps
The PP01194 is one of a set of black rubber IP44 caps from the same supplier. The PP01192 and PP01193 are listed for line sources and line drains respectively, so pick the cap that matches both the mounting type and the gender of the connector being covered. Phase 3 states that its connectors should be installed, inspected and maintained only by qualified electricians who observe the local and national electrical codes. Panel connectors arrive fully assembled and mount directly to equipment, with an M12 threaded post for the cable lug at the rear.

Q: Which connectors is the Powersafe PP01194 made for?
A: Powersafe panel source connectors, in the 500A T5 and 800A T8 versions.

Q: Can the PP01194 be used on a line source?
A: It is listed for panel sources. For line sources, the listed cap is the PP01192.

Q: What is the PP01194 made from?
A: Black rubber. It is rated IP44 and RoHS compliant.
