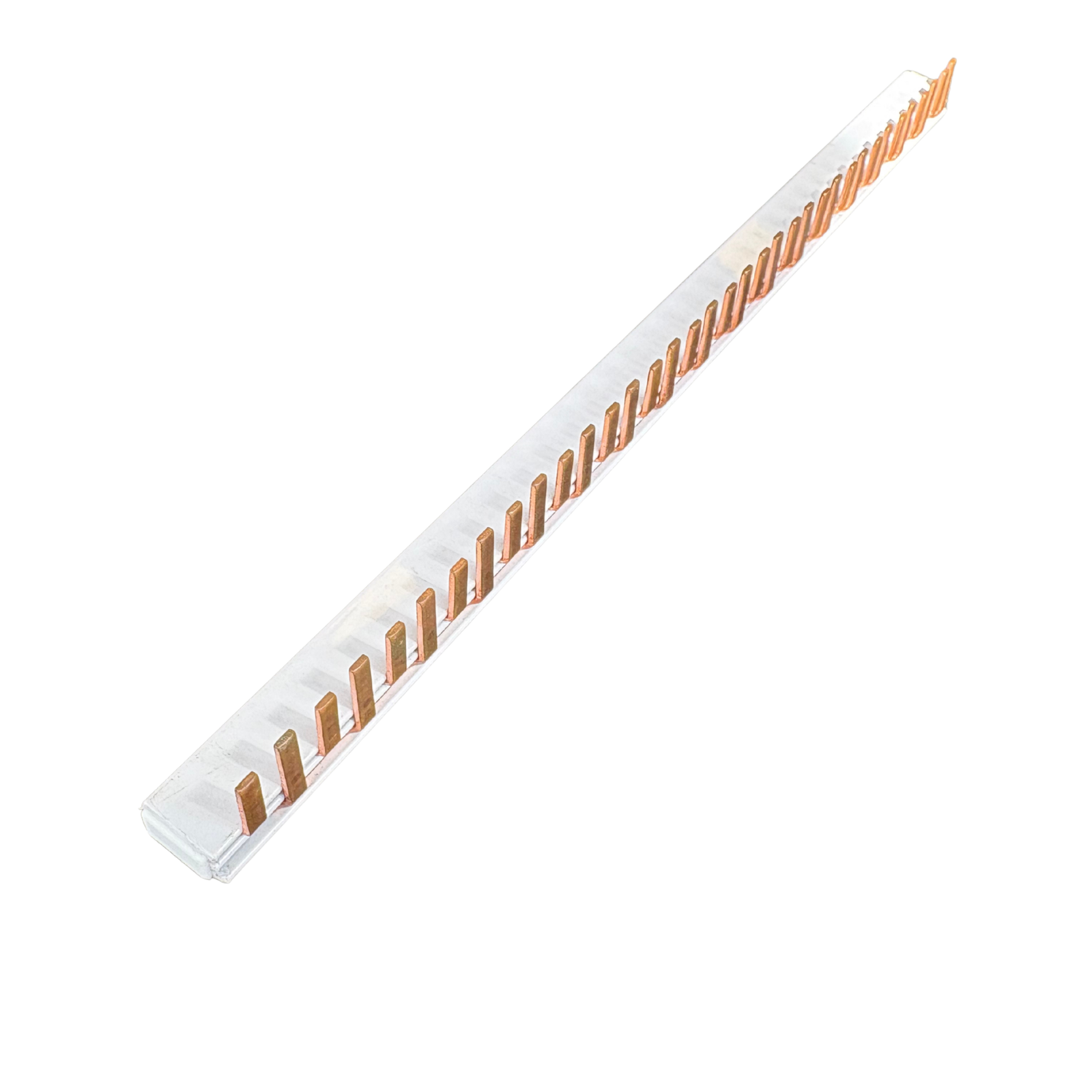

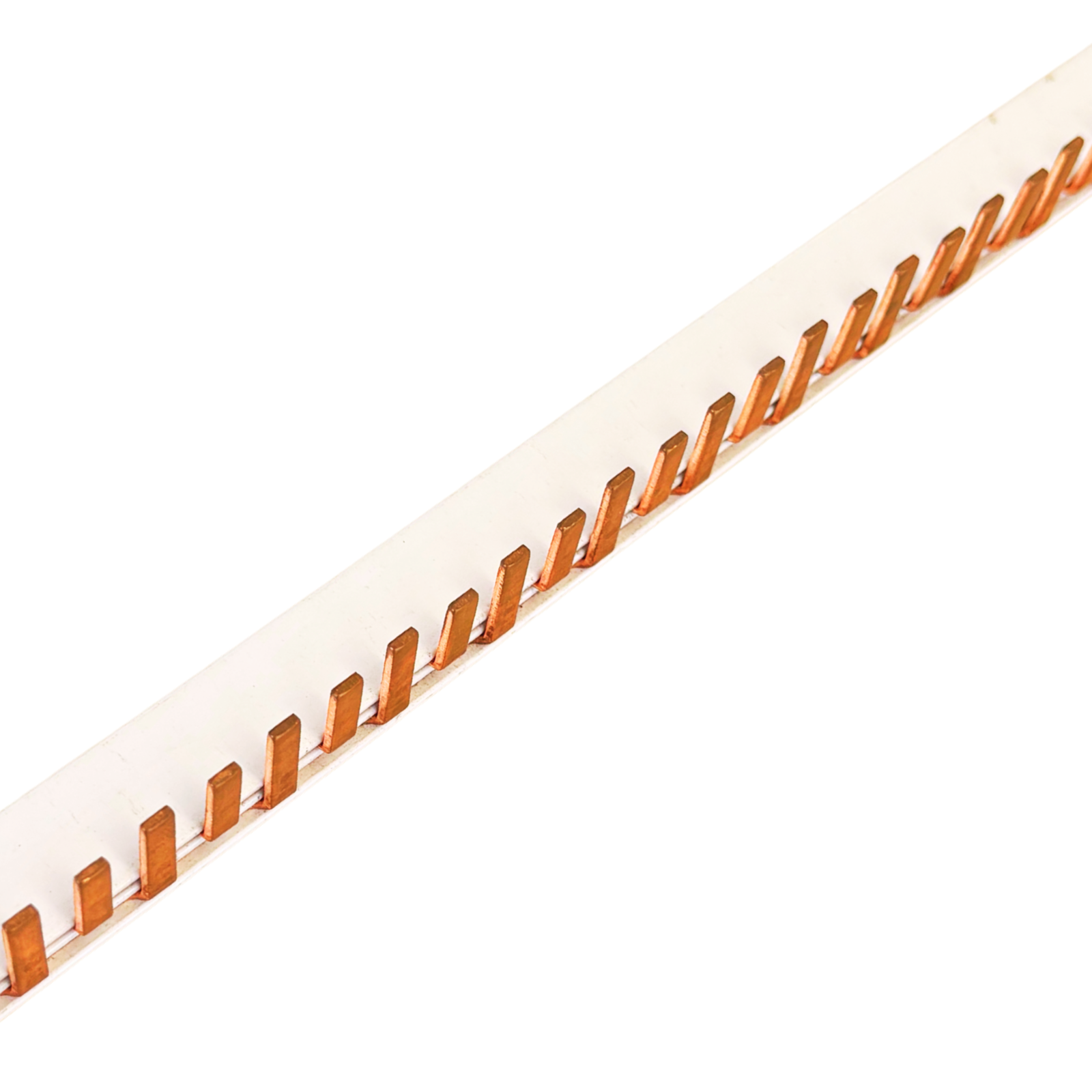

Tesla BUSBARRCDMCB12M Insulated Pin Busbar 1 Pole plus Neutral 63A 12 Module 400V for 6kA RCBO

Description

Link your RCBO board in one clean bar.

The Tesla insulated pin busbar joins a row of Tesla 6kA RCBO safety switches into a single tidy connection, replacing the looped conductors an electrician would otherwise cut and terminate by hand. Rated 63A across 12 modules, it distributes 1 pole plus neutral on 400V AC boards.

Key Features

• 1 pole plus neutral pin (comb) busbar
• Rated current: 63A
• 12 module width, 24 pins
• 400V AC rated
• A type, suits the Tesla RCBO 6kA safety switch range
• Fully insulated body
• Dimensions: 220 x 80 x 20 mm (L x W x H)

Buy online now for fast dispatch right across Australia.

Why it Matters

Cleaner, Faster Switchboard Assembly
A pin busbar replaces the hand-cut links an electrician would otherwise run between every device. On domestic and commercial boards that means quicker fit-off, fewer loose terminations, and a board that is far easier to inspect and fault-find later. With 24 pins spanning 12 modules, a single busbar feeds a full row of single-module RCBOs from one incoming supply, keeping the assembly neat even on a busy board. The result is a repeatable, professional connection that saves time on every install and makes future maintenance simpler.

Built for the Tesla 6kA RCBO Range
This is the A type busbar, dimensioned to align with the module pitch and terminal layout of Tesla's 6kA RCBO safety switches. Matching the busbar to the device range helps ensure correct seating and consistent contact across every pole. The two-conductor pin arrangement carries the active pole and the neutral together, so each single-module RCBO on the row receives both connections from the one bar. Because the busbar is dimensioned specifically for this 6kA range, there is no need to improvise links or adapt a bar from another system.

Insulated for Safe Work
The insulated body shrouds the live comb between devices, reducing exposed conductor inside a populated enclosure and supporting safe work practices during install and later maintenance. At 63A and 400V AC, it is built to sit at the heart of a working board and carry current across the full 12-module width. The 24-pin comb spans the whole row in a single piece, so there are no joins or gaps along the length of the bar.

Is this busbar compatible with Tesla 6kA RCBOs?
Yes. It is the A type busbar made to suit the Tesla RCDM RCBO 6kA range, and it aligns with the module pitch and terminal layout of those safety switches for correct seating.

How many devices does the 12 module busbar connect?
It spans 12 modules with 24 pins, so it can feed a full row of single-module RCBOs from a single incoming supply instead of looping conductors between each device.

What is the current rating of this pin busbar?
It is rated at 63A and 400V AC, carrying 1 pole plus neutral across the full 12-module width of the bar.
