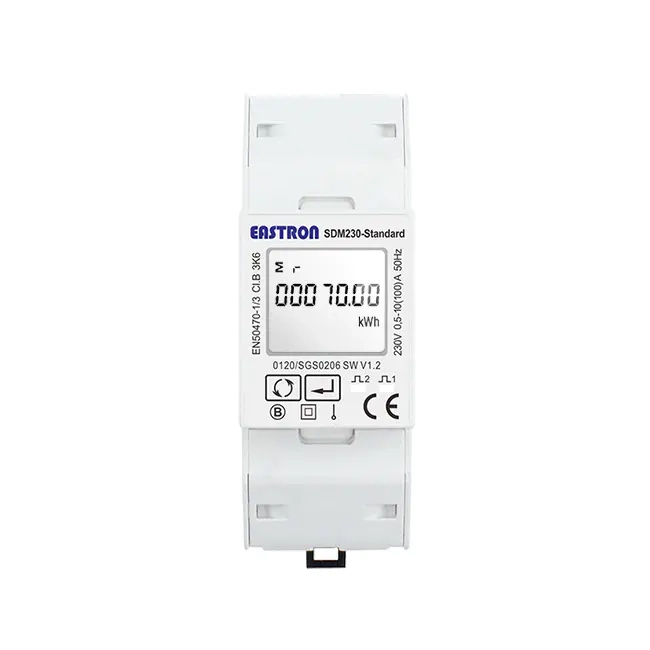

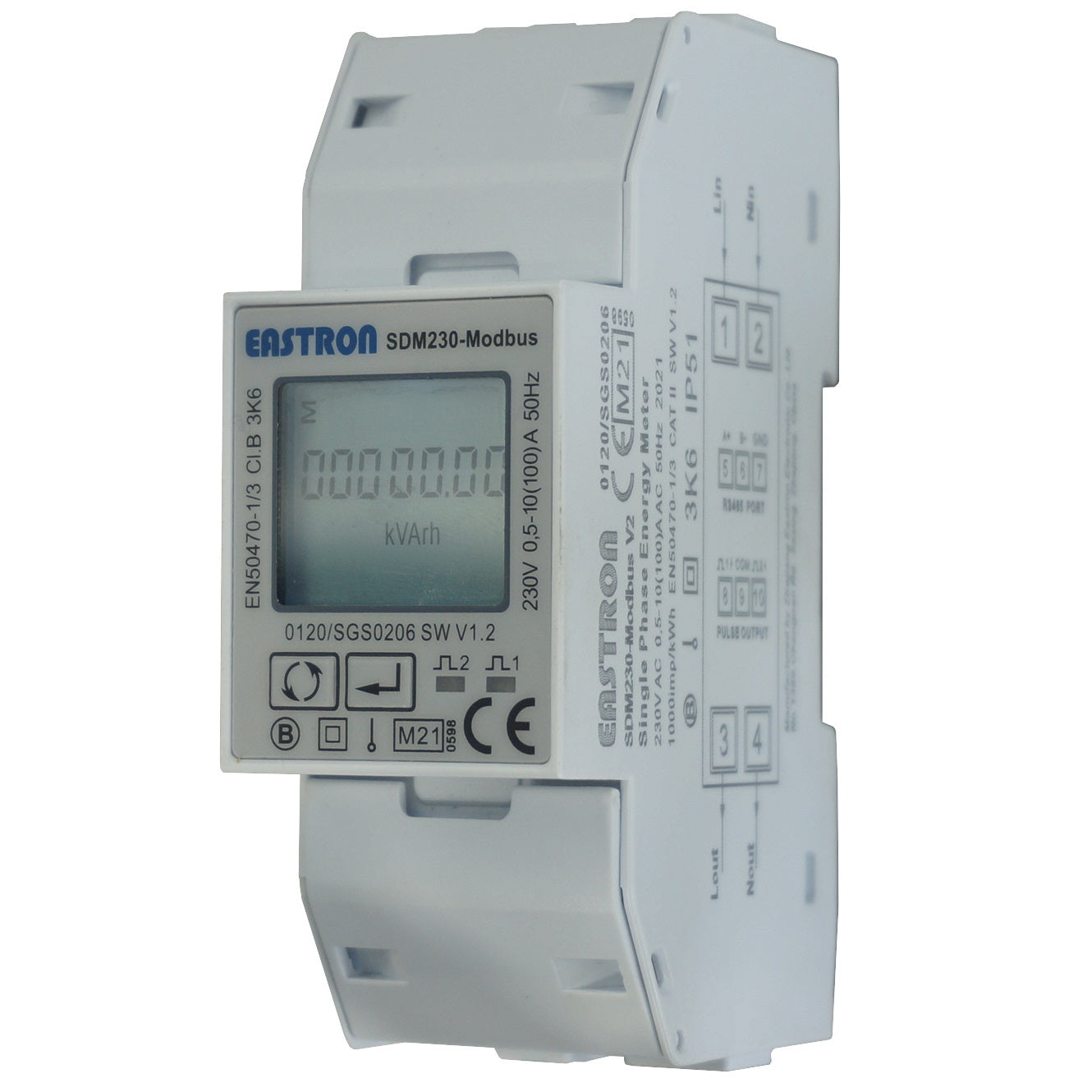

Eastron SDM230 Single Phase 100 Amp Kilowatt Hour Meter DIN Rail Digital Modbus

SKU: easdigmet230mb

Product Image Gallery

Product image thumbnail for SKU easdigmet230mb
Product image thumbnail for SKU easdigmet230mb

Product Pricing

$226.36 (ex-GST)

$249.00 (inc-GST)

$249.00

$226.36

(inc-GST)
(ex-GST)

Stock and Availability

  • ⚫︎ In Stock

Electrotraders USPs

Fast Shipping, Trusted by Government, Easy Returns, Free Shipping over $200


Description

SDM230 - Modbus - 100A Input Modbus RS485 (RTU) & Pulsed Outputs

SDM230Modbus is an advanced digital single phase multi-function energy meter, which measures up to 100A direct load.

The SDM230modbus has 15 measured parameters and 4 different kWh measurment modes which has been designed around the development of regeneration, such as solar and battery storage.

The means the pulsed output can be configured for the following.

  • Import +Export = Total kWh
  • Export - Import =Total kWh (Nett)
  • Import = Total kWh
  • Export = Total kWh

A communication port is provided, RS485 Modbus RTU and Communication parameters are password protected in the setup mode.

Features:

  • MID Certified (B and D)
  • 100A single phase input
  • Two module DIN rail mounted
  • Highly visible backlit display
  • Simple menu navigation
  • Built in Modbus and pulsed outputs or optional Mbus interface
  • Four kWh measurment modes for PV and battery storage

Displayed Parameters:

  • Phase to Neutral Voltage (V
  • Phase Current (A
  • Frequency (Hz
  • Power Factor ( PF)
  • Power max demand (MD kW)
  • Active power (kW)
  • Reactive power (kVAr)
  • Apparent power (kVA)
  • Import active power (kWh)
  • Export active power (kWh)
  • Total active power (kWh)
  • Imprt reactive power (kVAh)
  • Export reactive power (kVAh)
  • Total reactive power (kVAh)
  • Hours Run

Certifications & Standards:

  • MID: EN50470-1 & EN50470-3 Class B
  • EMC: EN61326-1 & EN61326-2-3
  • LVD: EN61010-1 & EN61010-2-3

Product Specifics:

  • Eastron
  • Product Code SDM230Modbus-Mid-V2 (SLX)
  • Single Phase Electronic Digital Energy Meter
  • Class 1 Accuracy
  • 36mm width (2 modules)
  • DIN Rail Mounted
  • LCD with backlit
  • 2 Pulse Output
  • Bi-directional Measurement
  • Max. 100A Direct Load
  • MID approved
  • RS485 and MODBUS RT
  • Handling Time: 3 - 5 Days

(easdigmet230mb)

Specifications

SKU easdigmet230mb
Brand Eastron
