Tesla BUSBARRCDMCB18M Insulated Pin Busbar 1 Pole plus Neutral 63A 18 Module 400V for 6kA RCBO

Description

Wire your RCBO board faster and neater.

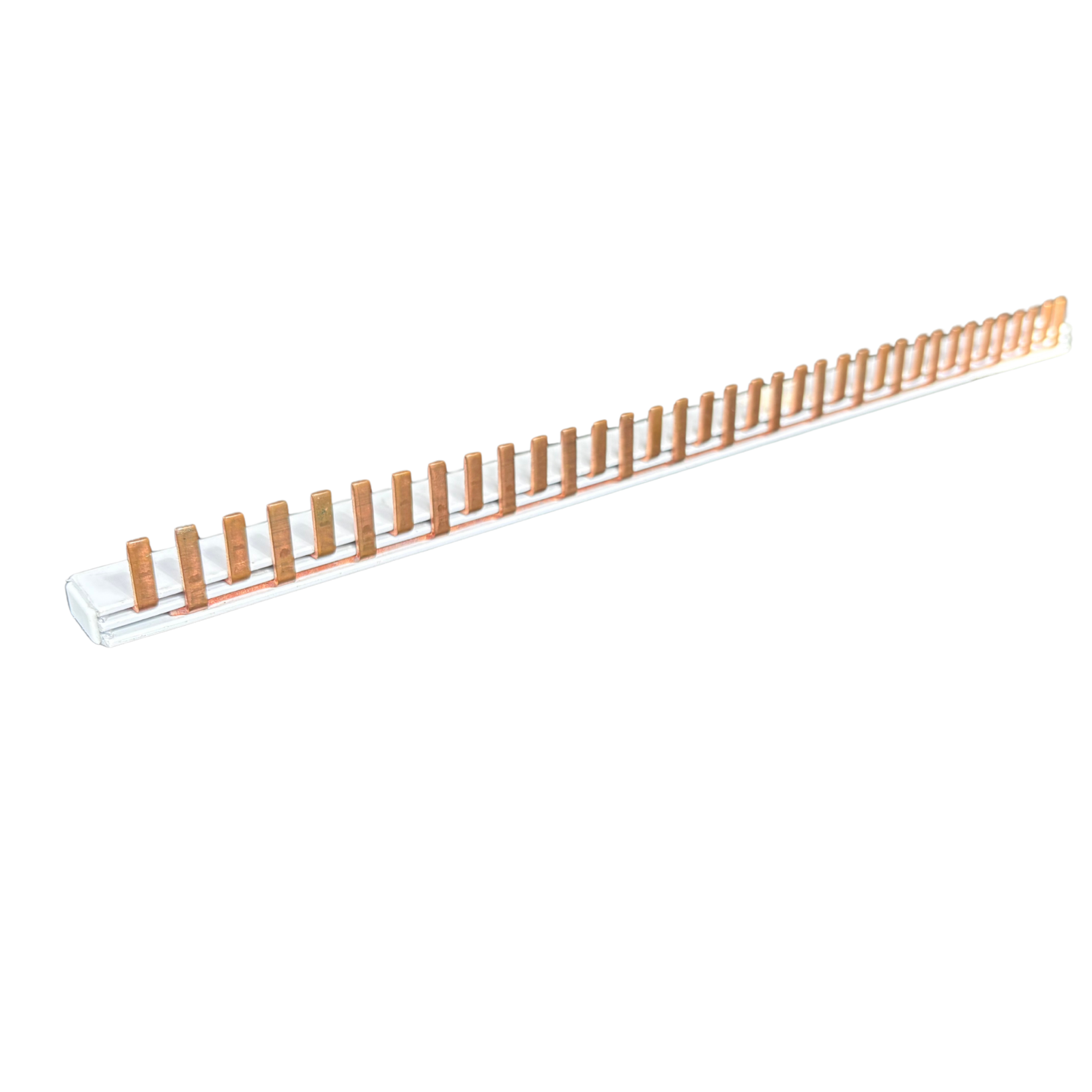

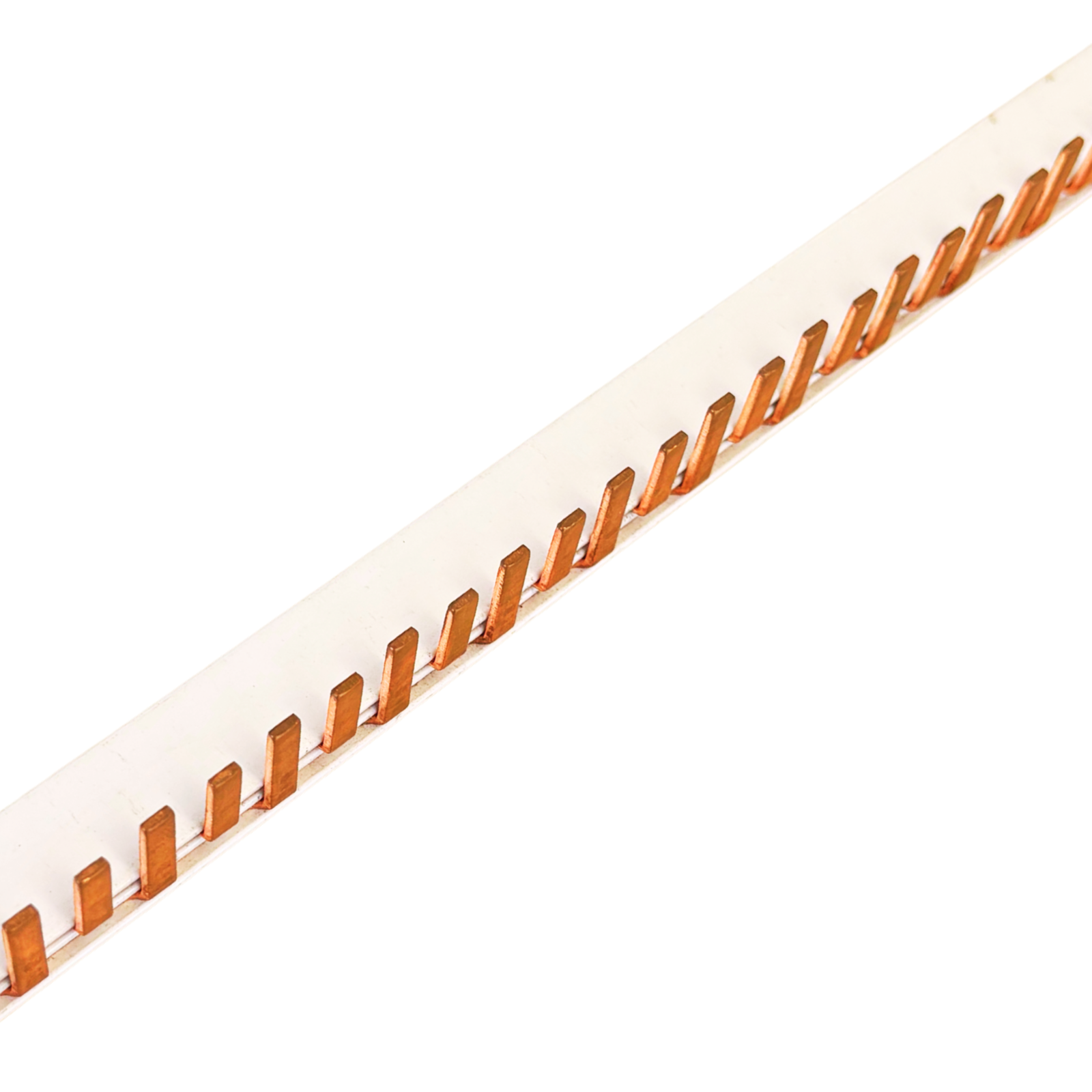

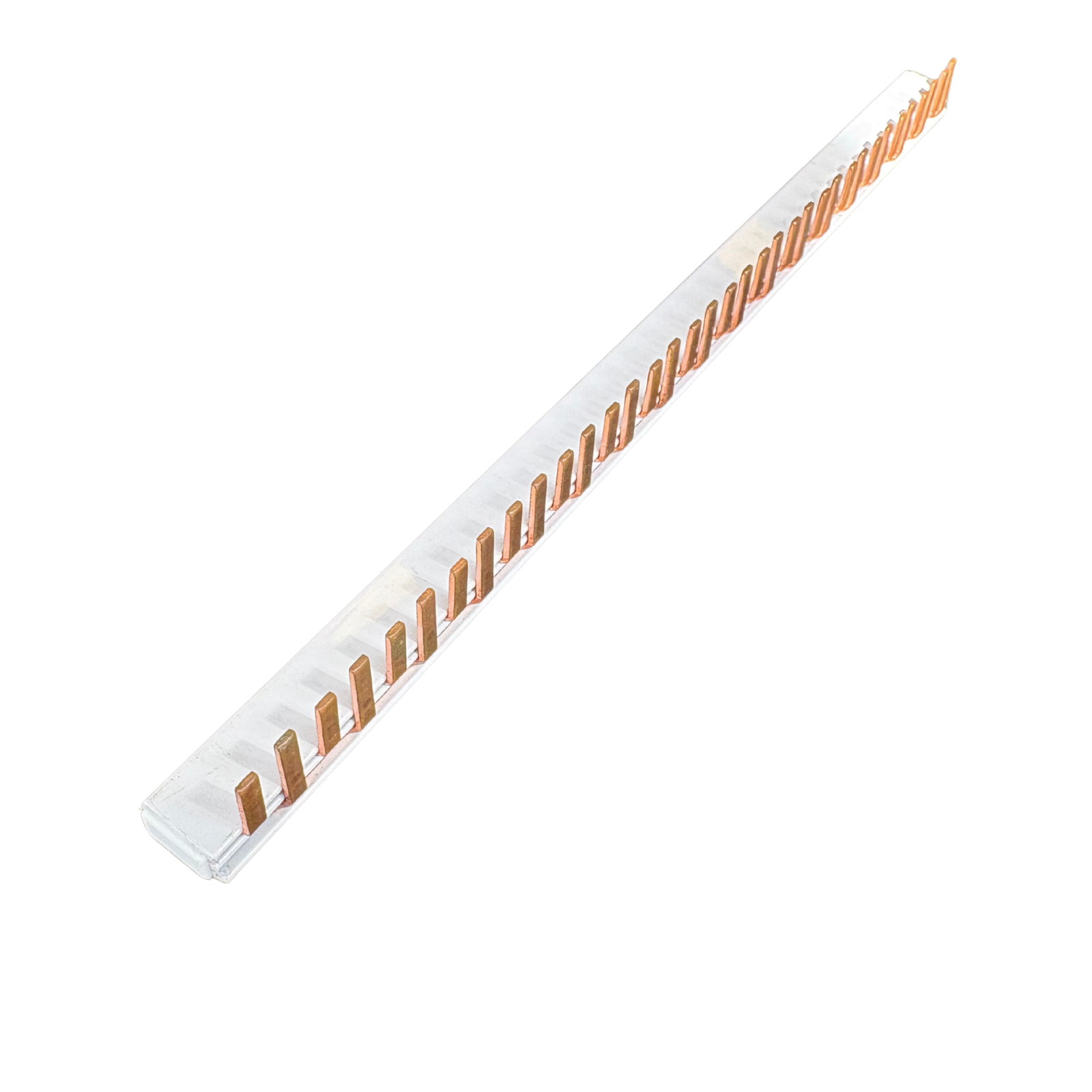

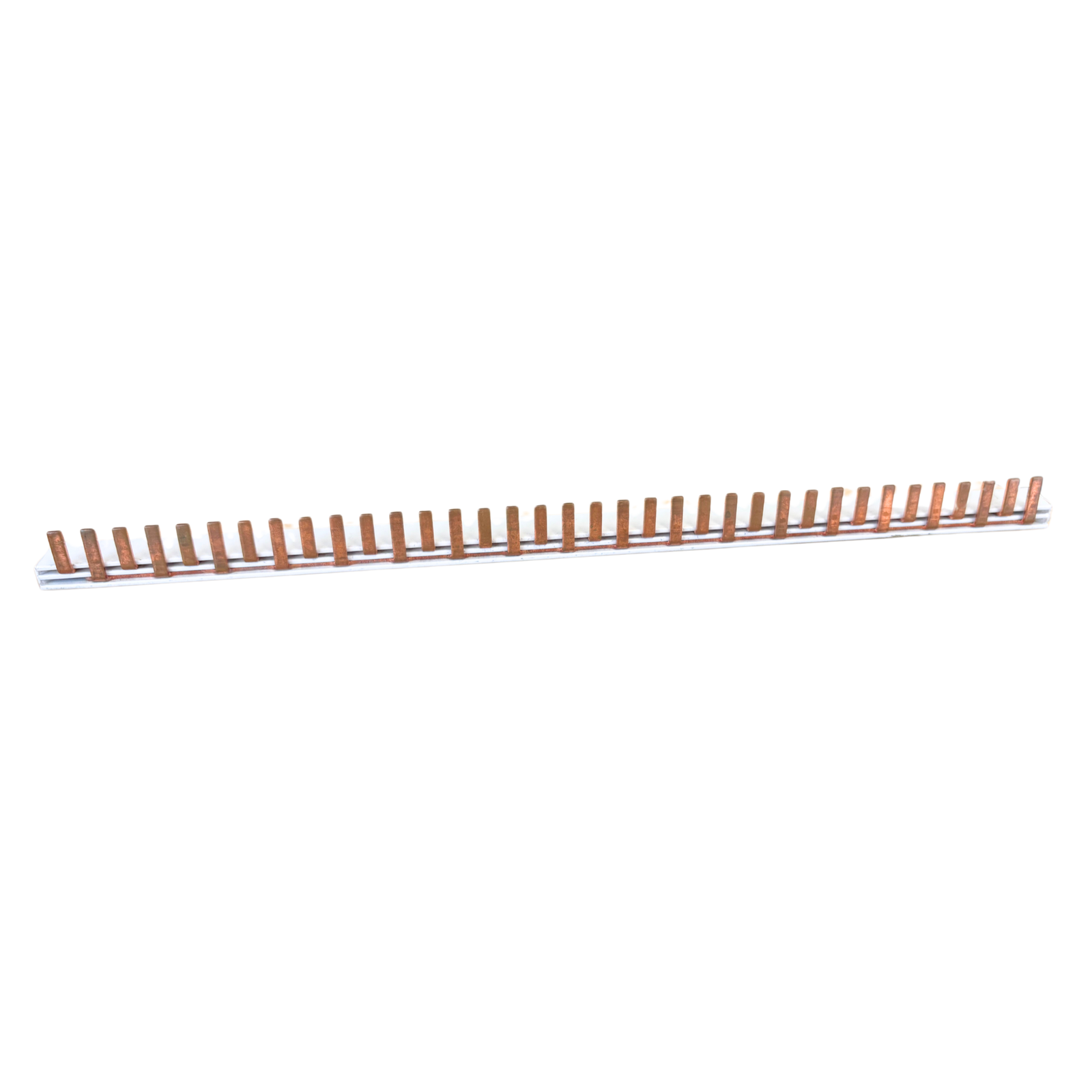

The Tesla insulated pin busbar links a row of Tesla 6kA RCBO safety switches into one tidy connection, replacing the looped conductors an electrician would otherwise cut and terminate by hand. Rated 63A across 18 modules, it distributes 1 pole plus neutral on 400V AC boards.

Key Features

• 1 pole plus neutral pin (comb) busbar
• Rated current: 63A
• 18 module width, 36 pins
• 400V AC rated
• Fully insulated body
• Suits the Tesla RCBO 6kA safety switch range
• Dimensions: 332 x 80 x 20 mm (L x W x H)

Order online now for fast dispatch Australia-wide.

Why it Matters

Cleaner, Faster Switchboard Assembly
A pin busbar replaces dozens of hand-cut links between devices. For electricians building or upgrading domestic and commercial boards, that means quicker fit-off, fewer loose terminations, and a board that is far easier to inspect and fault-find later. With 36 pins spanning 18 modules, a single busbar feeds an entire row of single-module RCBOs from one incoming supply, so the assembly stays neat even on a densely populated board.

Built for the Tesla 6kA RCBO Range
This is the A-type (6kA) busbar, dimensioned to align with the module pitch and terminal layout of Tesla's 6kA RCBO safety switches. Matching the busbar to the device range helps ensure correct seating and consistent contact across every pole. The two-conductor pin arrangement carries the active pole and the neutral together, so each single-module RCBO on the row receives both connections from the one bar.

Insulated for Safe Work
The insulated body shrouds the live comb between devices, reducing exposed conductor inside a populated enclosure and supporting safe work practices during install and later maintenance. At 63A and 400V AC, it is built to sit at the heart of a working board and carry current reliably across the full 18-module width. Because the connection is made across a single pre-formed bar rather than many separate links, there are fewer individual joints to loosen over the life of the board.

Is this busbar compatible with any RCBO?
It is designed for the Tesla RCBO 6kA (A-type) range at 18 module width. Always confirm module pitch and pole configuration against your specific devices before install.

What does "1 pole plus neutral" mean here?
The busbar carries one active pole and the neutral across the row, giving 36 pins over 18 modules so each single-module RCBO receives both its connections from the one bar.

What is the current rating?
The busbar is rated at 63A on a 400V AC board.
