Powersafe PP00487 Reduction Sleeve Kit R16 16mm2 with Rubber Bushing

Description

Six sleeves, down to 16mm².

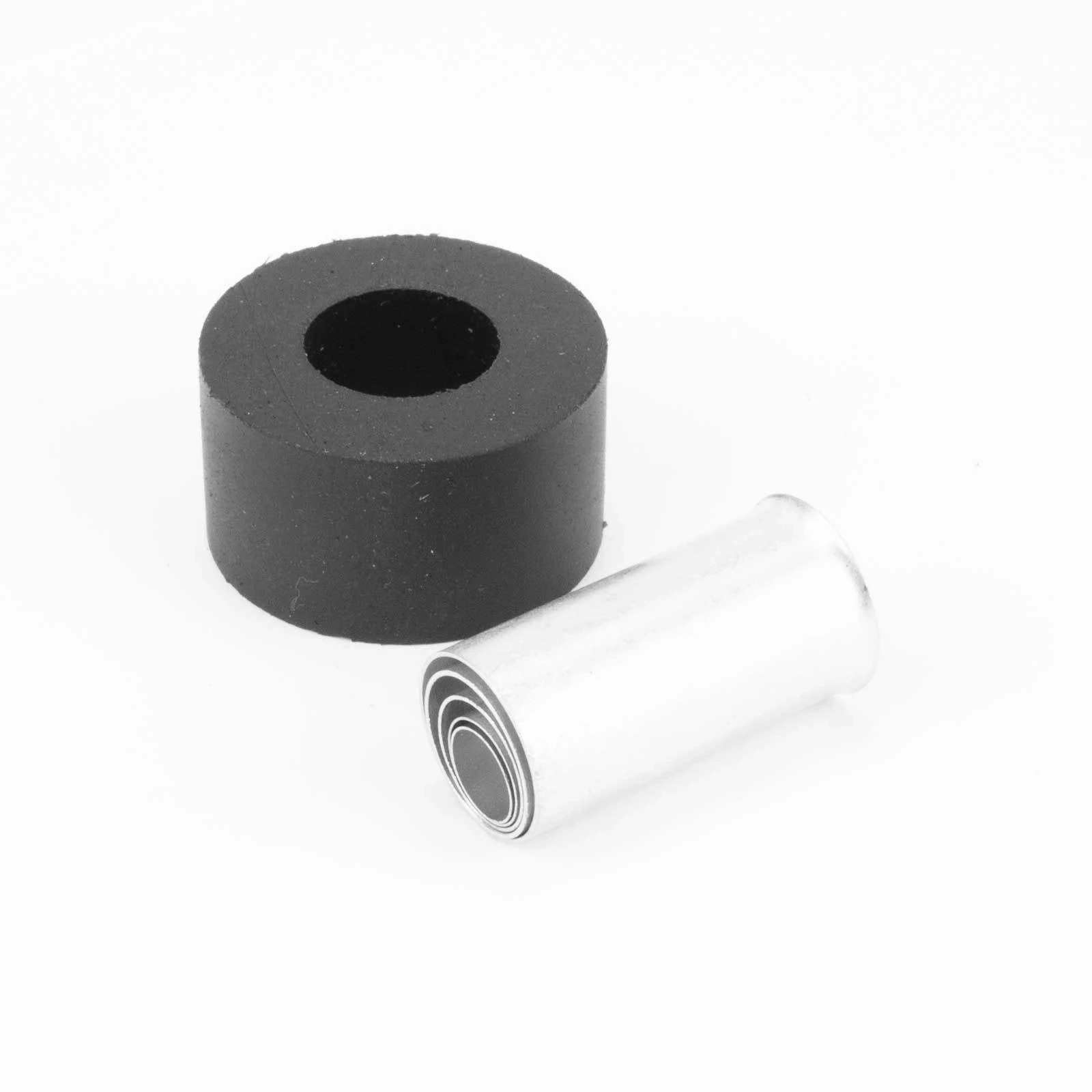

The Powersafe PP00487 is the R16 reduction sleeve kit for Powerlock-compatible Powersafe set screw connectors. It holds six reduction sleeves, R95 down to R16, plus a rubber bush for 5.5–10.5mm OD insulation, so a 120mm² set screw contact can take cable as small as 16mm².

Key Features

• Six reduction sleeves: R95, R70, R50, R35, R25 and R16
• Rubber bush for the R16 kit, 5.5–10.5mm OD insulation
• For Powersafe S120 set screw connectors
• Smallest sleeve in the kit: R16, for 16mm² cable
• Sleeves nest together for a stepped reduction
• Set screws tightened with a 5mm Allen bit

Shop now for fast delivery to anywhere in Australia.

What Is in the Kit

Sleeves from R95 to R16
Each sleeve in the kit is also listed on its own by the supplier: R95 (PP00006), R70 (SCP0129), R50 (SCP0130), R35 (SCP0131), R25 (SCP0157) and R16 (PP00383). Together they take a Powersafe set screw contact from its 120mm² size down through every step to 16mm².

The rubber bush
The kit also contains the rubber bush made for the R16 reduction kit (PP01626), sized for an insulation outside diameter of 5.5–10.5mm.

• R95, R70, R50, R35, R25, R16 reduction sleeves
• Rubber bush, 5.5–10.5mm OD insulation
• No R120 sleeve is listed in the kit

How the sleeves go on
Under Phase 3's assembly guide, the sleeve sequence starts at R120 and continues through each size until the one matching the cable. The sleeves fit inside one another to form a gradual reduction span with their flared ends against the cable insulation. Cable and sleeves are then pushed fully into the contact and the set screws tightened with a 5mm Allen bit. The guide's own table runs from 95mm² to 25mm² and gives no strip length or set screw torque for 16mm² cable. Phase 3 treats its recommended procedure as essential to a sound set screw termination, limits the line connectors to copper conductors, and expects qualified electricians to install, inspect and maintain them within local and national electrical codes.

Q: Which sleeves come in the Powersafe PP00487?
A: Six: R95, R70, R50, R35, R25 and R16, plus a rubber bush for 5.5–10.5mm OD insulation.

Q: What is the smallest cable the PP00487 is for?
A: 16mm², using the R16 sleeve.

Q: Is an R120 sleeve included?
A: No R120 is listed in the kit, although Phase 3's guide starts each sleeve sequence with R120.
