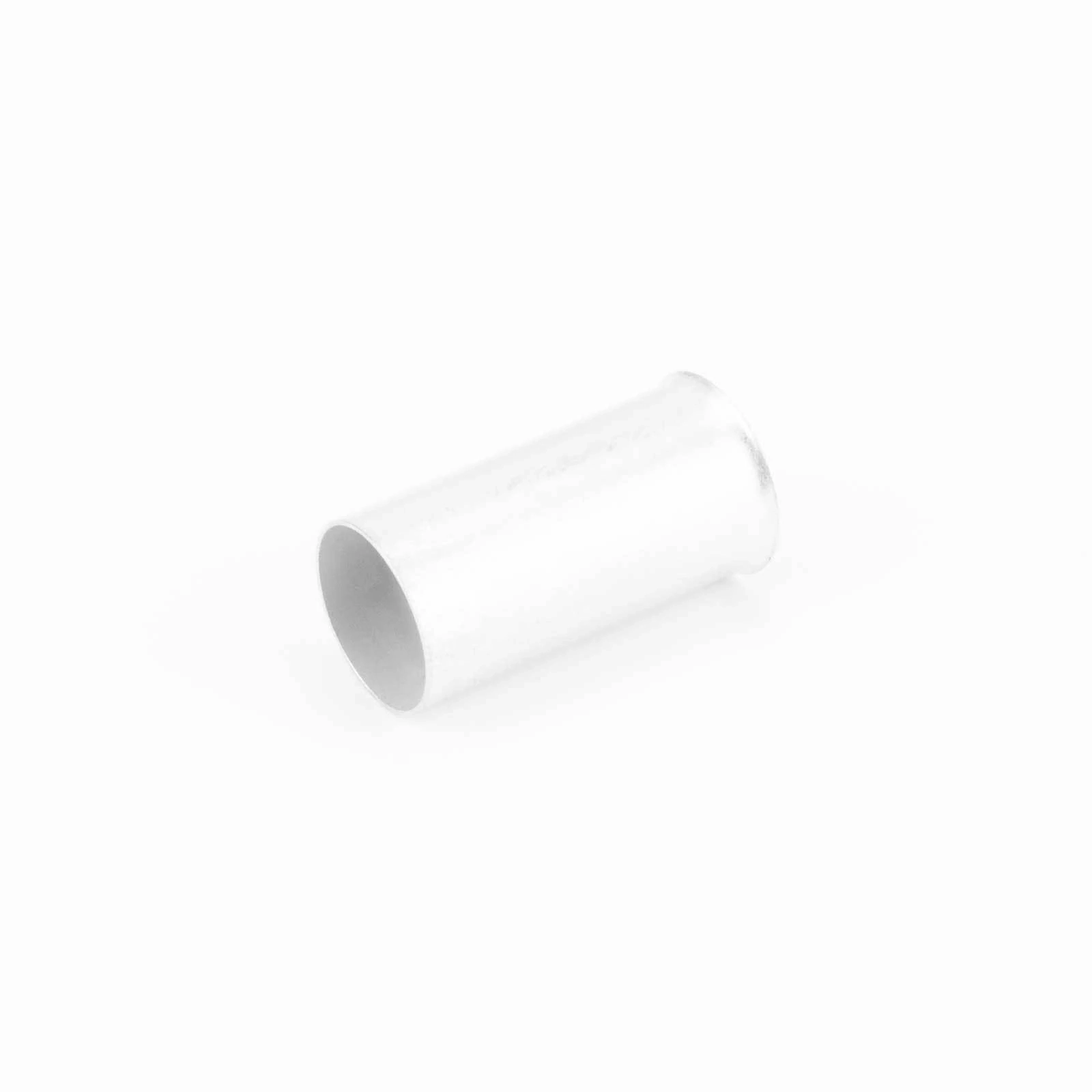

Powersafe PP00006 Reduction Sleeve S120 R95 95mm2

Description

R95 sleeve for S120 set screw contacts.

The Powersafe PP00006 is the R95 reduction sleeve, Phase 3's 95mm² size. In Powerlock-compatible Powersafe S120 set screw connectors it lets 95mm² cable be terminated, and it is also part of the sleeve sequence for every smaller size.

Key Features

• R95 reduction sleeve, listed for the S120 contact
• Sized for 95mm² cable
• Fits Powersafe S120 set screw connectors
• Fitted after R120 in Phase 3's sleeve sequence
• Part of the sequence for 70, 50, 35 and 25mm² cable too
• 33mm strip; 10.5 Nm minimum on the set screws

Grab yours for quick delivery anywhere in Australia.

Where the R95 Sits in the Sequence

The first reduction step
Phase 3's set screw contact takes 120mm² cable, and reduction sleeves reduce its rear cable bucket for smaller conductors. The guide's sleeve table starts at R120 for every reduced size, and R95 is the next size down. For a 95mm² cable the sequence is simply R120 and R95, with strip length and set screw torque unchanged from the smaller sizes in the table.

Needed for smaller cable as well
Phase 3's rule is that every sleeve down to the one recommended for the cable must be fitted. That puts the R95 into the sequence for 70mm², 50mm², 35mm² and 25mm² cable as well, between the R120 and the smaller sleeves. The same R95 size therefore appears in all five sequences in the guide's table, from 95mm² down to 25mm².

• 95mm²: R120, R95
• 70mm²: R120, R95, R70
• 50mm²: R120, R95, R70, R50
• 35mm²: R120 down to R35
• 25mm²: R120 down to R25

Fitting notes
Strip 33mm of cable jacket, slide the sleeves on over the strands in sequence with their flared ends against the insulation, and push cable and sleeves fully into the contact. The set screws are tightened with a 5mm Allen bit to a 10.5 Nm minimum. Phase 3 calls the recommended procedure essential to a satisfactory termination, specifies copper conductors only, and requires qualified electricians, working to local and national electrical codes, for installation, inspection and maintenance.

Q: What size is the Powersafe PP00006?
A: R95, the reduction sleeve for 95mm² cable in Powersafe S120 set screw connectors.

Q: Is the R95 used on its own?
A: No. For 95mm² cable Phase 3 fits it together with the R120 sleeve.

Q: Which connectors take the PP00006?
A: Powersafe set screw connectors in the S120 (120mm²) series, the ones Phase 3's reduction sleeves are made for.
