Powersafe PP01192 Protection Cap Line Source 500A/800A Rubber IP44

Description

Cover for an uncoupled line source.

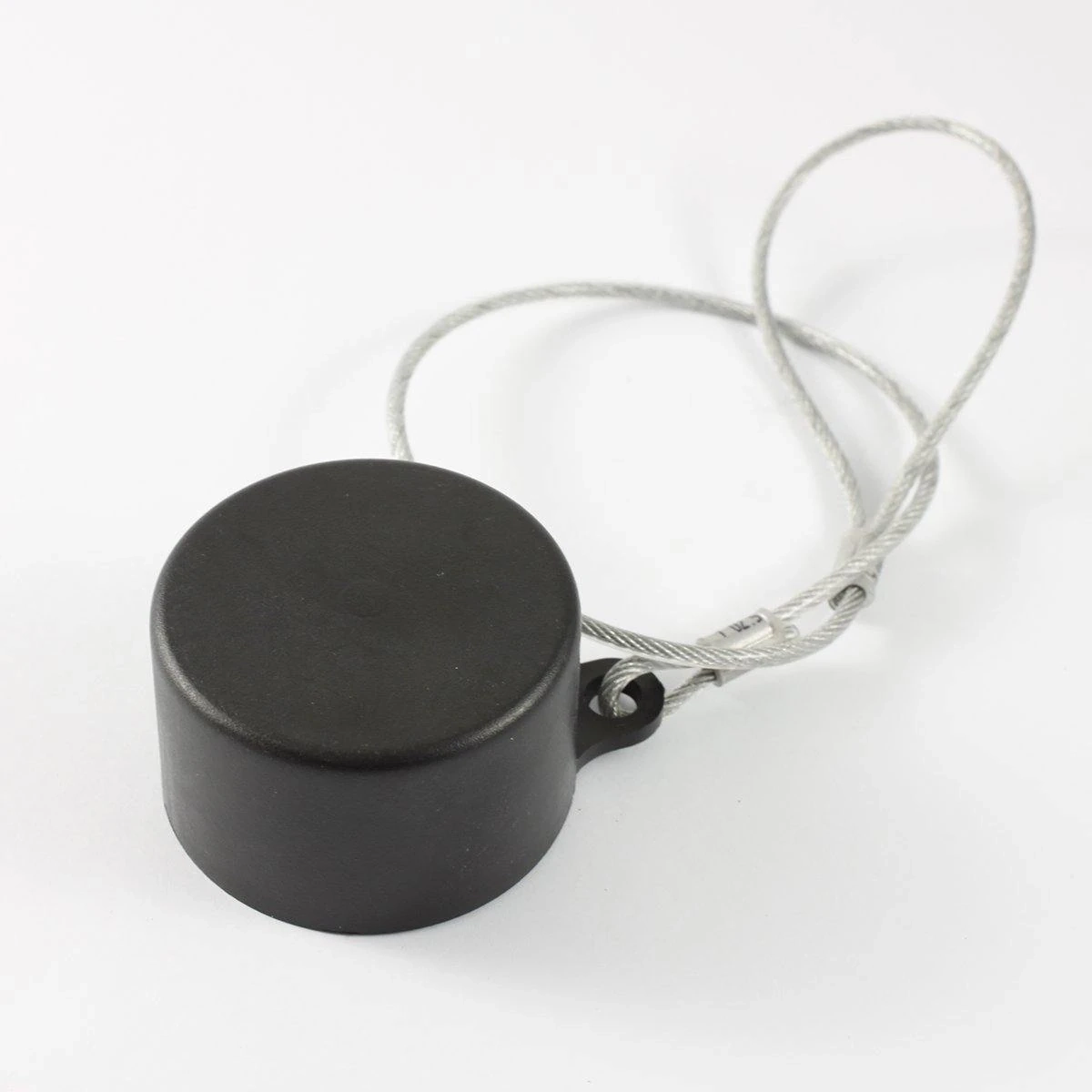

The Powersafe PP01192 is a black rubber protection cap made for Powerlock-compatible Powersafe line source connectors in the 500A and 800A ratings. Rated IP44, it covers the source end while the connector is uncoupled.

Key Features

• Protection cap for Powersafe line sources
• Suits the 500A and the 800A line source ratings
• Made from rubber, coloured black
• IP44 rated
• Single position, for one single pole connector
• Guards against moisture, dirt and abrasion when uncoupled
• RoHS compliant

Order now for fast delivery anywhere in Australia.

Protection Between Connections

Why a cap is offered
Powersafe connectors are rated IP67, but that rating applies when a source and drain are mated. Once they are uncoupled, the mating face of each connector is open. Phase 3 lists protective caps as an optional part of the Powersafe range, intended to protect connectors from moisture, dirt and abrasion when uncoupled. The PP01192 is the cap for the line source side, and Phase 3's brochure notes that caps and other accessories are available alongside the connectors themselves.

Which connectors it suits
A line source is the cable-mounted Powersafe connector built around a male contact, set in a female insulator; Phase 3 treats the source as normally the live end. Powersafe line sources are made in a 500A series and an 800A series, and the PP01192 is supplied for both. It is listed for line mounted sources, and it is not a drain cap.

• 500A line sources: 120mm² set screw and 185mm² crimp versions
• 800A line sources: 240mm² and 300mm² crimp versions
• Fits the source end only

Keeping the source ready to use
A cap does not replace the connector's own protection: an unmated Powersafe source is rated IP2X finger-proof against electric shock in its own right. What the cap adds is a cover over the mating face, keeping moisture, dirt and abrasion off it for as long as the source stays uncoupled. Phase 3 reserves installation, inspection and maintenance of its connectors for qualified electricians, and local and national electrical codes apply.

Q: Which connectors is the Powersafe PP01192 for?
A: Powersafe line source connectors in the 500A and 800A ratings. It is a source cap, not a drain cap.

Q: What is the PP01192 made of?
A: Black rubber, with an IP44 rating.

Q: When should the PP01192 be fitted?
A: Whenever the line source is uncoupled. Phase 3 offers caps to protect connectors from moisture, dirt and abrasion in that state.
