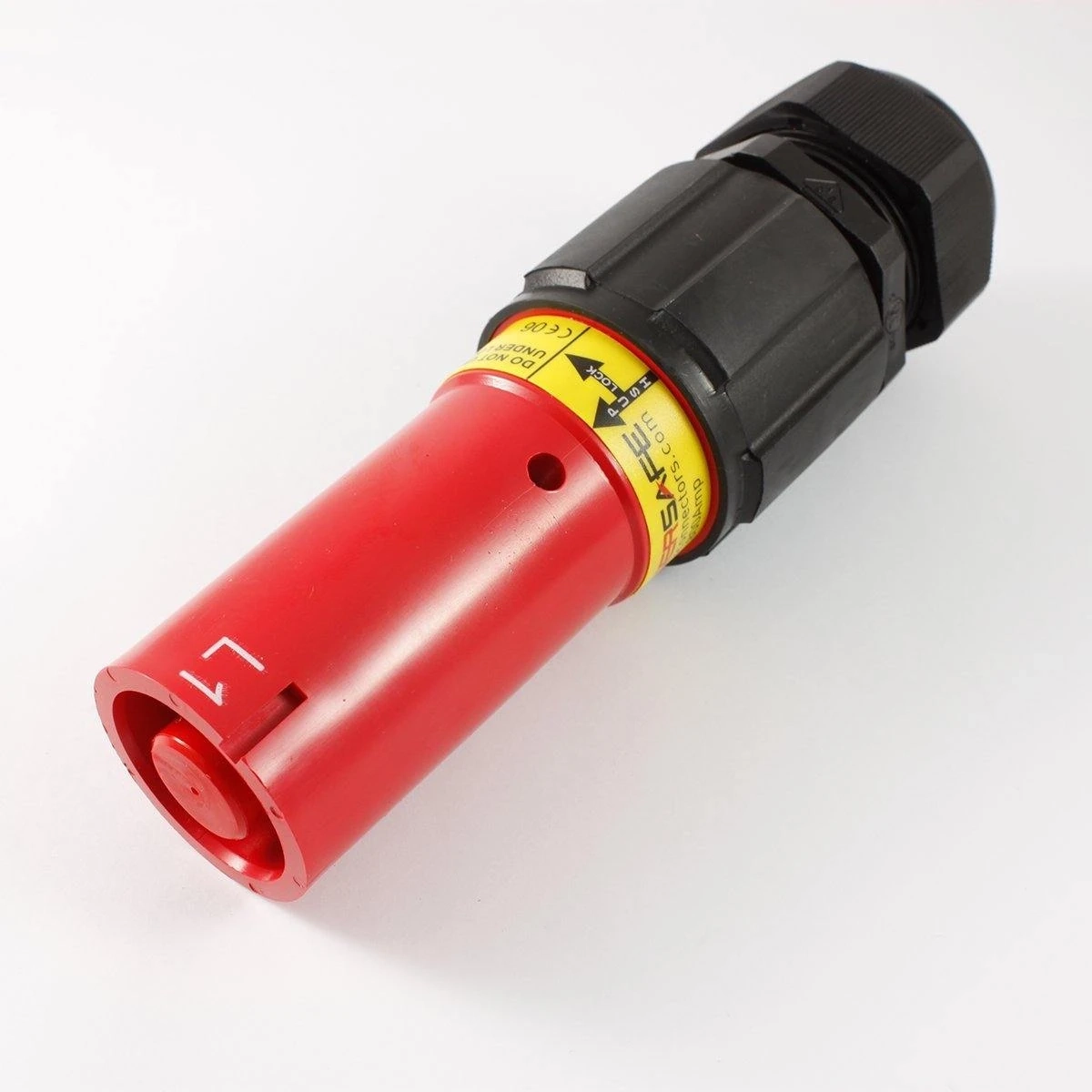

Powersafe SLS0017 Line Source 800A 240mm2 Crimp 22-32mm Red Line 1 IP67

Description

Line 1 source for 800A on 240mm².

The Powersafe SLS0017 is the red Line 1 source connector of the 800A Powersafe series, a Powerlock-compatible design for 240mm² copper cable. It is the feeding end of the first phase, with a crimped male contact, L1 keying and a locked coupling.

Key Features

• Red, with the Line 1 (L1) key
• Source gender: male contact, female insulator
• 800A series connector, Powerlock-compatible
• Crimps onto 240mm² copper cable
• M40B gland takes 22–32mm cable OD
• Voltage: 1000V AC operating
• Short circuit rating to 35.5kA, surge current 75kA
• IP2X finger-proof uncoupled; IP67 once mated
• UL94-V0 thermoplastic body, high temperature
• Silver plate on the contact; mating life beyond 500 cycles

Secure yours now with fast Australia-wide delivery.

Starting the Phase Sequence

L1 key, L1 drain
The SLS0017 is cut to the Line 1 key. The only connector that will take it is a Powersafe L1 drain, which may be cable mounted or built into a panel. That mechanical check keeps Line 1 from being landed on the wrong phase, the neutral or the earth.

Why 800A
For 240mm² and 300mm² cable Phase 3 supplies its 800A connector, whose contact carries current across 29 transfer bridges rated at 30A apiece (870A in total). The 800A figure is a maximum continuous rating that varies with cable choice and environmental factors.

Handling the live end
Source connectors are usually live, so Powersafe encloses the male contact in a female insulator rated IP2X finger-proof. After coupling, the secondary lock holds until the release key is used, and the joint is IP67 rated.

Crimp it correctly

• 43mm of conductor exposed
• ME 48 hexagonal die, as listed for 240mm² cable
• Three crimps at equal intervals
• Hydraulic crimper: Phase 3 names the HT 131-C and the B 131-C
• Gland finished to 11 Nm (body and dome nut)

Use this contact with copper conductors only. Under Phase 3's instructions, fitting, inspection and maintenance belong to qualified electricians applying local and national electrical codes, and each crimp should be tensile tested.

Q: What line is the red Powersafe SLS0017?
A: Line 1. It is an L1-keyed source and mates only with a Powersafe L1 drain.

Q: How is the 800A rating of the SLS0017 achieved?
A: The contact has 29 transfer bridges, and at 30A per bridge that makes 870A. The continuous current you can draw is still set by the cable and its environment.

Q: What is the gland size on the SLS0017?
A: M40B, clamping cable from 22mm to 32mm overall diameter.
