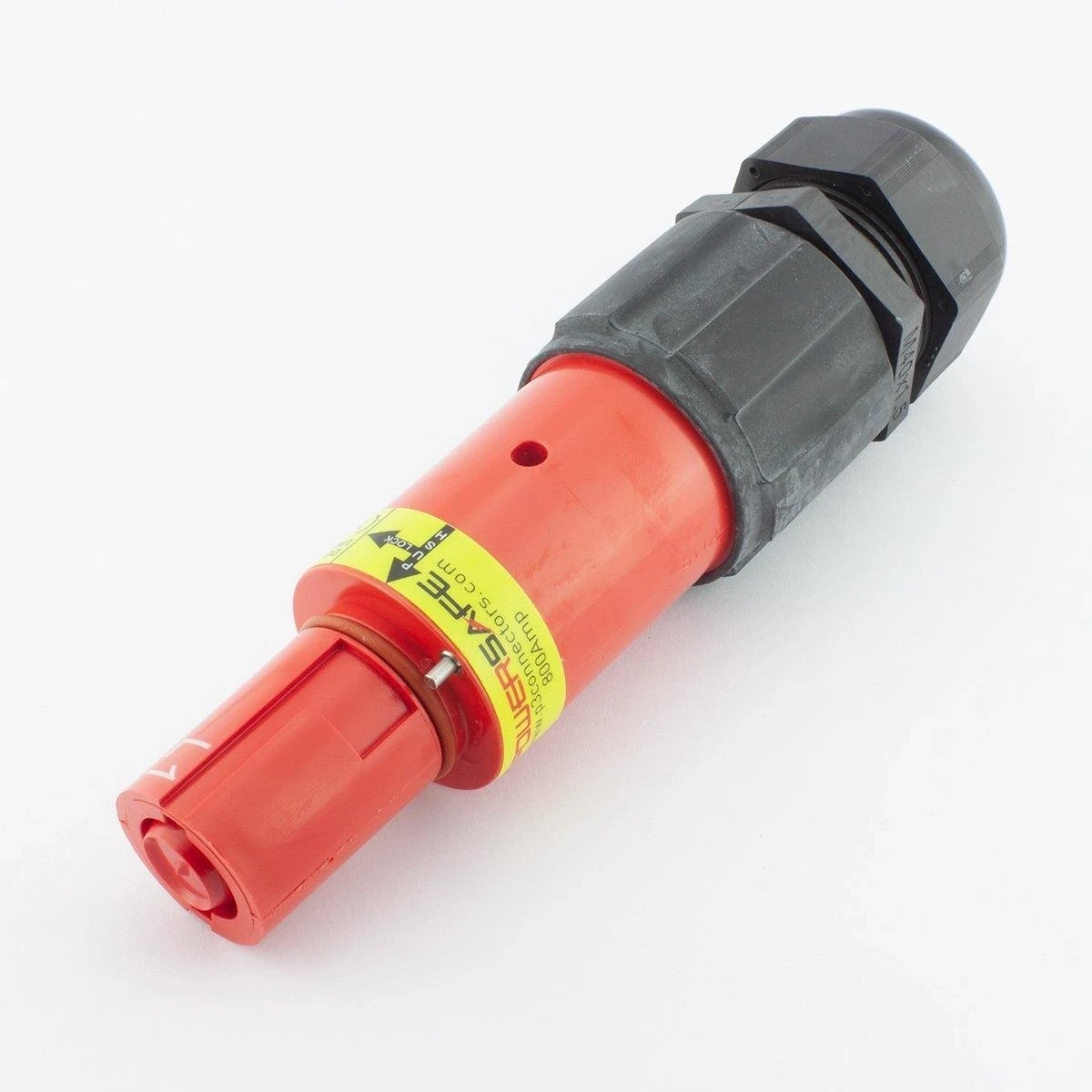

Powersafe SLD0017 Line Drain 800A 240mm2 Crimp 22-32mm Red Line 1 IP67

Description

First phase, 800A, crimped and keyed.

The Powersafe SLD0017 puts Line 1 of a Powerlock-compatible single pole set onto 240mm² copper cable. This red 800A drain uses a hydraulically crimped contact, a fixed termination suited to the heaviest phase leads in the Powersafe range.

Key Features

• Red body keyed to Line 1 (L1)
• 800A series line drain, Powerlock-compatible
• Female contact, male insulator (drain gender)
• Crimp termination onto 240mm² copper cable
• M40B gland for cable 22–32mm in overall diameter
• Operating voltage of 1000V AC
• 35.5kA maximum short circuit rating; 75kA surge
• IP67 against dust and water, IP2X finger-proof when apart
• UL94-V0 flame retardant, high temperature thermoplastic
• Silver plating on the contact; rated past 500 mating cycles

Browse the specs below and order online for fast Australian delivery.

High Current on the Right Phase

Thirty amps, twenty-nine times over
The 800A figure comes from the contact itself. Phase 3 arranges 29 transfer bridges around it and rates each at 30A, a combined 870A per contact. 800A connectors are the ones Phase 3 matches to 240mm² and 300mm² cable, and the continuous current available in service remains subject to the cable and the environment.

L1 stays L1
With five connectors in a three phase set, mechanical keying does the sorting. The SLD0017 fits a Powersafe Line 1 source connector and nothing else, whether that source is on a cable or a panel. Coupling trips a secondary lock, and it takes a release key to undo it, which protects against a phase being disconnected on load. The drain is ordinarily the dead end when uncoupled.

From bare cable to finished connector

• Leave 43mm of conductor showing after stripping
• Die set: ME 48 hexagonal, run in a hydraulic crimper (HT 131-C manual, or cordless B 131-C)
• Three crimps, spaced equally down the contact
• Gland body and dome nut finished at 11 Nm

Copper conductors only. Use a licensed electrician for installation and upkeep, in accordance with Australian wiring rules, and tensile test the completed crimp.

Q: Which phase is the red Powersafe SLD0017?
A: Line 1. The connector is mechanically keyed to L1 and accepts only a Powersafe L1 source connector.

Q: How many crimps does the SLD0017 contact need?
A: Three. Phase 3's guide lists the ME 48 die for 240mm² cable with three crimps placed evenly along the contact.

Q: Does the SLD0017 suit other makes of Powerlock connector?
A: Per the manufacturer, Powersafe is compatible with 400A and 660A Powerlock, Litton VEAM, ITT Cannon and other Powerlock-type connectors, so long as the key position is the same on both sides.
