Powersafe SLS0016 Line Source 800A 240mm2 Crimp 22-32mm Black Neutral IP67

Description

Neutral source for 800A, 240mm² sets.

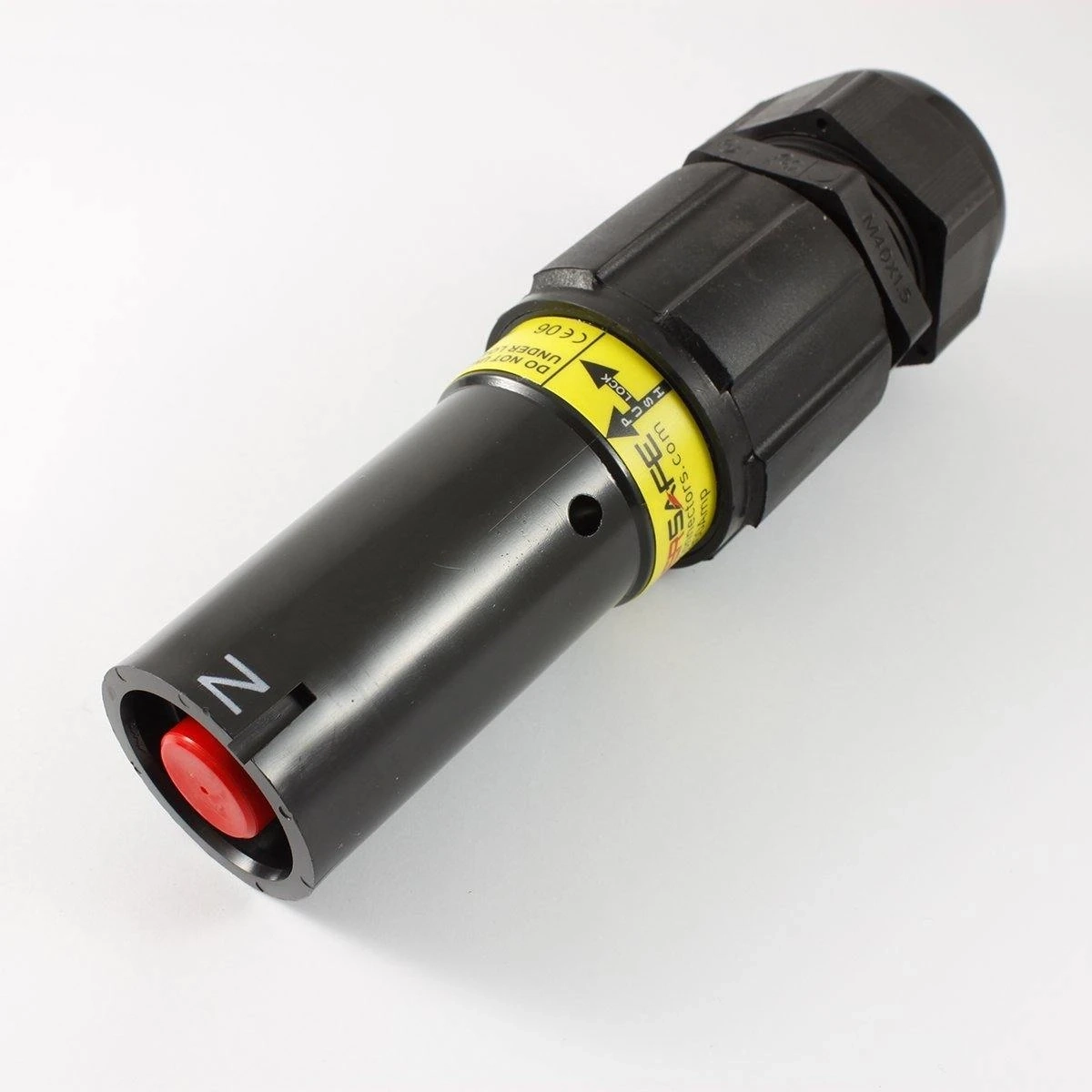

The Powersafe SLS0016 is the black Neutral source connector in the 800A Powerlock-compatible Powersafe series. Crimped to 240mm² copper cable, it gives the neutral the same capacity and the same keyed, locking connection as the phase connectors beside it.

Key Features

• Black source connector with the Neutral (N) key
• Male contact housed in a finger-proof female insulator
• Powerlock-compatible 800A series
• 240mm² copper cable crimp contact
• M40B gland, 22–32mm cable clamping
• 1000V AC operating voltage
• 35.5kA maximum short circuit rating; surge current 75kA
• IP67 when mated and IP2X when uncoupled
• High temperature thermoplastic shell, flame retardant to UL94-V0
• Silver plated contact for upwards of 500 mating cycles

Buy online and have it dispatched quickly, Australia-wide.

Full-Capacity Neutral, Supply Side

Where it sits in the set
A three phase Powersafe set runs five lines, and each one needs a source and a drain. The SLS0016 is the source for the neutral. It couples to a Powersafe Neutral drain, on the next cable or on a panel, and its key rules out every other line. Go by the key and not the colour, since black is also used on other lines in some Powersafe colour schemes.

800A contact design
The 800A series serves 240mm² and 300mm² cable. Phase 3 achieves the rating with 29 transfer bridges on the contact at 30A each, 870A altogether, and states that the maximum continuous rating depends on cable choice and environmental factors.

Guarded and locked
Being the source, this is usually the live end. The male contact stays behind its insulator, finger-proof to IP2X, until it is mated; a secondary lock then holds the connection and only a release key opens it.

Crimping at 240mm²

• Expose 43mm of conductor
• ME 48 hexagonal die in a hydraulic crimp tool
• Three evenly spaced crimps on the contact
• 11 Nm on both the gland body and its dome nut

Copper conductors only. Installation, inspection and maintenance are for qualified electricians, to local and national electrical codes. Suitable tools named by Phase 3 are the HT 131-C and B 131-C, and it advises tensile testing the finished crimp.

Q: Is the Powersafe SLS0016 the neutral connector?
A: Yes. It is the Neutral source, keyed so that it mates only with a Powersafe Neutral drain.

Q: Why is the neutral rated the same as the phases?
A: The SLS0016 uses the same 800A series contact as the phase connectors, with 29 transfer bridges of 30A each.

Q: What cable does the SLS0016 fit?
A: 240mm² copper cable with an overall diameter of 22–32mm, terminated by crimping.
