Powersafe SLS0020 Line Source 800A 240mm2 Crimp 22-32mm Blue Line 3 IP67

Description

Line 3 source to finish an 800A set.

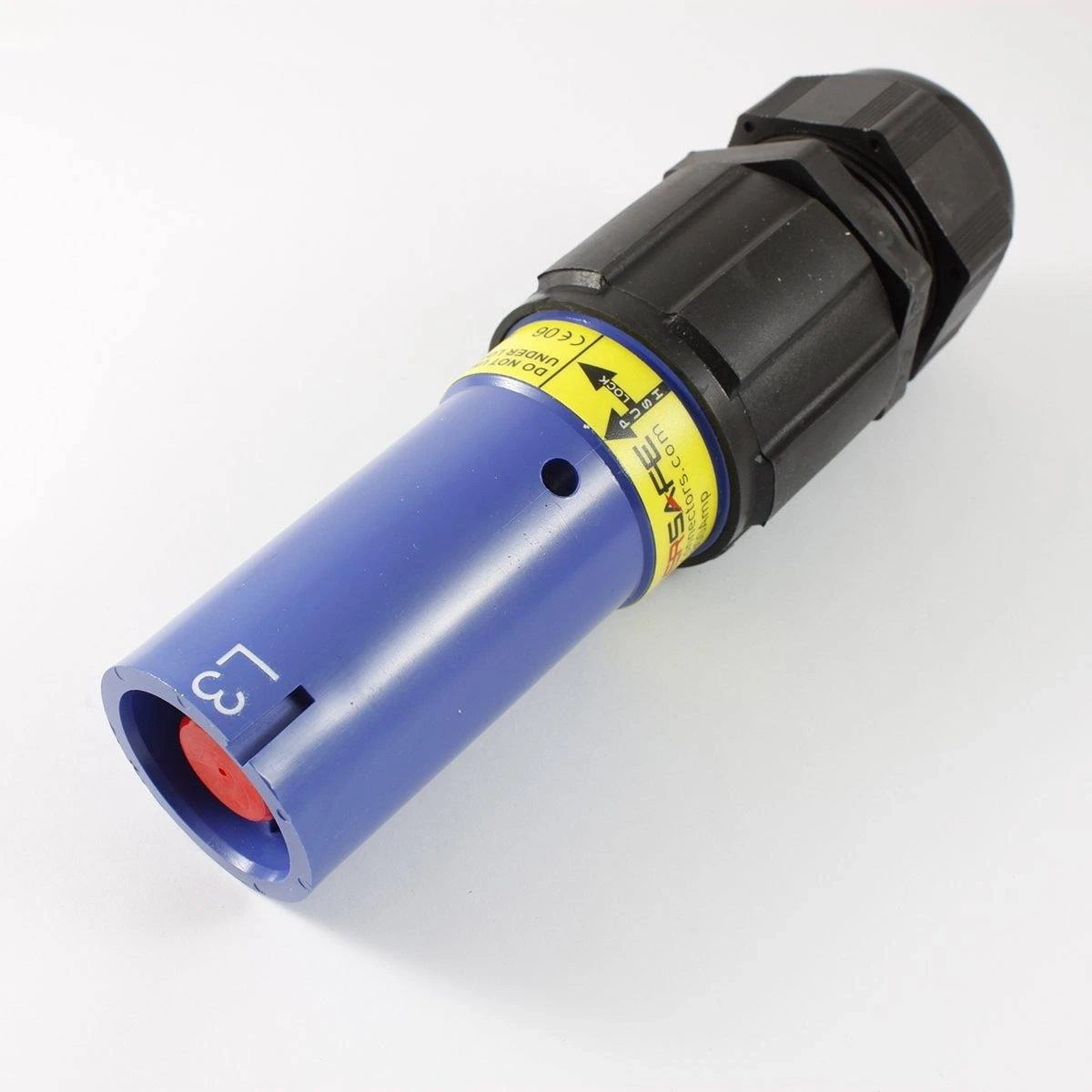

The Powersafe SLS0020 is the blue Line 3 source of the 800A Powersafe series, made to take 240mm² copper cable. With it, the supply side of a Powerlock-compatible three phase set is complete: a crimped male contact, L3 keying and a connection that locks.

Key Features

• Blue source connector on the Line 3 (L3) key
• Male contact recessed in a female insulator
• From the 800A series; Powerlock-compatible
• 240mm² copper cable, terminated by crimping
• M40B gland: 22–32mm cable OD
• Rated operating voltage 1000V AC
• Surge current 75kA, with short circuit rating up to 35.5kA
• IP67 once coupled; IP2X finger-proof beforehand
• High temperature, UL94-V0 flame retardant thermoplastic
• Contact silver plated for 500+ mating cycles

Order today for fast delivery to any Australian site.

The Third Phase, Supply Side

Not a neutral
Blue is a neutral colour in some wiring schemes, which makes the keying on this connector worth knowing. The SLS0020 is Line 3. It engages a Powersafe L3 drain, cable or panel mounted, and physically cannot enter a neutral, an earth or a different phase.

Capacity of the 800A series
Phase 3 uses the 800A connector on its two largest cable sizes, 240mm² and 300mm². The contact has 29 transfer bridges and each takes 30A, so 870A in all. Treat 800A as the ceiling for continuous current, with the real figure governed by cable choice and environmental factors.

Live end, made safe
Because a source is usually live, its male contact is kept out of reach inside the insulator (IP2X finger-proof). Coupling it to the drain gives an IP67 rated joint and engages the secondary lock, which a release key undoes.

From stripped cable to finished crimp

• Leave 43mm of bare conductor
• Seat the conductor fully, all strands inside the contact
• Three crimps with the ME 48 hexagonal die, spaced evenly
• Gland torque of 11 Nm, applied at body and dome nut

Fit to copper conductors only. The HT 131-C and B 131-C are the hydraulic tools Phase 3 lists. It also specifies a tensile test on the crimp, and it leaves installation, inspection and maintenance to qualified electricians under the applicable electrical codes.

Q: Is the blue Powersafe SLS0020 a neutral or a phase?
A: A phase. It is the Line 3 source and its key will not fit a neutral drain.

Q: What rating does the SLS0020 carry?
A: It belongs to the 800A series and operates at 1000V AC. How much current it carries continuously is determined by cable choice and environmental factors.

Q: Which cable suits the SLS0020?
A: 240mm² copper cable whose overall diameter is between 22mm and 32mm.
