Powersafe SLS0019 Line Source 800A 240mm2 Crimp 22-32mm White Line 2 IP67

Description

White Line 2 source in the 800A series.

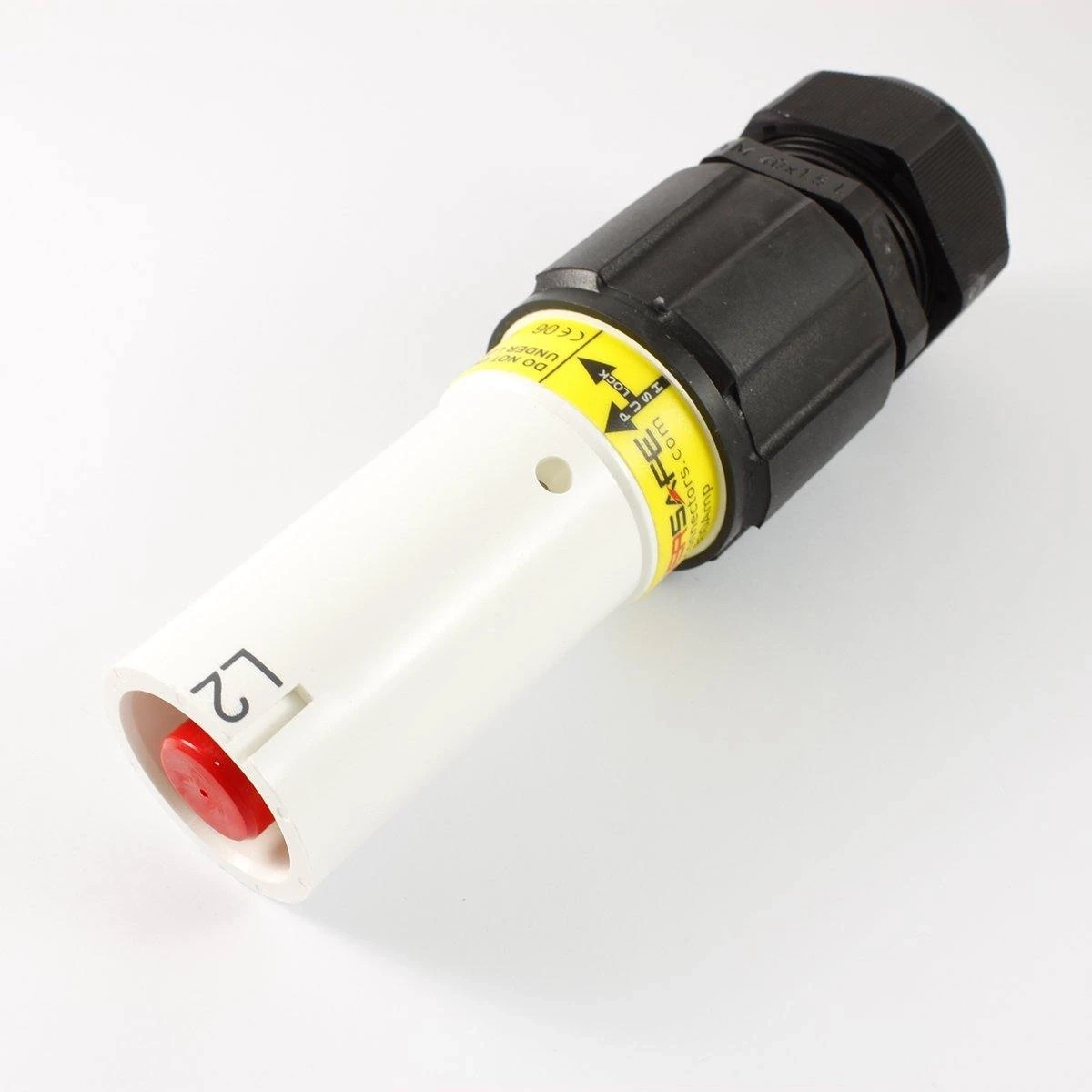

The Powersafe SLS0019 is the source connector for Line 2 on 240mm² copper cable. White, L2 keyed and part of the 800A Powerlock-compatible Powersafe series, it carries the second phase from the supply side through a crimped, shrouded male contact.

Key Features

• Line 2 (L2) keyed, white source connector
• Shrouded male contact in a female insulator
• Powerlock-compatible; 800A series
• 240mm² copper cable, crimp termination
• Gland type M40B, clamping 22–32mm
• 1000V AC as the operating voltage
• Withstands 75kA surge current; short circuit rated up to 35.5kA
• IP67 rated mated connection; IP2X contact protection apart
• Shell moulded in UL94-V0 high temperature thermoplastic
• Silver plated contact with a 500-plus mating cycle life

Add to cart now for speedy shipping anywhere in Australia.

Middle Phase, Heavy Duty

One partner only
Keying decides what a Powersafe connector will mate with. The SLS0019 has the L2 key and pairs with a Powersafe Line 2 drain alone, in cable or panel form. White makes it easy to spot in a five-connector set; the key makes a wrong connection physically impossible.

Rated with the largest cables
The 800A connector is what Phase 3 supplies for 240mm² and 300mm² cable. Inside, 29 transfer bridges of 30A share the current, a total of 870A per contact. Phase 3 gives 800A as a maximum continuous rating and ties it to cable choice and environmental factors.

Protection on the supply side
A source is usually the live end of the connection. Its male contact is IP2X finger-proof behind the female insulator while unmated, the coupled connectors are IP67 rated, and a secondary lock prevents them parting until a release key is used.

Termination checklist

• Strip the cable to expose 43mm of conductor
• Use the ME 48 hexagonal die set
• Make three crimps, evenly spaced, with a hydraulic tool
• Tighten the gland to 11 Nm at the body and the dome nut

Copper conductors only. The crimp tools Phase 3 lists are the HT 131-C and B 131-C. It also asks for a tensile test of the crimp and reserves installation, inspection and maintenance for qualified electricians, who must work to local and national electrical codes.

Q: What does the Powersafe SLS0019 mate with?
A: A Powersafe Line 2 drain, either a line drain or a panel drain.

Q: Is the SLS0019 a male connector?
A: It has a male contact inside a female insulator, which Powersafe calls a source. It is usually the live end.

Q: What crimp die suits the SLS0019?
A: An ME 48 hexagonal die. Three crimps are made on the 240mm² contact.
