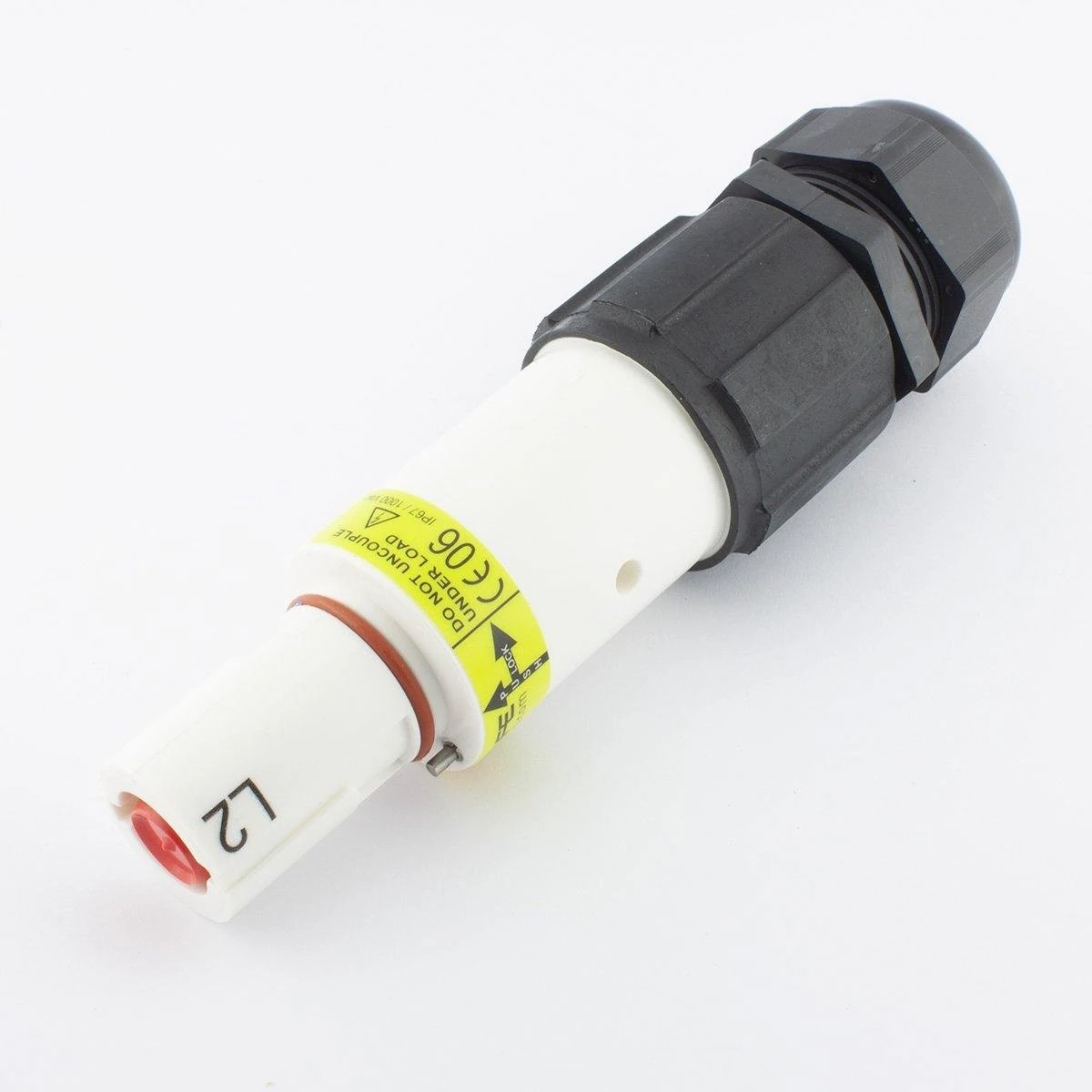

Powersafe SLD0019 Line Drain 800A 240mm2 Crimp 22-32mm White Line 2 IP67

Description

White for Line 2, built for 800A.

The Powersafe SLD0019 is the Line 2 drain for 240mm² copper cable in the 800A Powersafe series, a Powerlock-compatible single pole connector. A crimped contact and keyed white insulator keep the second phase secure and correctly identified.

Key Features

• Line 2 (L2) keying, identified in white
• Powerlock-compatible 800A series drain for in-line cable use
• Drain gender: male insulator, female contact
• Crimp contact matched to 240mm² copper cable
• M40B cable gland covering 22–32mm cable OD
• 1000V AC operating voltage
• Surge current of 75kA; short circuit rating as high as 35.5kA
• Rated IP67, with an IP2X finger-proof contact once uncoupled
• Thermoplastic shell, high temperature grade, UL94-V0
• Silver plated contact tested beyond 500 mating cycles

Add to cart for speedy dispatch to any Australian address.

The Second Phase, Done Properly

What sits behind 800A
A Powersafe contact carries current through 29 transfer bridges. At 30A apiece that totals 870A, the basis of the 800A maximum continuous rating. Phase 3 fits 800A connectors to 240mm² and 300mm² cable; what a given lead will carry continuously depends on its cable and operating environment.

No crossed phases
The SLD0019 has its own L2 key, so the only connector it will accept is a Powersafe Line 2 source, either in-line or panel mounted. The pair then locks: a secondary mechanism holds it and a release key is required to part it, preventing an unplanned break under load. In normal use the drain is the receiving side and carries no power once separated.

Crimp procedure in brief

• Strip until 43mm of conductor is exposed
• Select the ME 48 die; Phase 3 lists the HT 131-C and B 131-C hydraulic crimp tools
• Crimp in three places, equally spaced on the contact
• Fit the gland and bring body and dome nut up to 11 Nm

Copper conductors only. Have the connector installed, checked and maintained by a licensed electrician under Australian wiring rules, with a tensile test on the crimp.

Q: Is the white Powersafe SLD0019 a Line 2 connector?
A: Yes. It is keyed for Line 2 and will only couple with a Powersafe L2 source connector.

Q: What is the current rating of the SLD0019?
A: It belongs to the 800A series. The contact uses 29 transfer bridges rated 30A each, and real-world continuous current depends on the cable and conditions.

Q: What gland does the SLD0019 come with?
A: An M40B gland, which clamps cable from 22mm to 32mm overall diameter and is tightened to 11 Nm on assembly.
