Powersafe SLS0027 Line Source 800A 300mm2 Crimp 22-32mm Red Line 1 IP67

Description

First phase, largest cable, supply side.

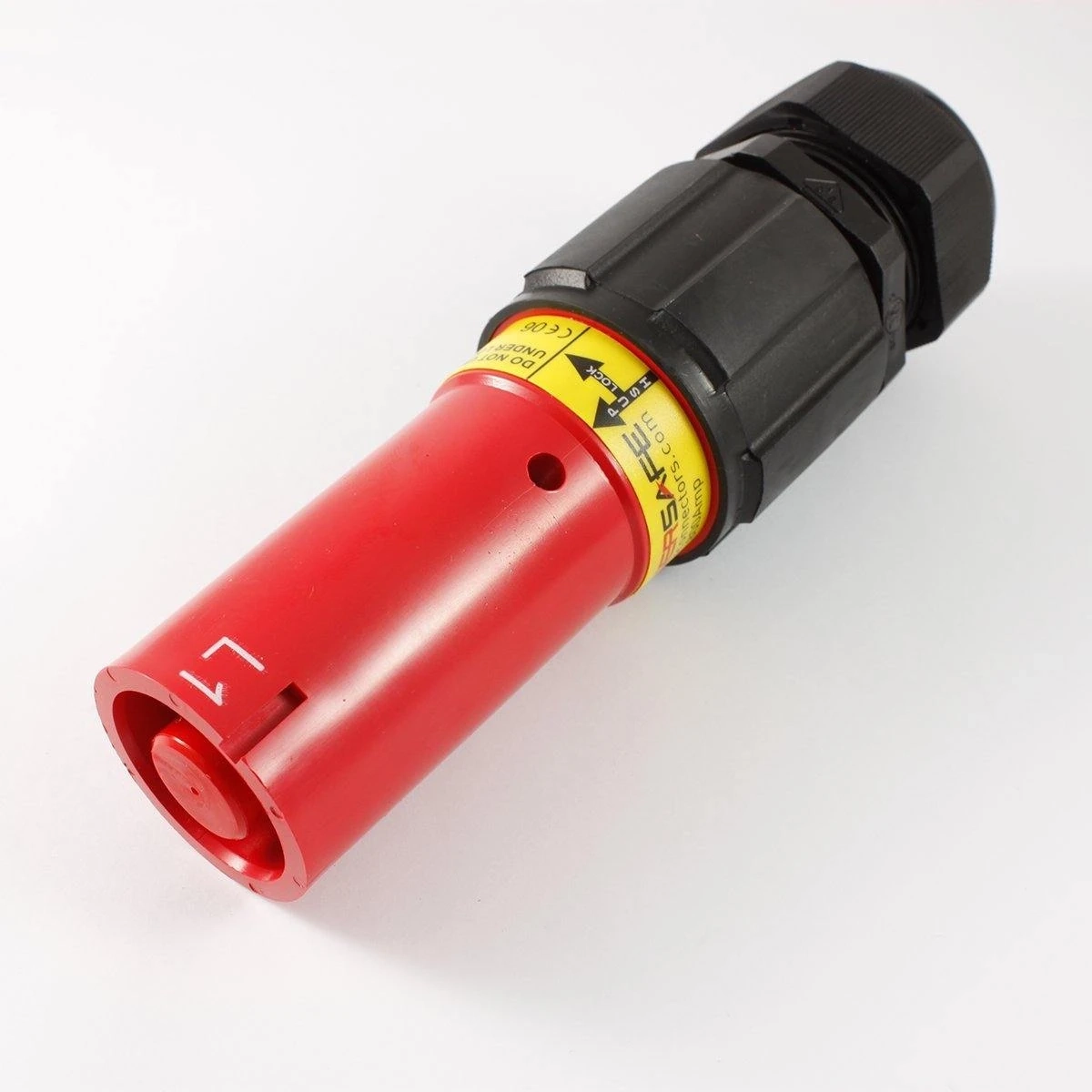

The Powersafe SLS0027 is a Line 1 source connector, coloured red, that terminates 300mm² copper cable. It sits at the top of the Powerlock-compatible Powersafe range: an 800A series connector whose male contact is crimped on, keyed to L1 and secured by a secondary lock.

Key Features

• Red Line 1 (L1) source
• Male contact guarded by a female insulator
• Powerlock-compatible single pole, 800A series
• Crimped onto 300mm² copper cable
• M40B gland; 22–32mm overall cable diameter
• Operating voltage 1000V AC
• 75kA surge current, up to 35.5kA short circuit rating
• IP2X finger-proof apart, IP67 together
• Flame retardant UL94-V0, high temperature thermoplastic
• Silver plated contact for 500+ mating cycles

Shop now for prompt delivery Australia-wide.

Feeding Line 1 at Full Scale

Keyed for one job
Line 1 has its own key in the Powersafe system and the SLS0027 carries it. A Powersafe L1 drain is the one connector it will mate with, be that a line drain on the following lead or a panel drain on the load. Every other line is mechanically refused, which protects phase order.

Largest cable in the range
Powersafe line connectors stop at 300mm², and this is the L1 source for that size. It ships with the M40B gland, clamping 22–32mm, so check the overall diameter of your cable against that range before you commit.

A source is usually live
That is how Phase 3 describes it, and why the male contact is IP2X finger-proof inside its insulator when unplugged. Mating gives an IP67 rated connection and sets the secondary lock; the release key frees it.

Crimp procedure

• Bare 43mm of conductor
• Load an ME 60 hexagonal die into the hydraulic crimper
• Crimp three times, evenly along the contact
• Torque the assembled gland to 11 Nm (body and dome nut)

Only copper conductors may be used. For tooling, Phase 3 points to the HT 131-C and B 131-C; it advises a tensile test of the crimp and requires that qualified electricians handle installation, inspection and maintenance under the local and national electrical codes that apply.

Q: Is the red Powersafe SLS0027 for Line 1?
A: Yes. It is the L1 source and only mates with a Powersafe L1 drain.

Q: What is the biggest cable the SLS0027 takes?
A: 300mm² copper cable. No Powersafe line connector is made for a larger size.

Q: Is the SLS0027 an 800A connector?
A: Yes, it is in the 800A series. Phase 3 notes that the maximum continuous rating changes with cable choice and environmental factors.
