Powersafe PP01195 Protection Cap Panel Drain 500A/800A Rubber IP44

Description

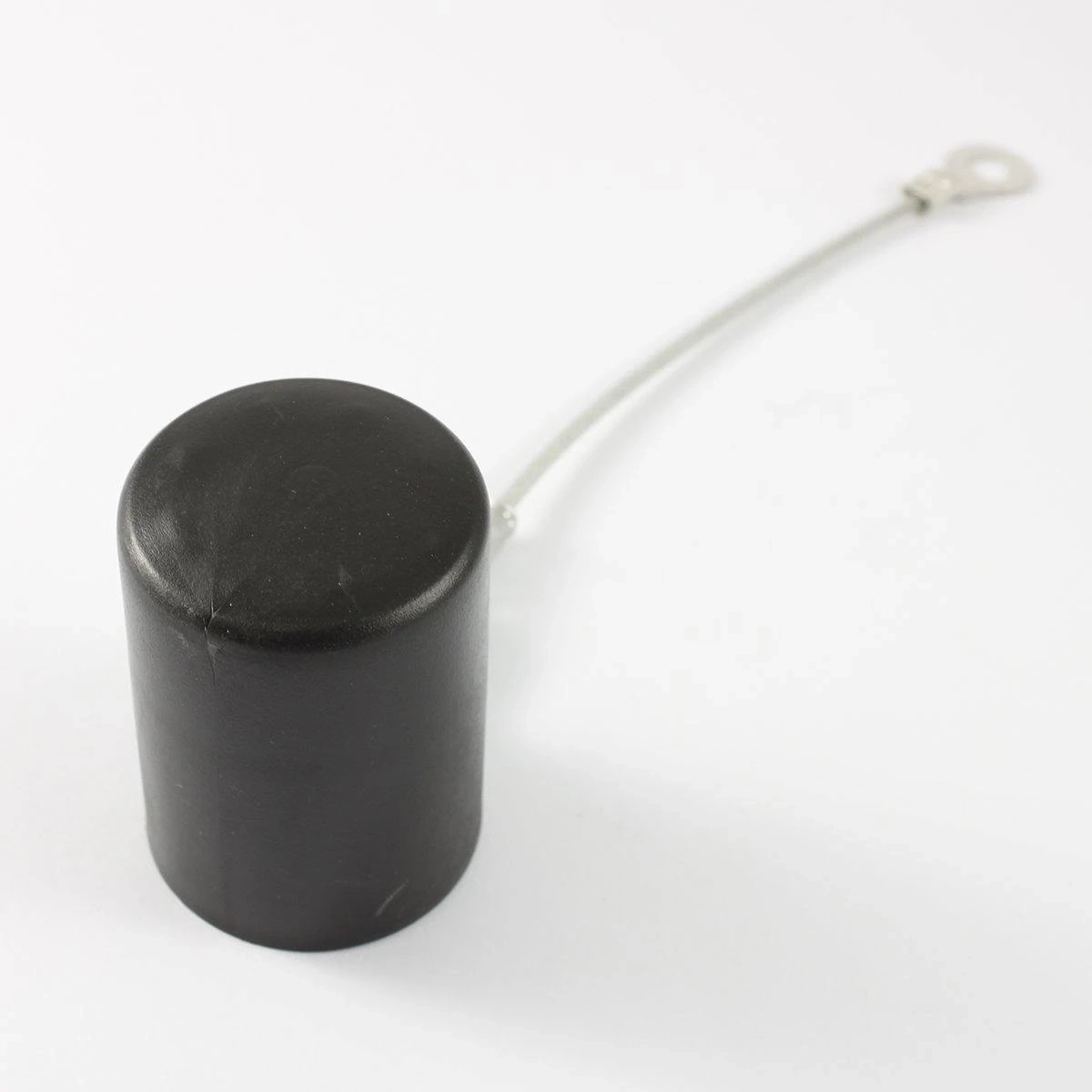

Rubber cover for panel drains.

The Powersafe PP01195 is the protection cap listed for Powerlock-compatible Powersafe panel drains, covering the T5 (500A) and T8 (800A) versions. Black rubber and IP44 rated, it goes over the face of a panel drain whenever the line source has been unplugged from it.

Key Features

• Protection cap for Powersafe panel drains
• Listed for both T5 (500A) and T8 (800A) panel drains
• Black rubber
• IP44 rated cap
• One position, one connector
• Shields the drain face from moisture, dirt and abrasion
• RoHS compliant

Buy online for prompt delivery Australia-wide.

Protecting the Panel Inlet

The drain on the panel
A Powersafe panel drain is the fixed connector with a female contact inside a male insulator; in Phase 3's description, drains usually receive the connection while sources are usually the live end. Panel drains are flange mounted on equipment and wired at the back through an M12 threaded post to a standard cable lug.

Between connections
Powersafe's IP67 rating is for a coupled source and drain. When the line source is removed, the panel drain face is exposed. Phase 3's brochure describes protective caps as optional extras for that situation, to keep moisture, dirt and abrasion off uncoupled connectors, and the PP01195 is the supplier's cap for panel drains.

• T5 panel drains: 500A, contact of silver plated brass
• T8 panel drains: 800A, contact of silver plated copper
• Drain gender only; not for sources

Choosing the right cap
Four black rubber IP44 caps are listed by the supplier: PP01192 for line sources, PP01193 for line drains, PP01194 for panel sources and this PP01195 for panel drains. Match the cap to both the connector's mounting and its gender. On the connector itself, Phase 3's assembly guide asks for drains to have the front O-ring inspected and lightly greased with silicone from time to time, and the spring-loaded secondary locking pin checked to see that it moves freely. Installation, inspection and maintenance of Powersafe connectors are reserved for qualified electricians, who must also meet local and national electrical codes. Phase 3 supplies panel connectors fully assembled, gasket included, ready for direct mounting.

Q: Which connectors does the Powersafe PP01195 suit?
A: Powersafe panel drains, both the T5 at 500A and the T8 at 800A.

Q: Is there a matching cap for panel sources?
A: Yes. The PP01194 is listed for Powersafe panel sources.

Q: What rating does the PP01195 cap have?
A: IP44. The cap is black rubber and RoHS compliant.
