Powersafe SPD0017 Panel Drain 800A Red Line 1

Description

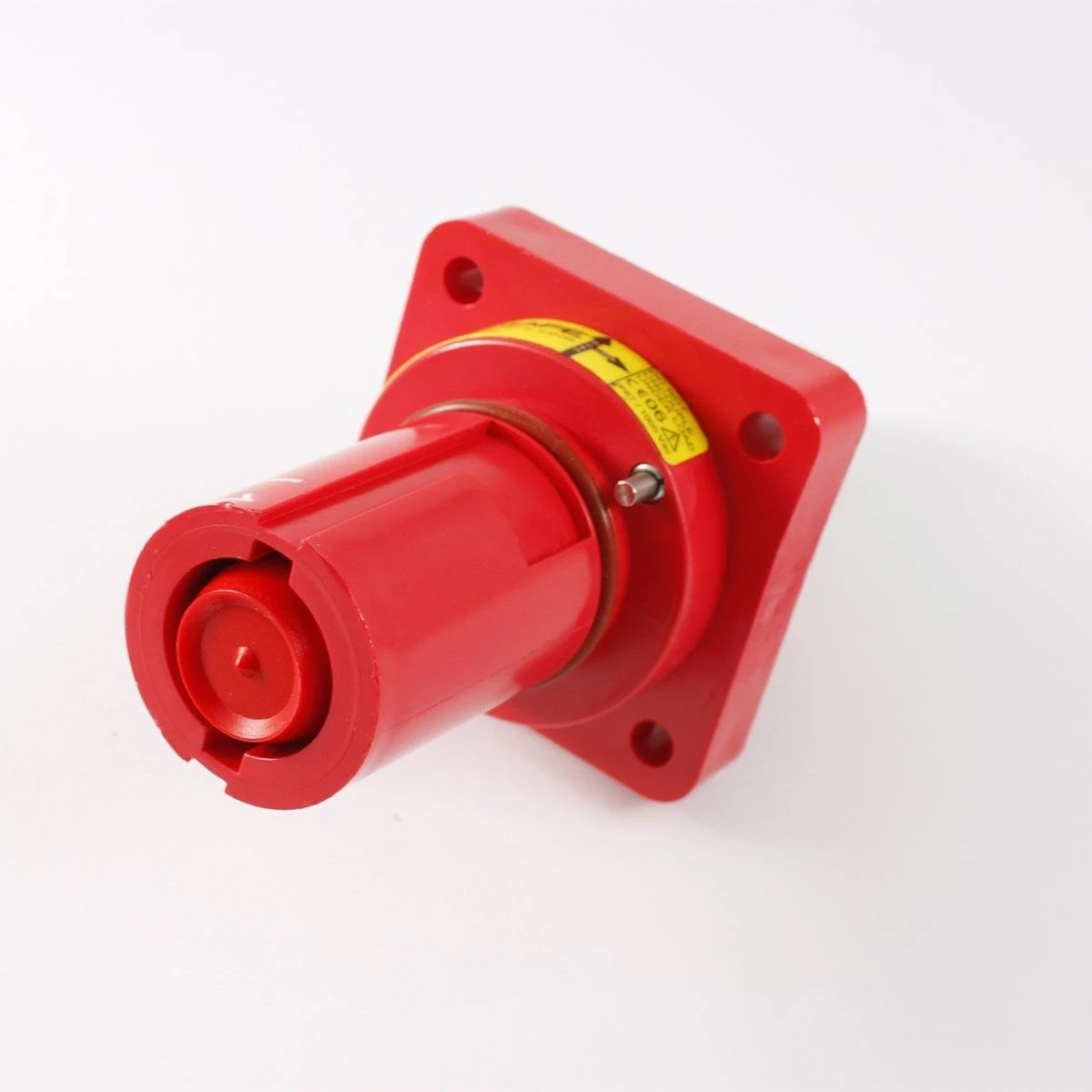

Red L1 panel socket, 800A.

The Powersafe SPD0017 is the Line 1 drain for panels that need the T8 rating. Red, keyed for L1 and Powerlock-compatible, it is rated 800A on a copper contact with silver plating and its M12 threaded post is cabled from the back.

Key Features

• Red panel drain for Line 1 (L1)
• 800A T8 version, Powerlock-compatible
• Contact in copper, silver plated
• Cable lug termination on an M12 threaded post
• Four fixing holes in the mounting flange
• Watertight panel seal from the gasket
• Fully assembled, M12 nut and spring washer supplied
• Works at 1000V AC, with 75kA surge current
• Short circuit rating extends to 35.5kA
• IP67 and IP2X protection, UL94-V0 flame retardant

Shop now and get it delivered across Australia.

First Phase, T8 Rating

Line 1 keeps to itself
Each Powersafe position has a different key, and the SPD0017 carries the one for L1. A Powersafe Line 1 source is the only line connector it will accept. Red colour coding marks the first phase on the panel, and once the bayonet has turned, a secondary lock stops the source backing out until the release key is applied.

What makes it a T8
Phase 3 manufactures its 800A panel sockets using copper with silver plating, while its T5 sockets are brass. That contact is the difference. The mounting details are common to both: the flange, the gasket and the M12 threaded post termination.

Installation in brief

• Mount by the flange, or use M6 threaded inserts
• Slip a standard cable lug onto the post
• Washer, then nut: 12–14 Nm and no more

The M6 inserts allow either front or rear fixing. Phase 3 supplies panel connectors ready for direct mounting and says special tools are not required for field installation. Its guide lists two periodic checks on a drain connector: the condition of the front O-ring, which also wants a film of silicone grease, and the free travel of the spring-loaded secondary locking pin. Installation belongs with a qualified electrician working to local and national electrical codes.

Q: Does the Powersafe SPD0017 carry Line 1?
A: Yes. It is the red L1 panel drain, and a Powersafe Line 1 line source is what mates with it.

Q: Is the SPD0017 rated 800A?
A: Yes. It is the T8 panel drain, with a silver plated copper contact.

Q: Can the SPD0017 be fixed from the front or rear?
A: Yes. Its flange holes can be fitted with M6 threaded inserts for either.
