Powersafe SPD0001 Panel Drain 500A Green Earth

Description

Panel-mounted earth inlet, ready to bolt in.

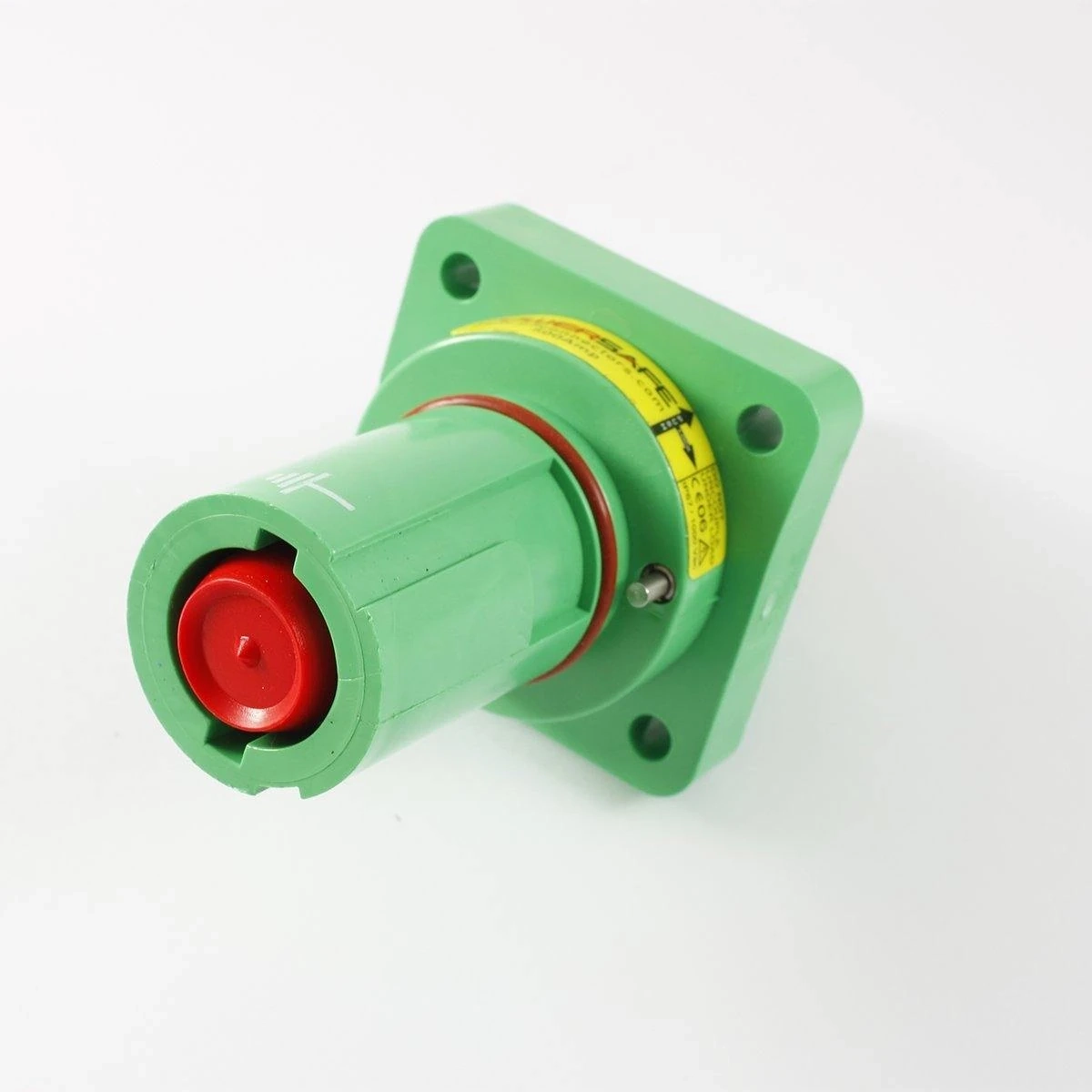

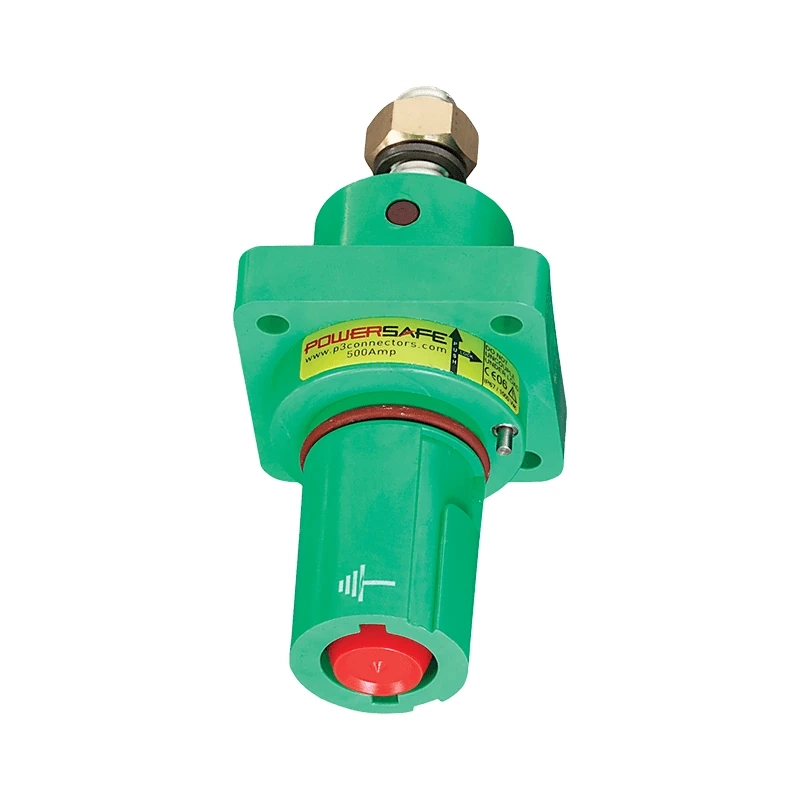

The Powersafe SPD0001 is a green Earth panel drain: the fixed, Powerlock-compatible socket that an Earth line source plugs into. Rated 500A (T5), it terminates behind the panel on an M12 threaded post, so equipment can be wired with a standard cable lug.

Key Features

• Panel mount drain connector, Earth (E) key, green
• Powerlock-compatible single pole, 500A (T5)
• M12 threaded post termination to a standard cable lug
• Gasket for watertight securing to the panel
• Supplied fully assembled for direct mounting
• Operating voltage of 1000V AC
• Surge current of 75kA; short circuit rating as high as 35.5kA
• IP67 waterproof and dustproof; IP2X finger-proof
• High impact, flame retardant insulator (UL94-V0)
• Mating cycle life above 500

Order now and it ships fast, anywhere in Australia.

The Fixed Half of the Connection

Built into the equipment
Line connectors go on cables; panel mounts go on the gear. Phase 3 describes Powersafe panel mounts as industrial sockets for generators, batteries, busbars, switchgear and power distribution boxes. The SPD0001 is the Earth drain version, keyed so that only a Powersafe Earth source connector will mate with it, with secondary locking that keeps the two coupled until someone uses the release key.

Simple, sealed installation
The connector arrives assembled. A gasket seals it against the panel, and the flange holes can alternatively be fitted with M6 threaded inserts for front or rear fixing. No special tools are required for installation.

Wiring the threaded post

• Remove the nut and washer from the M12 threaded post
• Fit the cable lug or accessory over the thread
• Refit the washer and nut, tightening to a maximum of 12–14 Nm

Looking after a drain connector
Phase 3 advises checking the front O-ring on drain connectors for degradation and applying a film of silicone grease periodically, and confirming the spring-loaded secondary locking pin moves freely. Leave installation, inspection and maintenance to qualified electricians, who should apply local and national electrical codes.

Q: What plugs into the Powersafe SPD0001?
A: A Powersafe Earth line source connector. The Earth key stops any phase or neutral connector mating with it.

Q: How is the SPD0001 wired at the back of the panel?
A: With a standard cable lug on its M12 threaded post, secured by the washer and nut to a maximum of 12–14 Nm.

Q: What does T5 mean on a Powersafe panel mount?
A: T5 is the 500A version. Phase 3 also makes a T8 panel mount rated 800A.
