Powersafe SLS0049 Line Source 500A 185mm2 Crimp 22-32mm Green Earth IP67

Description

Crimped earth source for 185mm² leads.

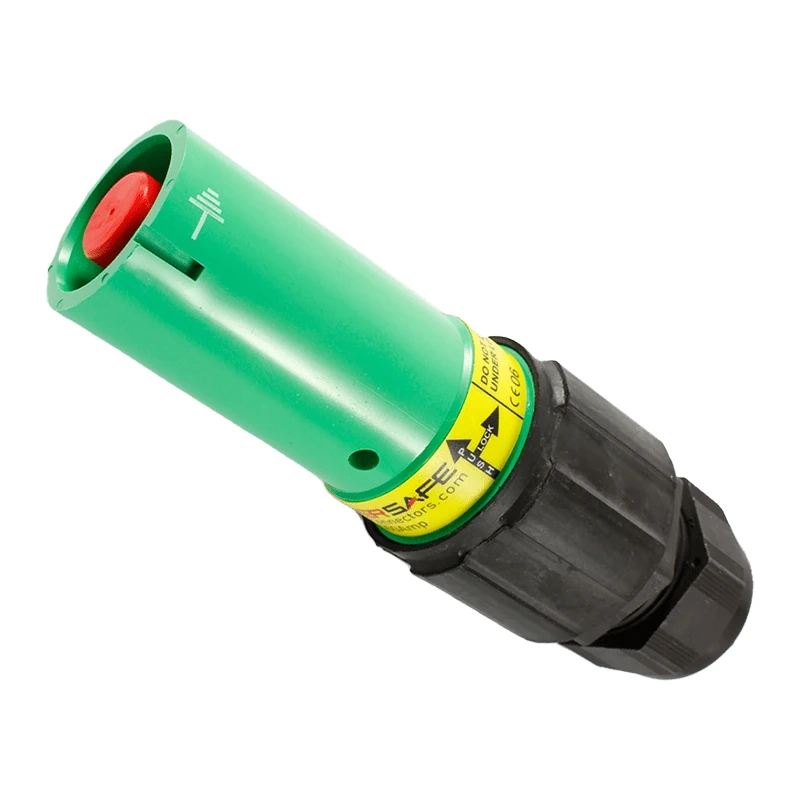

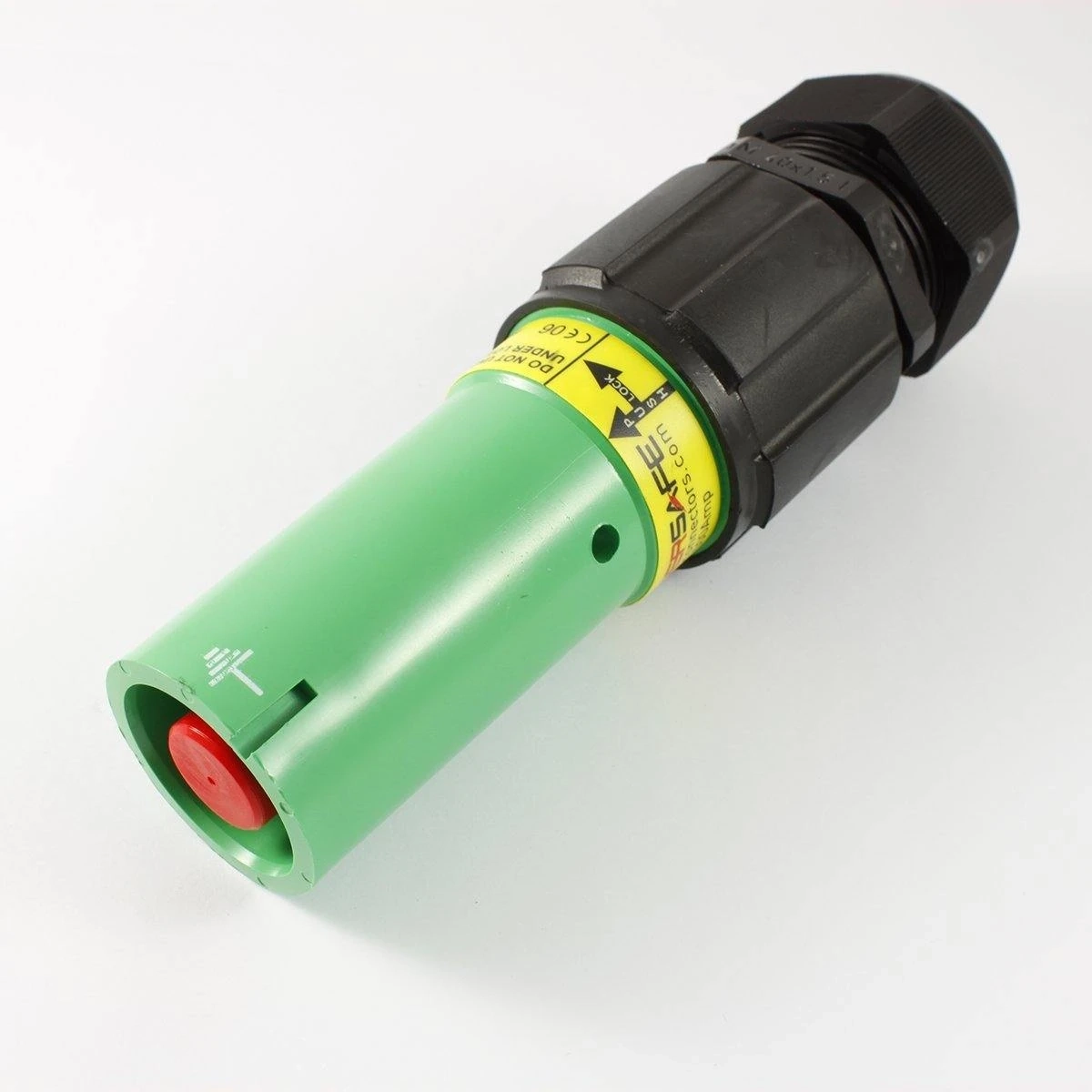

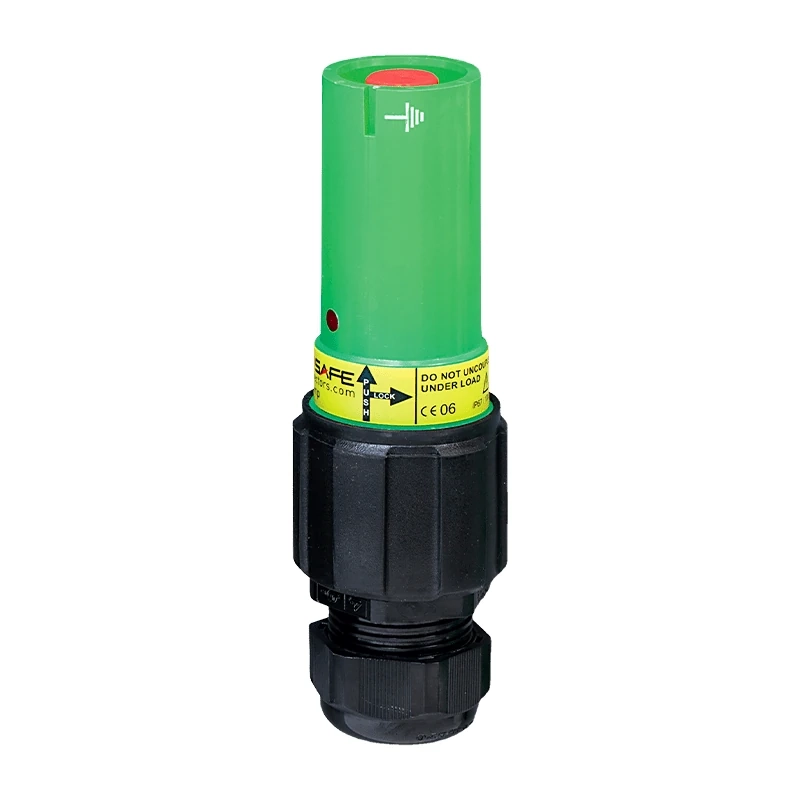

The Powersafe SLS0049 is the green Earth source connector for 185mm² copper cable in a Powerlock-compatible single pole system. It pairs a crimped male contact with a finger-proof female insulator, giving the supply end of the earth a permanent termination.

Key Features

• Earth (E) keyed source, colour coded green
• Male contact protected by a female insulator
• Powerlock-compatible connector rated 500A
• Crimp contact for 185mm² copper cable
• M40B gland for 22–32mm cable OD
• Operating voltage 1000V AC
• Surge current 75kA and a short circuit rating up to 35.5kA
• IP67 mated protection and an IP2X finger-proof contact
• UL94-V0 rated, high temperature thermoplastic shell
• Contact in silver plate, good for more than 500 mating cycles

Get yours now, with prompt dispatch to anywhere in Australia.

Supply-Side Earthing on Larger Cable

What "source" means
Phase 3 makes every Powersafe connector as a source or a drain. The source is the half with the male contact, set inside a female insulator that keeps it IP2X finger-proof while uncoupled; it is usually the live end, while the drain receives the connection. The SLS0049 is the Earth-keyed source, so it fits a Powersafe Earth drain, on a lead or on a panel, and no phase or neutral connector.

Locked until released
Coupling the SLS0049 to its drain trips a secondary locking mechanism. The connection then stays made until a release key is used, which guards against the earth being disconnected by accident while the system is energised.

Crimp requirements for 185mm²

• Conductor exposed by 43mm
• ME 37 hexagonal die set
• Hydraulic crimp tool: HT 131-C (manual) or B 131-C (cordless)
• Three crimps equally spaced on the contact
• 11 Nm torque on the gland's body and dome nut

This contact is for copper conductors only. Phase 3 restricts installation, inspection and maintenance to qualified electricians working to local and national electrical codes, and recommends a tensile test of the crimp.

Q: Is the Powersafe SLS0049 a male or female connector?
A: It is a source, which means a male contact inside a female insulator. It mates with a drain, which has the female contact.

Q: What die set crimps the SLS0049?
A: The ME 37 hexagonal die, listed by Phase 3 for 185mm² cable, with three crimps along the contact.

Q: What cable diameter does the SLS0049 gland accept?
A: Cable from 22mm to 32mm in overall diameter. That is the clamping range of the M40B gland fitted to this connector, which provides the strain relief and the seal.
