Powersafe SPD0010 Panel Drain 500A Blue Line 3

Description

Blue L3 drain for panel builds.

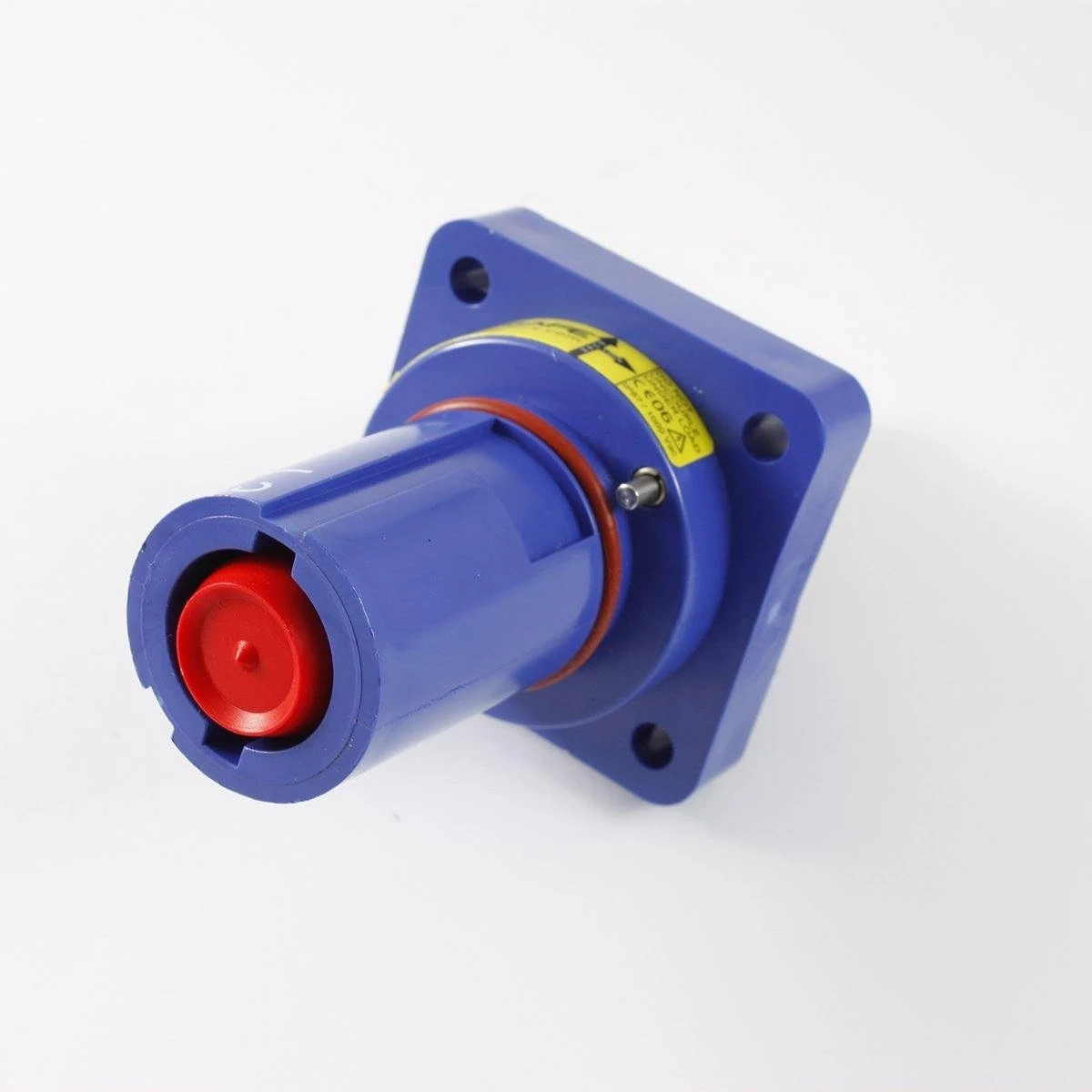

The Powersafe SPD0010 completes the three phases as the blue Line 3 panel drain. This Powerlock-compatible T5 socket carries a 500A rating, bolts to the panel by its flange, and takes its cable on an M12 threaded post at the rear.

Key Features

• Blue panel drain keyed for Line 3 (L3)
• Powerlock-compatible, 500A in T5 form
• Flange with four holes for panel fixing
• Panel gasket gives a watertight fit
• Standard cable lug fits the rear M12 threaded post
• Comes assembled; M12 nut and spring washer fitted
• 1000V AC operating voltage, surge current 75kA
• Rated for short circuits up to 35.5kA
• IP67 rated, with IP2X finger-proof protection
• UL94-V0 flame retardant, high impact insulator

Secure yours today, shipped Australia-wide.

The Third Phase on the Panel

Keyed and coloured for L3
Line 3 gets its own mechanical key on the SPD0010, so the only line connector that will enter it is a Powersafe Line 3 source. Blue colour coding backs the key up visually. After the bayonet turn, secondary locking holds the pair together until someone uses the release key.

Built for fixed equipment
Phase 3 lists power distribution boxes, switchgear, busbars, batteries and generators among the equipment its panel mount sockets are made for. The SPD0010 follows that pattern: four fixing holes on the flange, a gasket that lets it be secured watertight, and the option of M6 threaded inserts in the flange holes where the panel calls for front or rear fixing.

Terminating the post

• Take off the M12 nut and its spring washer
• Place the lugged cable on the threaded post
• Replace both and tighten, 12–14 Nm maximum

No special tools are needed for field installation, according to Phase 3. Its assembly guide also sets out routine checks for drains: look over the front O-ring and keep a light film of silicone grease on it, and confirm the spring-loaded secondary locking pin moves freely. Installation is work for a qualified electrician, done in line with local and national electrical codes.

Q: Which phase does the Powersafe SPD0010 serve?
A: Line 3. It is the blue L3 panel drain, and it accepts a Powersafe Line 3 line source only.

Q: How is cable connected to the SPD0010?
A: With a standard cable lug on the M12 threaded post. The nut and spring washer are supplied, and the nut is tightened to 12–14 Nm maximum.

Q: What IP rating does the SPD0010 have?
A: IP67 to EN 60529, plus IP2X finger-proof protection against electric shock.
