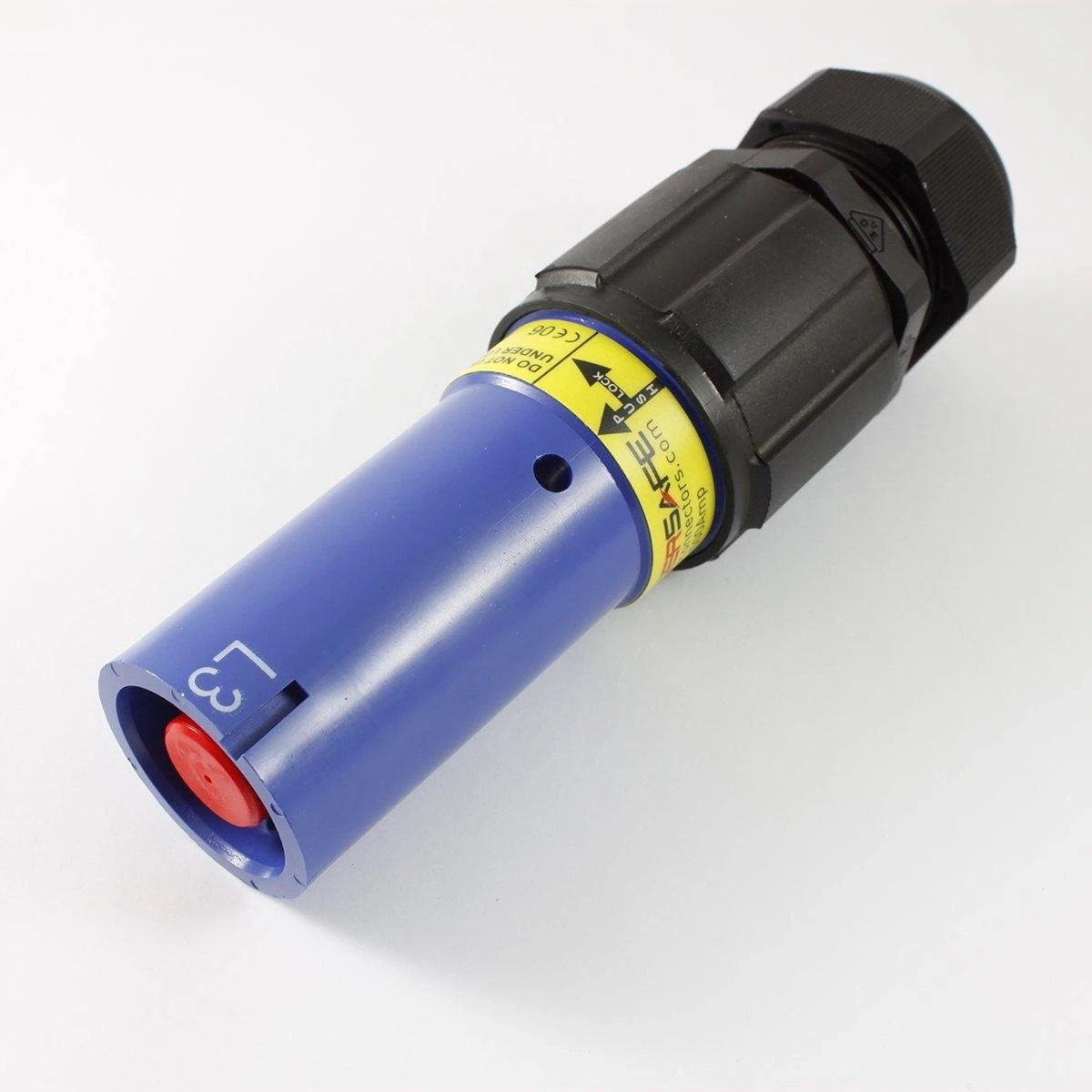

Powersafe SLS0010 Line Source 500A 120mm2 Set Screw 19-28mm Blue Line 3 IP67

Description

Blue Line 3 source with set screw contact.

The Powersafe SLS0010 is the Line 3 source connector that completes the phases of a Powerlock-compatible 500A single pole set. Blue, L3 keyed and fitted with a guarded male contact, it clamps 120mm² or 150mm² copper cable under set screws instead of a crimp.

Key Features

• Blue source connector for Line 3 (L3)
• Guarded male contact in a female insulator
• 500A, Powerlock-compatible single pole design
• Set screw termination: 120mm² or 150mm² copper cable
• M40A gland, 19–28mm clamping range
• Rated operating voltage: 1000V AC
• Short circuit rating up to 35.5kA with a 75kA surge current
• IP67 when mated, IP2X finger-proof when not
• Flame retardant (UL94-V0) high temperature thermoplastic
• Silver plated contact, 500+ mating cycles

View specs below and order today for fast Australian delivery.

Closing Out the Three Phases

Blue is L3 on this connector
Blue can signal neutral in other wiring colour schemes, but the SLS0010 is the Line 3 connector and is keyed that way. It joins a Powersafe Line 3 drain only, cable mounted or panel mounted, so it cannot end up on the neutral or another phase. When the two halves meet, a secondary lock closes and is undone only with the release key.

Built as the live end
Phase 3 identifies the source as usually the live end of a connection. The contact is male but sits behind a female insulator with IP2X finger-proof protection, and the mated pair achieves IP67.

Set screw steps

• Remove 33mm of insulation from the cable end
• Seat the conductor fully in the contact
• Using a 5mm Allen bit, bring the set screws to 10.5 Nm or more
• Screw the gland on; its body and dome nut take 11 Nm

Reduction sleeves for 25–95mm² cable are sold separately. Copper conductors only; Phase 3 requires qualified electricians to install, inspect and maintain the connector to local and national electrical codes.

Q: Is the blue Powersafe SLS0010 a neutral?
A: No. It is the Line 3 source connector. Its L3 key stops it mating with a neutral drain.

Q: What is the SLS0010 rated at?
A: 500A, with a 1000V AC operating voltage. The continuous current you get in service depends on the cable used and environmental factors.

Q: Which drain matches the SLS0010?
A: Any Powersafe Line 3 drain, line or panel mount. Phase 3 also states compatibility with other Powerlock-type connectors, including Litton VEAM and ITT Cannon.
