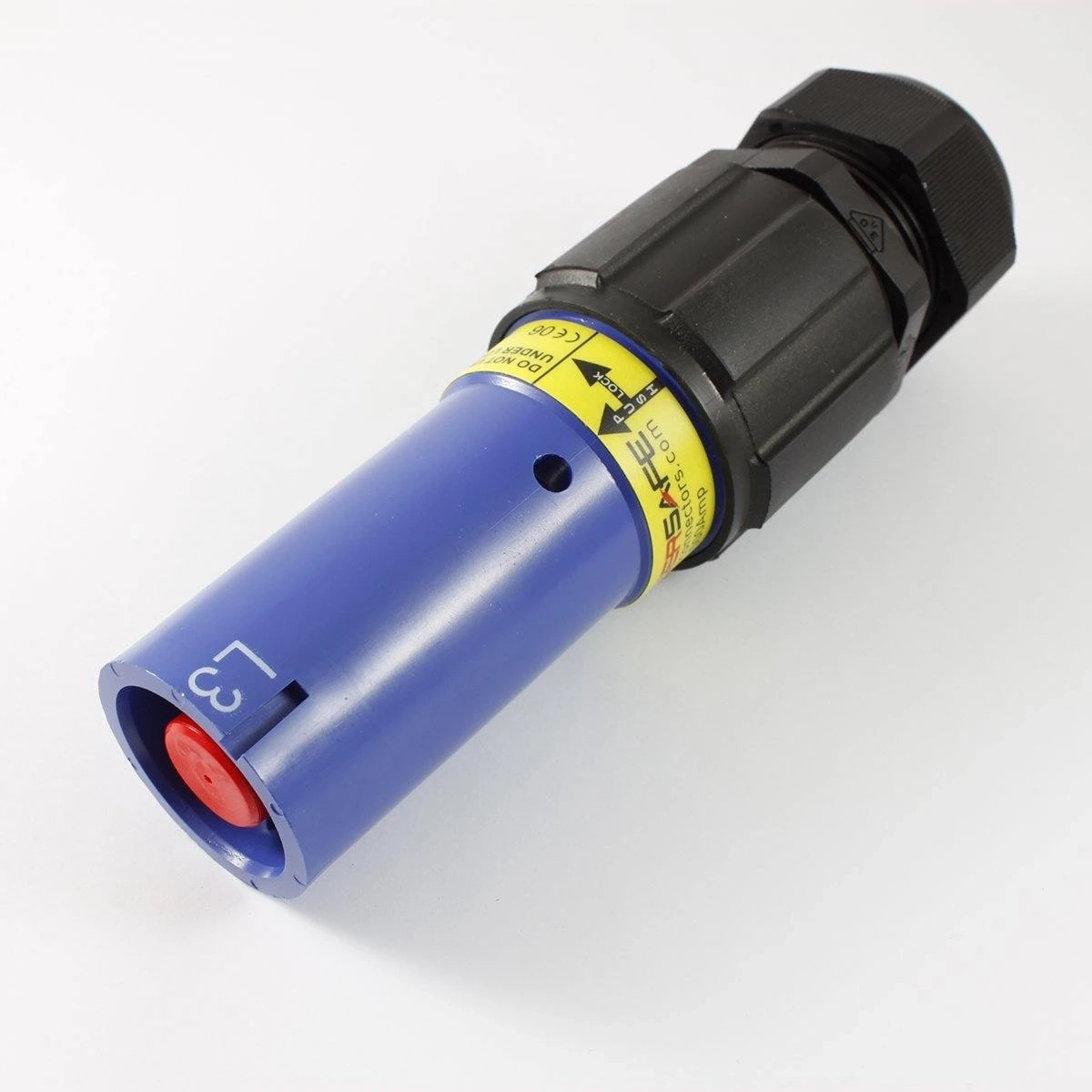

Powersafe SLS0053 Line Source 500A 185mm2 Crimp 22-32mm Blue Line 3 IP67

Description

Blue L3 source, crimp terminated.

The Powersafe SLS0053 is the Line 3 source connector for 185mm² copper cable, finishing the phase set in a 500A Powerlock-compatible system. It is blue, keyed to L3 and built around a crimped male contact that stays finger-proof until it is mated.

Key Features

• Line 3 (L3) source in blue
• Crimped male contact, female insulator
• Single pole, Powerlock-compatible, 500A
• For 185mm² copper cable
• M40B cable gland: 22–32mm OD
• Works at an operating voltage of 1000V AC
• 75kA surge current rating; short circuit rating to a 35.5kA maximum
• IP67 mated rating; IP2X finger-proof before mating
• Thermoplastic shell rated UL94-V0 for flammability
• Contact finished in silver plate, 500 mating cycles and beyond

Order today and have it shipped fast within Australia.

The Last Phase in the Set

Blue means Line 3 here
Do not read blue as neutral on this connector. The SLS0053 is the L3 source, and its mechanical key only lines up with a Powersafe Line 3 drain, fitted to a cable or to a panel. A neutral, earth or other phase connector will not accept it.

Live-end protection and locking
The source is usually the energised half of a Powersafe connection. Its male contact is surrounded by the female insulator, giving IP2X finger-proof protection while uncoupled, and the connection is IP67 rated once made. A secondary locking mechanism engages on coupling and needs the release key to disengage.

Putting it on the cable

• Strip the jacket so 43mm of conductor is exposed
• Slide the conductor into the contact, with every strand inside
• Crimp three times using the ME 37 die and a hydraulic tool (HT 131-C or B 131-C)
• Assemble the insulator and gland; 11 Nm on body and dome nut

Copper conductors only. This is work for qualified electricians, who should also inspect and maintain the connector under local and national electrical codes. A tensile test on the crimp is recommended by Phase 3.

Q: Is the blue Powersafe SLS0053 Line 3 or neutral?
A: Line 3. It is keyed to L3 and will not mate with a neutral connector.

Q: What does the SLS0053 mate with?
A: Its partner is the Line 3 drain in the Powersafe range, which comes in line and panel mount forms. The manufacturer adds that Powersafe connectors are compatible with Powerlock-type products from Litton VEAM and ITT Cannon.

Q: What is the strip length for the SLS0053?
A: Leave 43mm of conductor exposed for the crimp contact, per Phase 3's assembly guide.
