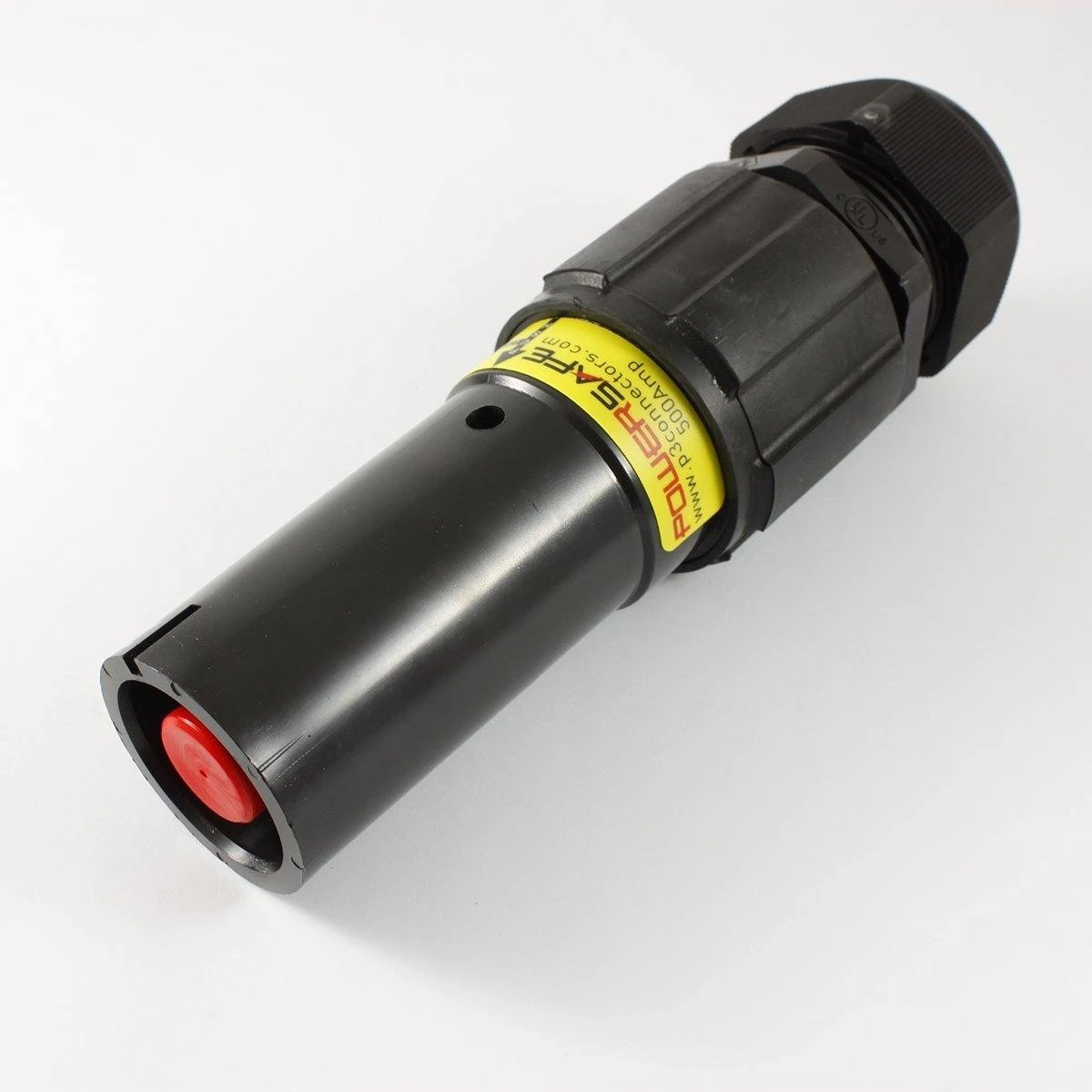

Powersafe SLS0057 Line Source 500A 185mm2 Crimp 22-32mm Black Neutral IP67

Description

Neutral source, crimped onto 185mm² cable.

The Powersafe SLS0057 is the black Neutral source for 185mm² copper cable. This Powerlock-compatible single pole connector forms the supply end of the neutral, and mates with a Powersafe Neutral drain through a keyed coupling that locks on connection.

Key Features

• Neutral (N) source connector in black
• Recessed male contact, female insulator
• 500A rated and Powerlock-compatible
• 185mm² copper cable, crimp contact
• M40B gland, cable OD 22–32mm
• Operating voltage: 1000V AC
• 75kA surge current; short circuit rating of up to 35.5kA
• IP2X finger-proof when uncoupled, IP67 when mated
• Thermoplastic shell with UL94-V0 flammability rating
• Silver plated contact, >500 mating cycles

Buy online now, shipped quickly Australia-wide.

The Neutral's Supply End

Paired by key position
A source needs its matching drain. The SLS0057 carries the Neutral key, so it couples with a Powersafe Neutral drain, whether that drain is cable mounted or a panel fitting, and will not go into an earth or phase connector. Do not rely on black alone to identify it, because Powersafe uses black for other lines in some colour schemes.

Protected contact, secure lock
Phase 3 describes the source as usually the live end. Its male contact sits back inside the female insulator, finger-proof to IP2X when the connector is apart. Joined to the drain, the pair is IP67 rated, and a secondary lock keeps it joined until the release key is applied.

Crimping the 185mm² contact

• Strip to show 43mm of conductor
• Choose the ME 37 hexagonal die
• Crimp three times at equal spacing using a hydraulic tool, either the HT 131-C or the B 131-C
• Reassemble, then torque the gland to 11 Nm at its body and dome nut

Use on copper conductors only. Only qualified electricians should install, inspect and maintain this connector, in line with local and national electrical codes; Phase 3 also advises a cable tensile test on the finished crimp.

Q: What does the Powersafe SLS0057 connect to?
A: A Powersafe Neutral drain connector, either line or panel mount. The Neutral key prevents any other pairing.

Q: Is the SLS0057 the live end of the neutral connection?
A: Usually, yes. In the Powersafe system the source is normally the live end and the drain receives the connection, which is why the source's male contact is shielded and finger-proof.

Q: How is the SLS0057 terminated?
A: By crimping. Phase 3 lists the ME 37 hexagonal die for 185mm² cable, with three crimps on the contact.
