Powersafe SLS0055 Line Source 500A 185mm2 Crimp 22-32mm White Line 2 IP67

Description

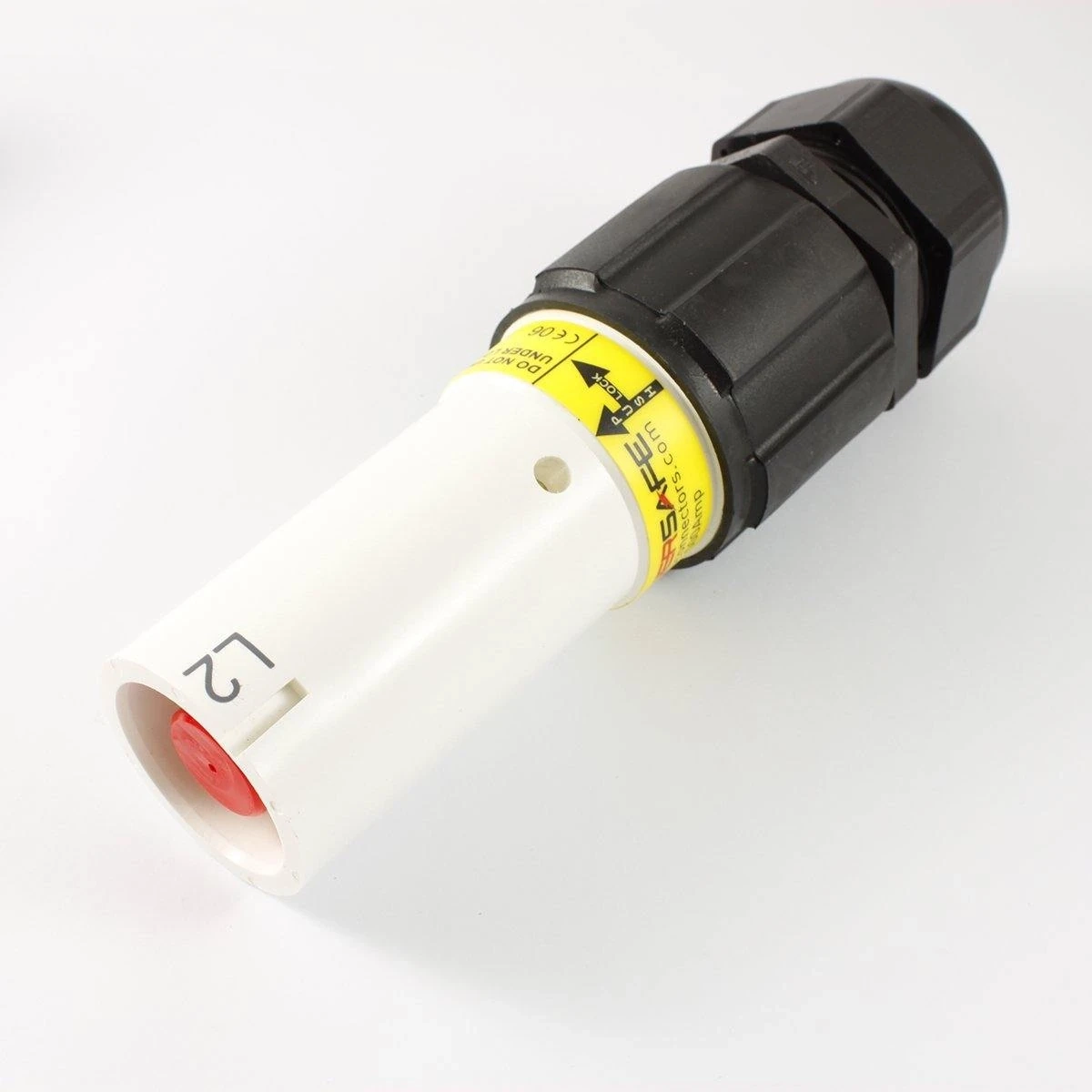

White L2 source for crimped 185mm² cable.

The Powersafe SLS0055 feeds Line 2 in a Powerlock-compatible single pole set built on 185mm² copper cable. It is the white, L2-keyed source: a 500A connector with a crimped male contact that plugs into the matching Line 2 drain and locks.

Key Features

• White source connector, Line 2 (L2) key
• Male crimp contact within a female insulator
• 500A Powerlock-compatible single pole connector
• Made for 185mm² copper cable
• 22–32mm cable OD, M40B gland
• 1000V AC operating voltage
• Short circuit rating: up to 35.5kA. Surge current: 75kA
• Finger-proof to IP2X when apart; IP67 when mated
• Flame retardant UL94-V0 thermoplastic shell
• Silver plated contact; mating life over 500 cycles

Add to cart today for fast delivery throughout Australia.

Getting Line 2 to the Load

Source and drain as a pair
Every Powersafe line is made up of a source and a drain. The SLS0055 is the source half for Line 2 and its natural partner is the Powersafe Line 2 drain, such as a 185mm² line drain on the next lead or a panel drain on equipment. The L2 key means no other line will accept it.

Safety at the live end
Sources are usually the live end, so the male contact on the SLS0055 is enclosed by its insulator and cannot be touched by a finger (IP2X) while disconnected. On mating, the secondary lock engages; it takes a release key to separate the connectors, and the mated joint is IP67 rated.

Termination data

• Conductor strip length: 43mm
• Crimp die: ME 37 hexagonal
• Crimp tool: hydraulic, HT 131-C (hand) or B 131-C (14.4V cordless)
• Crimps: three, equidistant
• Gland body and dome nut torque: 11 Nm

Copper conductors only. Phase 3 limits installation, inspection and maintenance to qualified electricians, in accordance with local and national electrical codes, and calls for a cable tensile test on the crimp.

Q: What is the Powersafe SLS0055 used with?
A: A Powersafe Line 2 drain connector, line or panel mount. Together they make one Line 2 connection.

Q: How many amps is the SLS0055 rated for?
A: 500A. Phase 3 supplies 500A connectors for cable up to 185mm², with the continuous rating subject to cable choice and environmental factors.

Q: Does the SLS0055 need special tools?
A: It needs a hydraulic crimp tool and the ME 37 hexagonal die for the 185mm² contact. The rest of the assembly uses no special tools.
