Powersafe SLS0051 Line Source 500A 185mm2 Crimp 22-32mm Red Line 1 IP67

Description

Line 1 supply end for 185mm² cable.

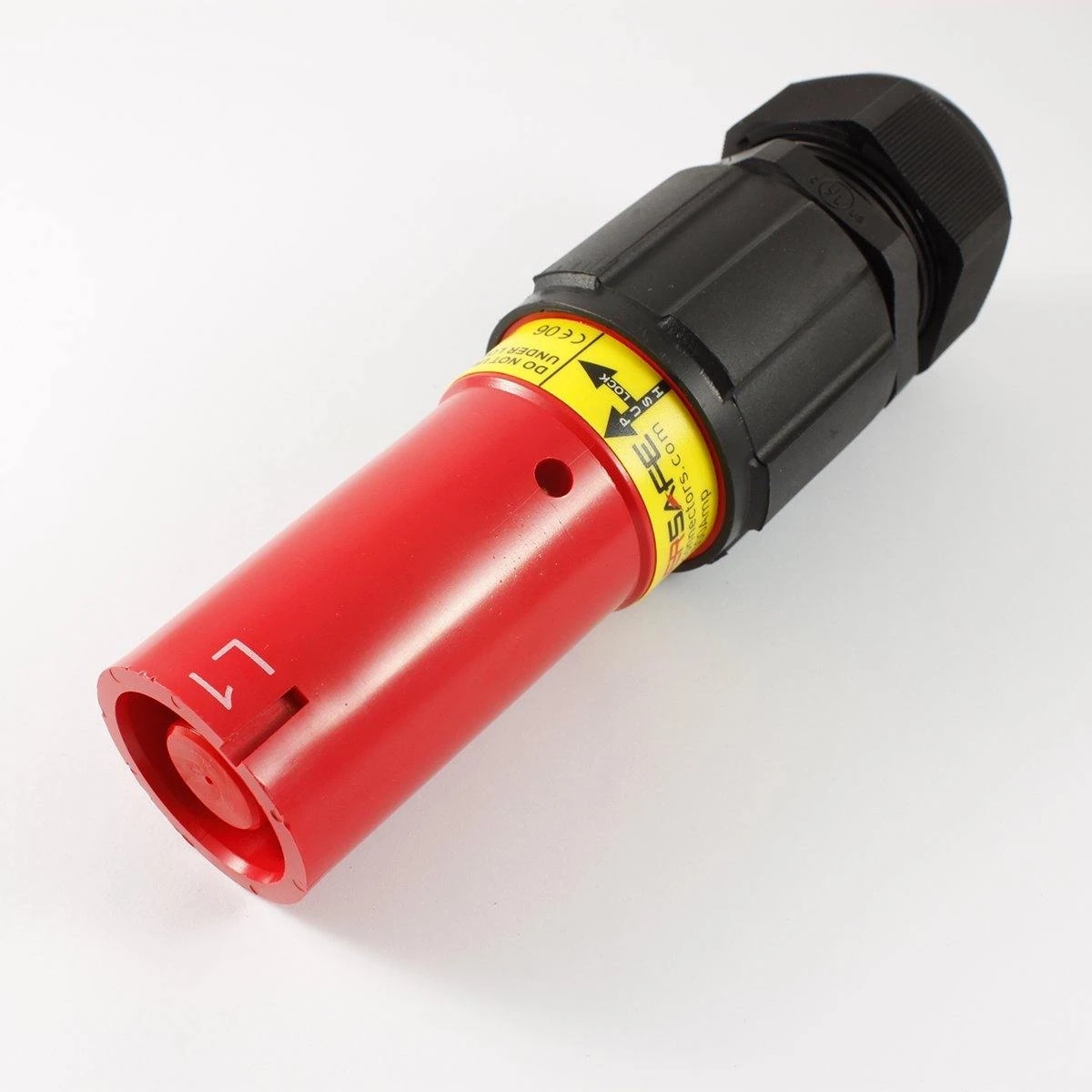

The Powersafe SLS0051 is a red Line 1 source connector with a crimp contact for 185mm² copper cable. Part of a Powerlock-compatible single pole system rated 500A, it delivers the first phase through a shielded male contact and an L1-keyed, locking coupling.

Key Features

• Source connector keyed to Line 1 (L1), red
• Shielded male contact inside a female insulator
• Powerlock-compatible, 500A
• Crimp termination, 185mm² copper cable
• M40B gland clamps 22–32mm cable
• Operating voltage rating of 1000V AC
• Surge current of 75kA; 35.5kA maximum short circuit rating
• IP67 rated when mated; IP2X finger-proof uncoupled
• Body in UL94-V0 thermoplastic, high temperature grade
• Silver plated contact with a life of over 500 mating cycles

Grab yours online, with quick dispatch around Australia.

A Phase Source You Can Trust on Site

Key first, colour second
Red identifies this connector at a glance, and the L1 mechanical key enforces it. The SLS0051 will only go into a Powersafe Line 1 drain, line or panel mounted, so phases stay in order no matter who plugs the set up. Once seated, a secondary lock secures the coupling and a release key is required to free it.

Designed to be the live end
According to Phase 3, the source is usually the live end of a Powersafe connection and the drain usually is not. That is the reason its male contact is set back behind a female insulator, where it stays IP2X finger-proof while unplugged. The mated connection is IP67 rated.

Crimp termination on 185mm²

• Expose 43mm of conductor
• Fit the ME 37 hexagonal die to a hydraulic crimper (the manual HT 131-C, or the cordless B 131-C)
• Apply three crimps, evenly spaced along the contact
• Tighten gland body and dome nut: 11 Nm

For copper conductors only. Phase 3 requires qualified electricians for installation, inspection and maintenance, to local and national electrical codes, and says a cable tensile test should confirm the crimp.

Q: Which phase does the red Powersafe SLS0051 carry?
A: Line 1. It is keyed to L1 and mates only with a Powersafe L1 drain connector.

Q: Is the SLS0051 a source or drain connector?
A: A source. The contact is male and the insulator female, and this half is normally the live one.

Q: What crimp tooling does the SLS0051 need?
A: An ME 37 hexagonal die in a hydraulic crimp tool. Phase 3 names the HT 131-C and B 131-C, and specifies three crimps for a 185mm² contact.
